8.2.1.3 Application Curves

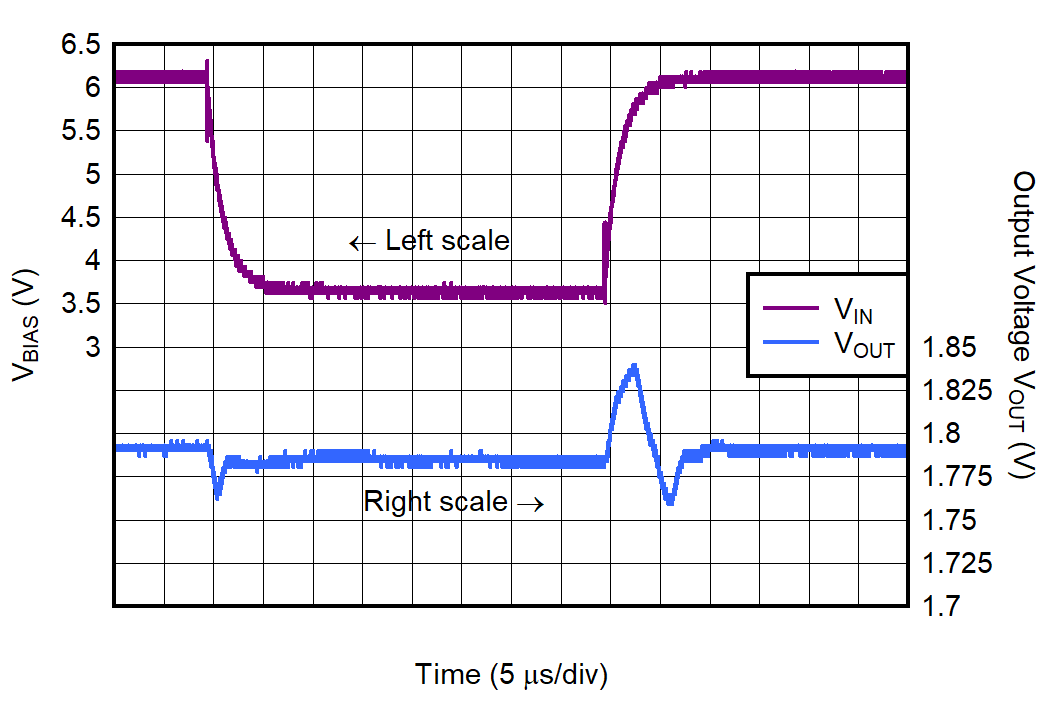

| CIN = COUT = 10 μF, CBIAS = 1 μF, VIN = 2.1 V, VBIAS = 6 V to 3.5 V to 6 V, IOUT = 1.5 A |

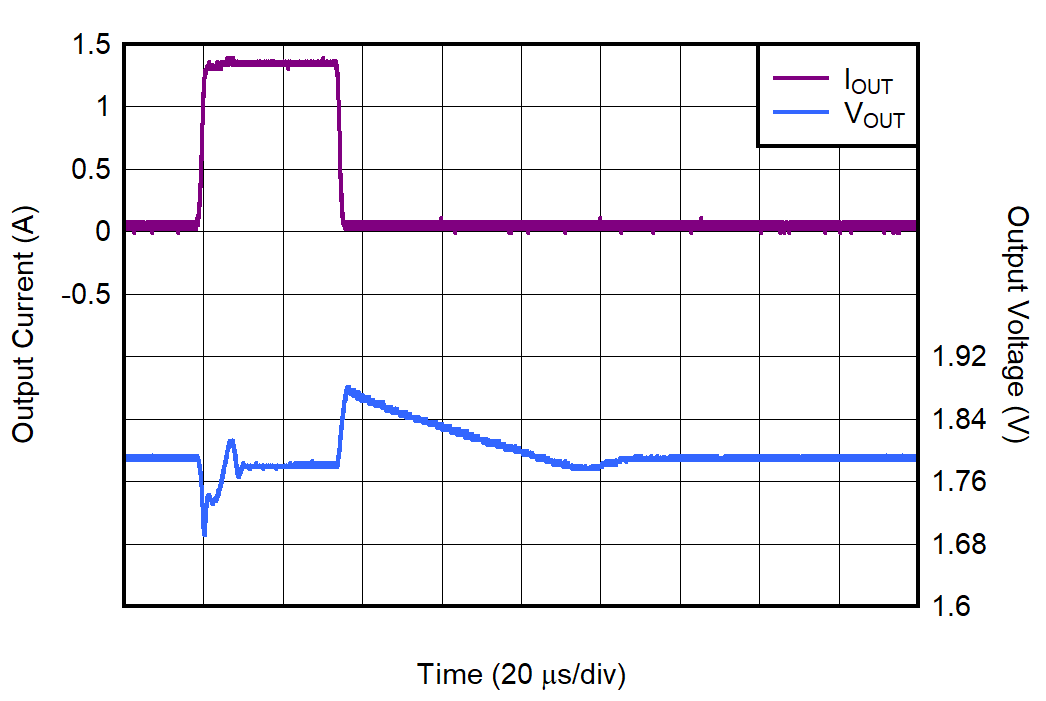

| CIN = COUT = 10 μF, CBIAS = 1 μF, VBIAS = 5 V, VIN = 2.1 V, IOUT = 10 mA to 1.5 A to 10 mA |

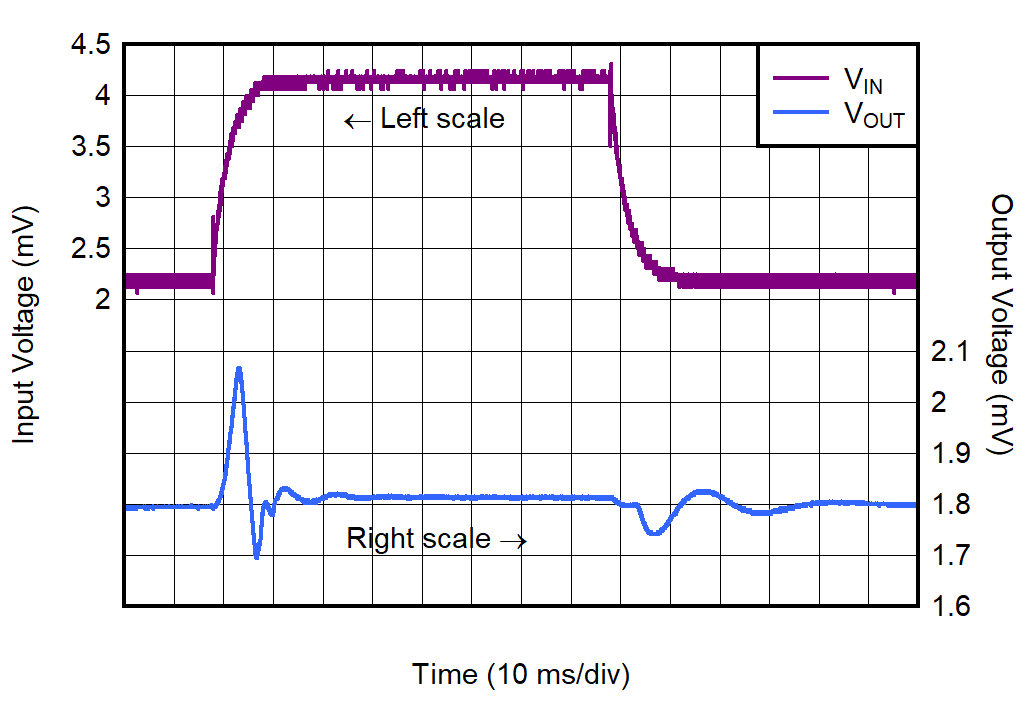

| CIN = COUT = 10 μF, CBIAS = 1 μF, VBIAS = 5 V, VIN = 2.1 V to 4.1 V to 2.1 V, IOUT = 1.5 A |
| CIN = COUT = 10 μF, CBIAS = 1 μF, VBIAS = 5 V, VIN = 2.1 V, IOUT = 0 mA |
