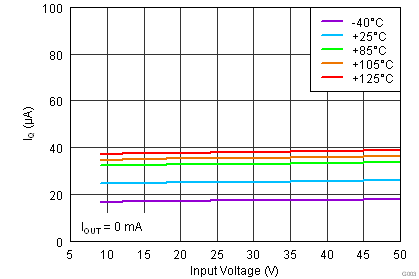

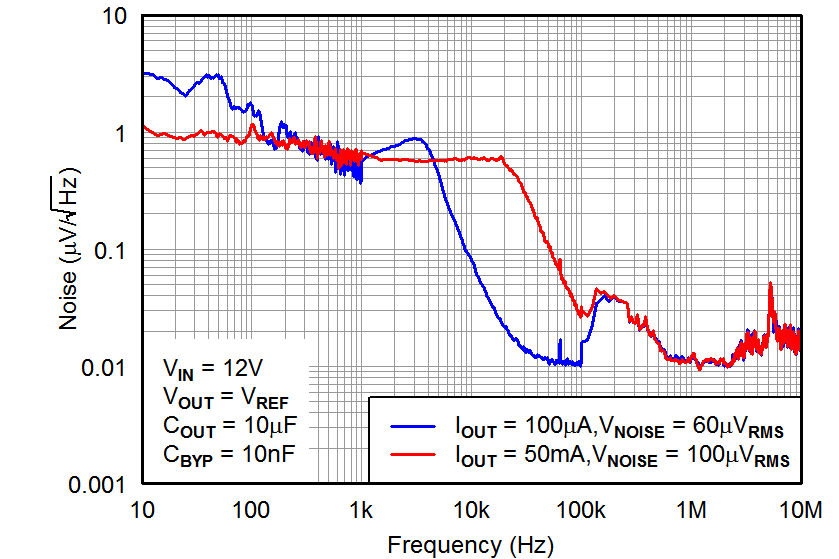

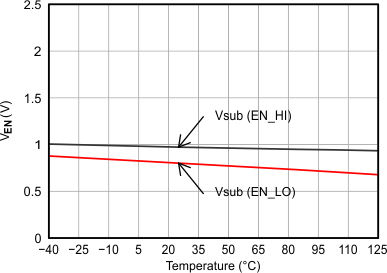

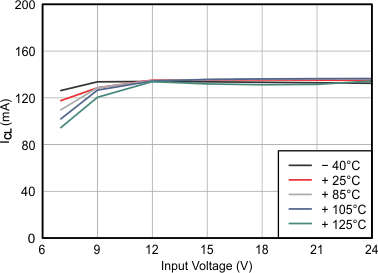

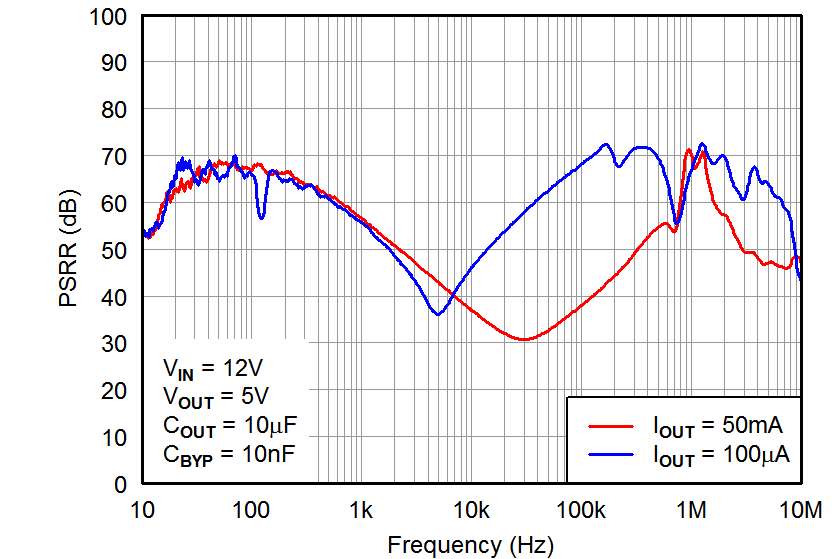

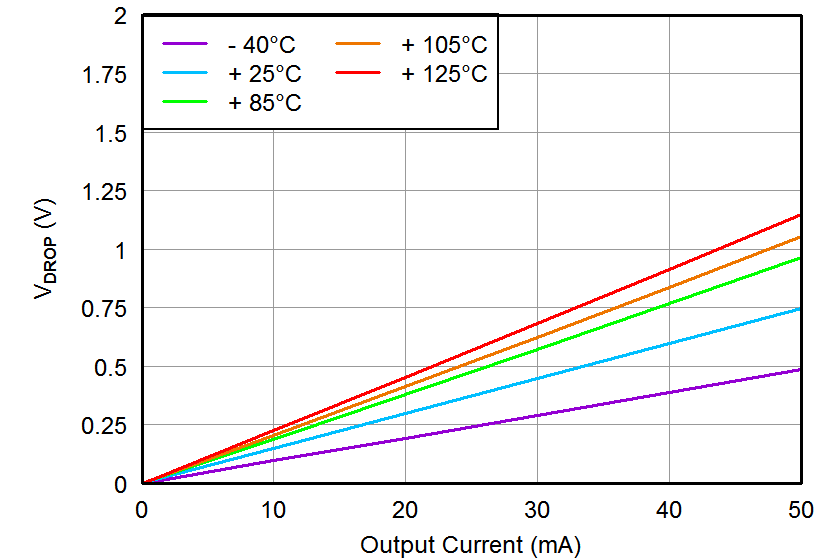

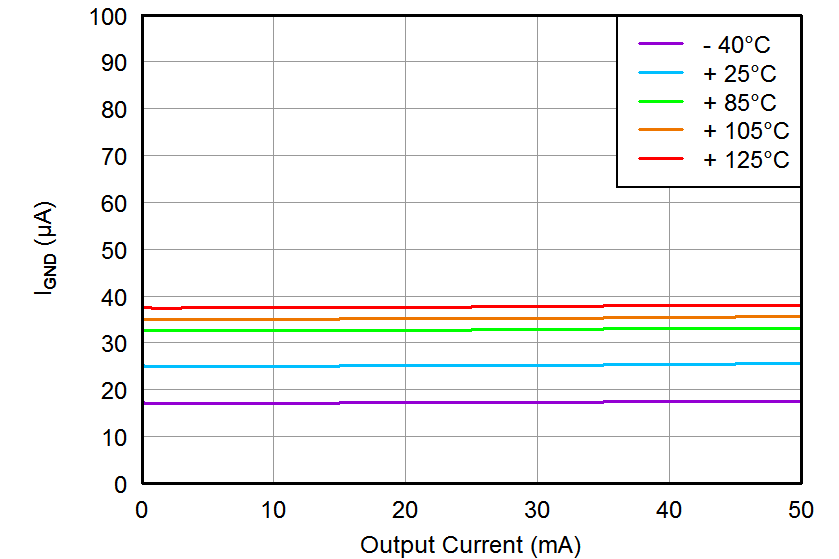

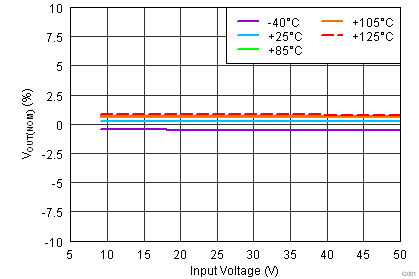

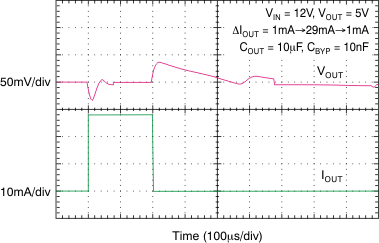

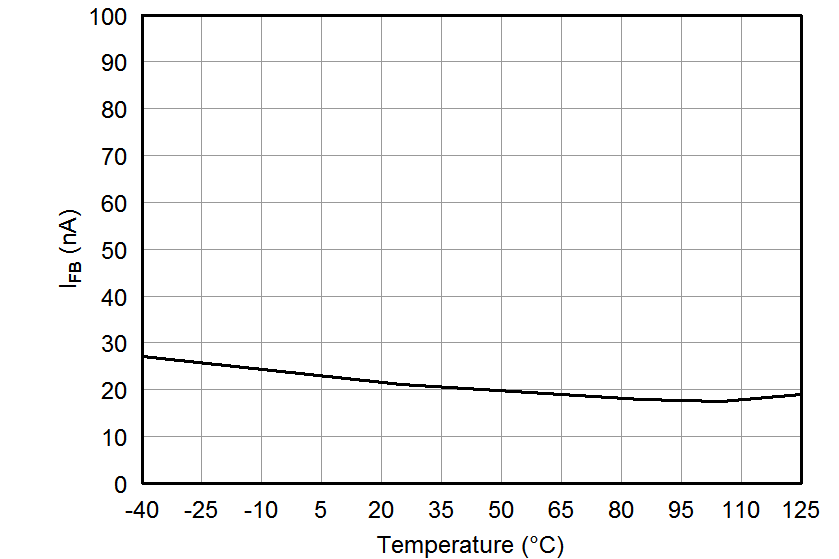

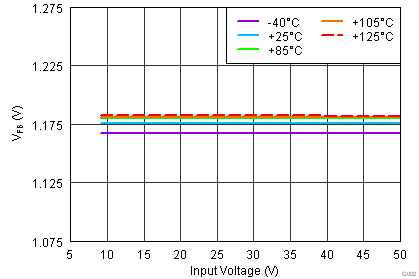

6.6 Typical Characteristics
at TJ = –40°C to 125°C, VIN = VOUT(NOM) + 2 V or VIN = 9 V (whichever is greater), VEN = VIN, IOUT = 100 µA, CIN = 1 µF, COUT = 4.7 µF, and FB tied to OUT (unless otherwise noted)
