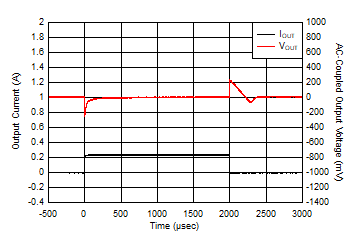

9.2.3 Application Curve
| IOUT = 1 mA to 0.22 A, slew rate = 0.5 A/μs, VOUT = 5 V, VIN = 8.4 V, CIN = 1 μF, COUT = 1 μF, CFF = 0 μF |
