8.2.1.2.1 Adjustable Voltage Operation

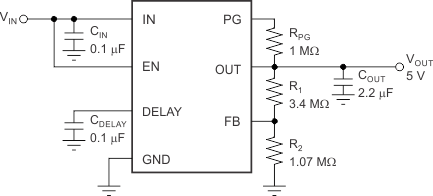

The TPS7A16A has an output voltage range from 1.194 V to 20 V. As shown in Figure 8-2, the nominal output of the device is set by two external resistors.
Figure 8-2 Adjustable OperationEquation 1 can calculate R1 and R2 for any output voltage range:
Equation 1.
