10.1.1 PCB Layout Considerations

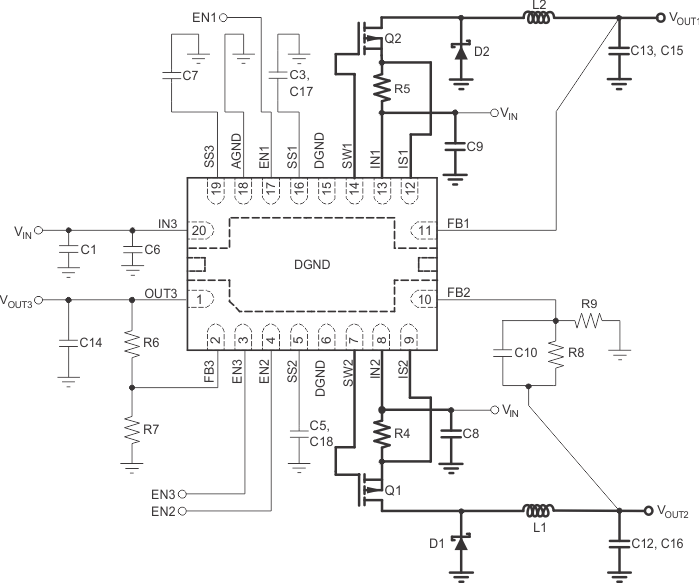

As with any switching regulators, careful attention must be paid to board layout. A typical application circuit and corresponding recommended printed circuit board (PCB) layout with emphasis on the most sensitive areas are shown in Figure 26 through Figure 28.
NOTE:
Most sensitive areas are highlighted by bold lines.
