ZHCSR36A December 2022 – October 2025 TPS748A
PRODUCTION DATA
5.6 典型特性：IOUT = 50mA
條件為：TJ = 25°C，VIN = VOUT(nom) + 0.3V，VBIAS = 5V，IOUT = 50mA，VEN = VIN，CIN = 1μF，CBIAS = 4.7μF 且 COUT = 10μF（除非另有說明）

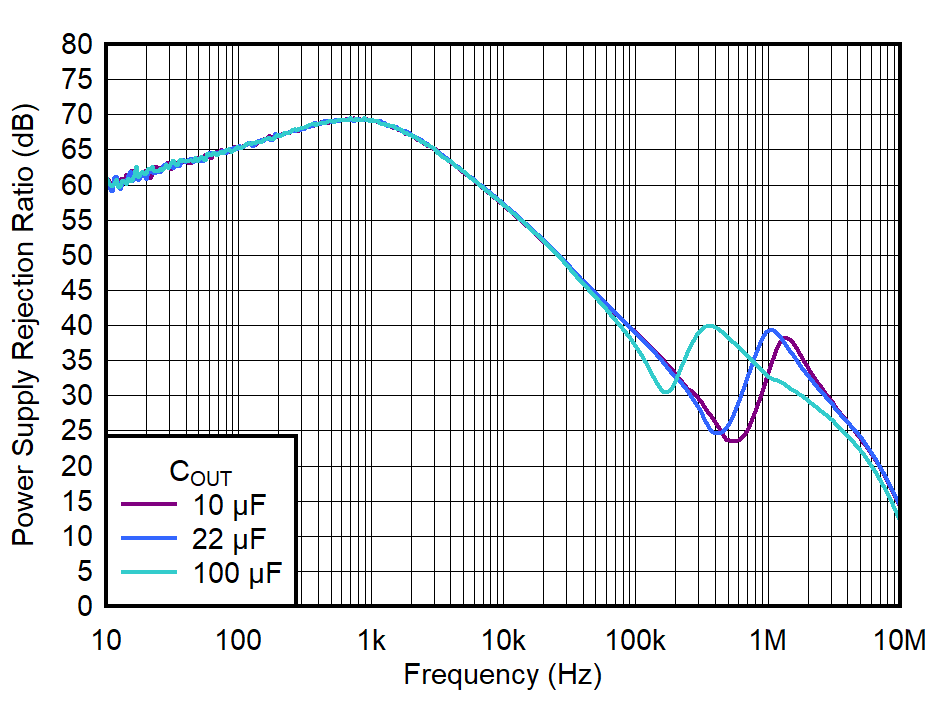

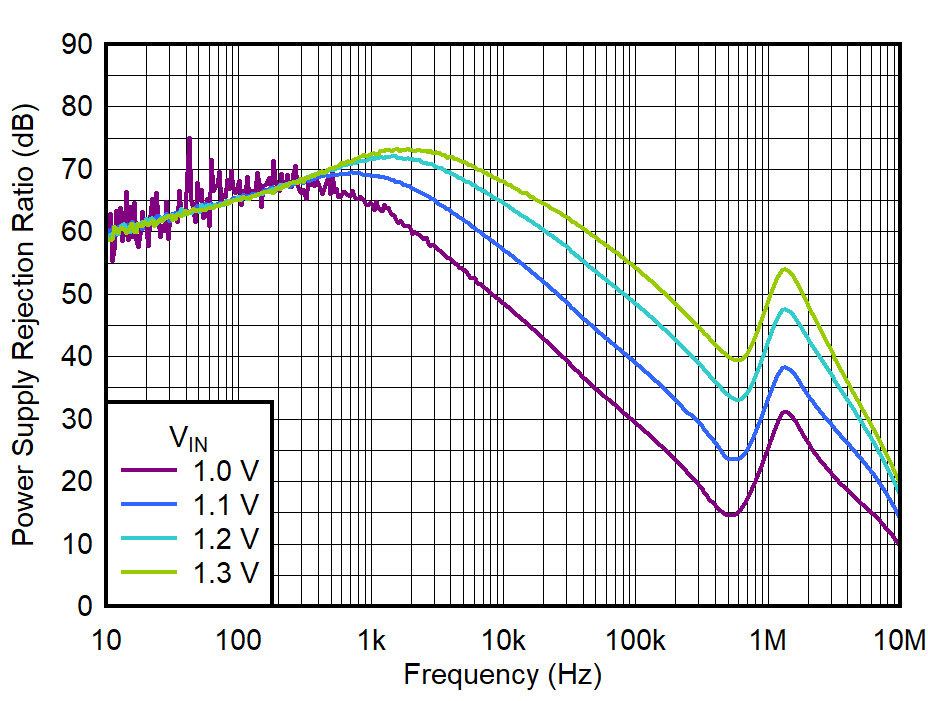

| VOUT = 0.8V，IOUT = 1.5A，CBIAS = 0.1μF，COUT = 10μF， CSS = 10nF，VEN = VBIAS = 6V |

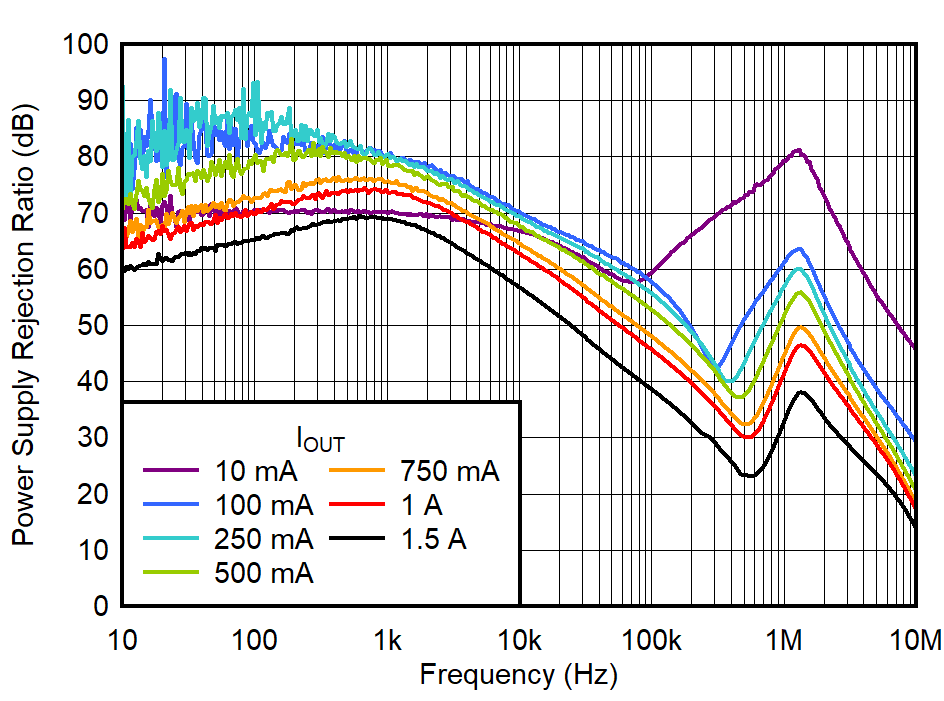

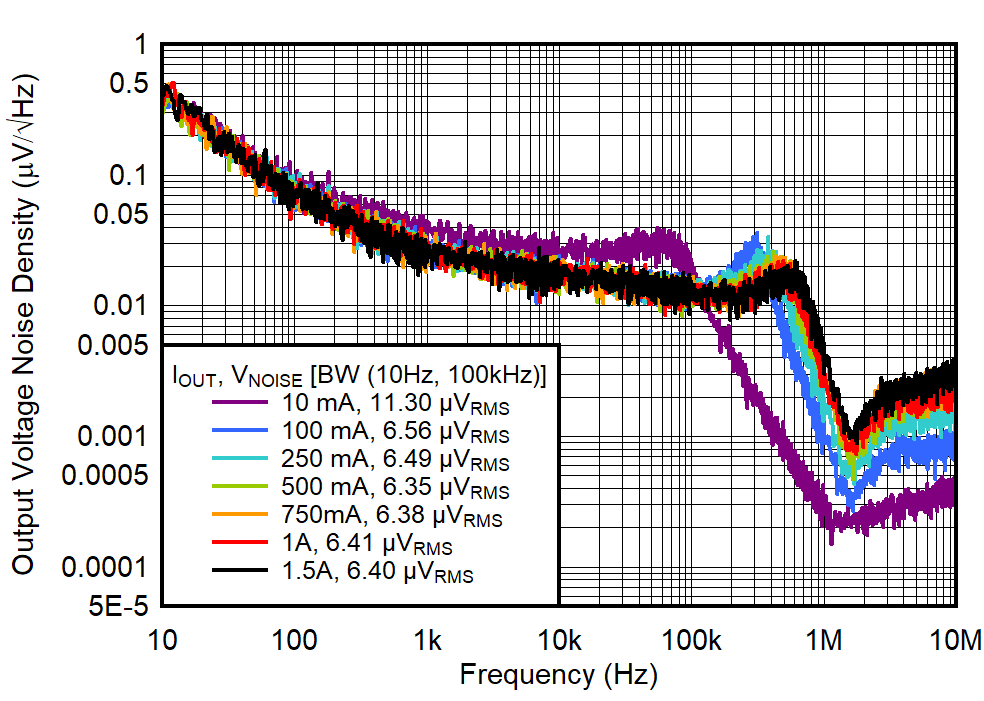

| VIN = 1.1V， VOUT = 0.8V，CBIAS = 0.1μF，COUT = 10μF， CSS = 10nF，VEN = VBIAS = 6V |

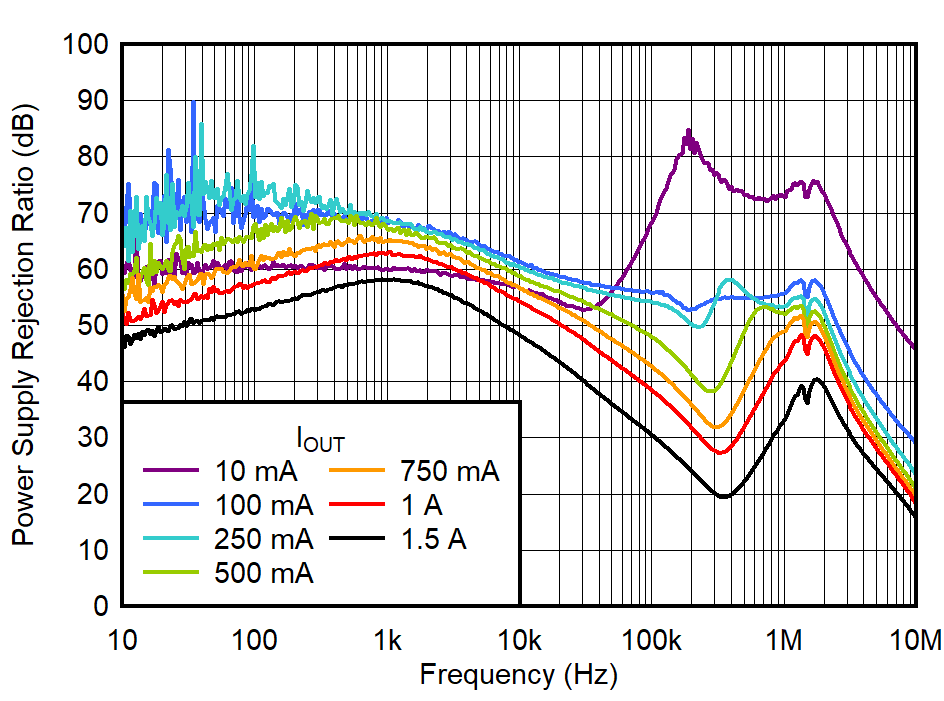

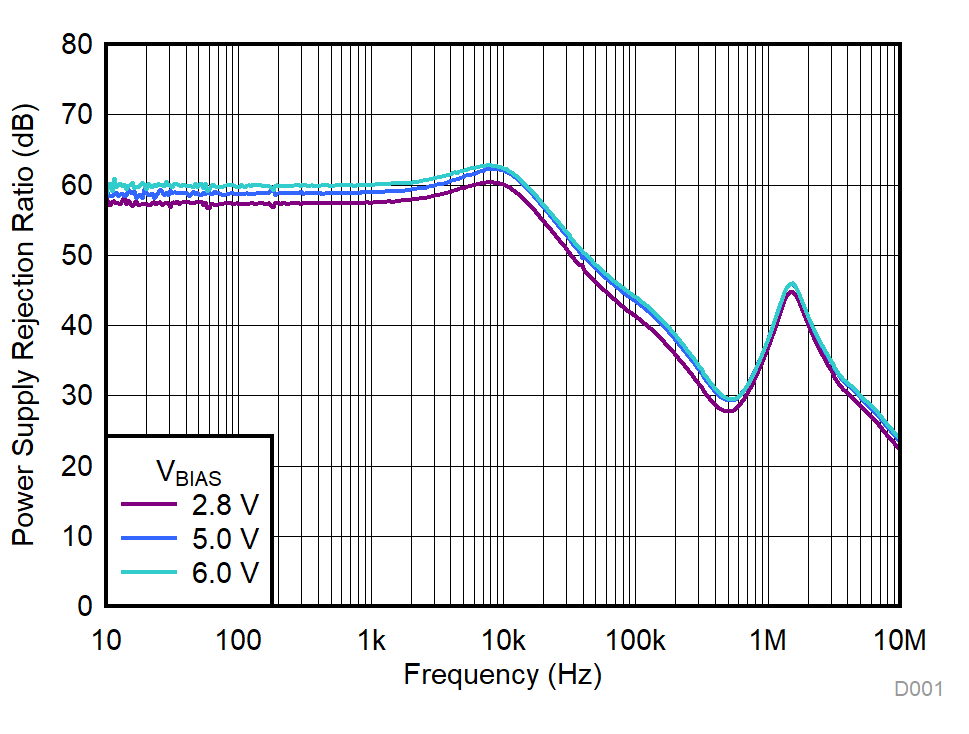

| VIN = 3.6V， VOUT = 3.3V，CBIAS = 0.1μF，COUT = 10μF， CSS = 10nF，VEN = VBIAS = 6V |
| VIN = 1.1V，VOUT = 0.8V，IOUT = 1.5A，CIN = 10μF， COUT = 10μF，CSS = 10nF，VEN = 6V |
| VEN = VBIAS，VIN = 1.1V，VOUT = 0.8V，IOUT = 1.5A， CIN = 10μF，COUT = 10μF，CSS = 10nF，CBIAS = 0.1μF |

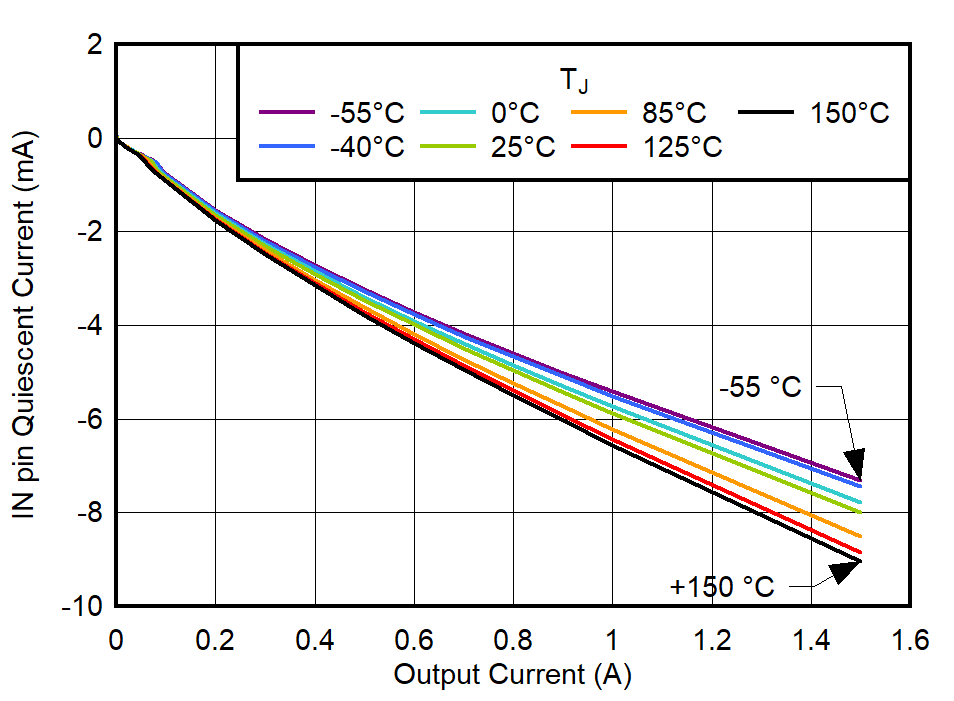

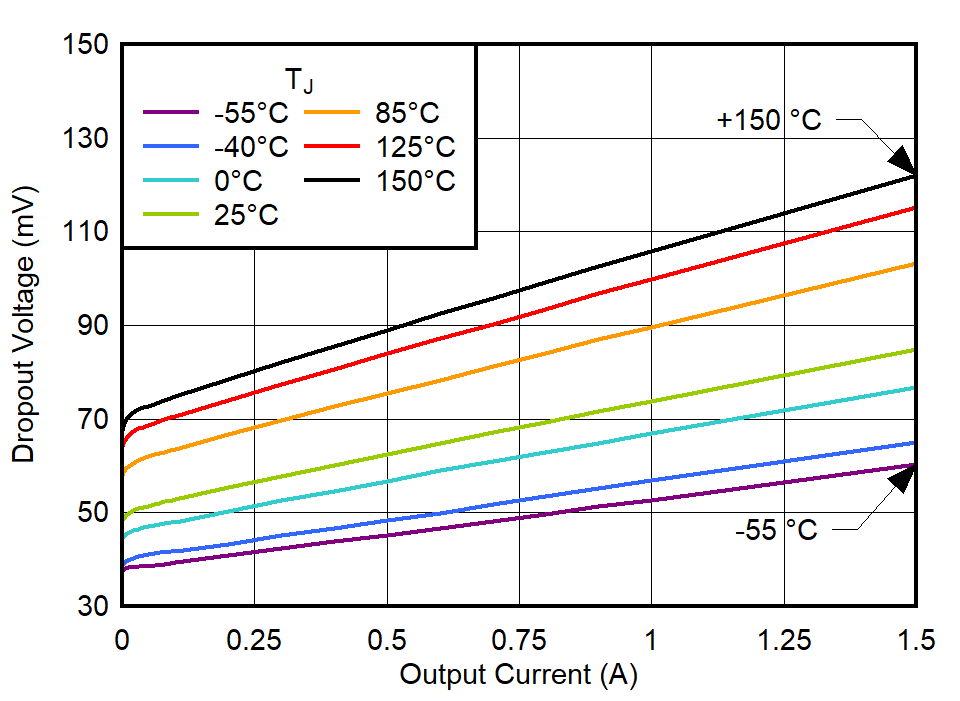

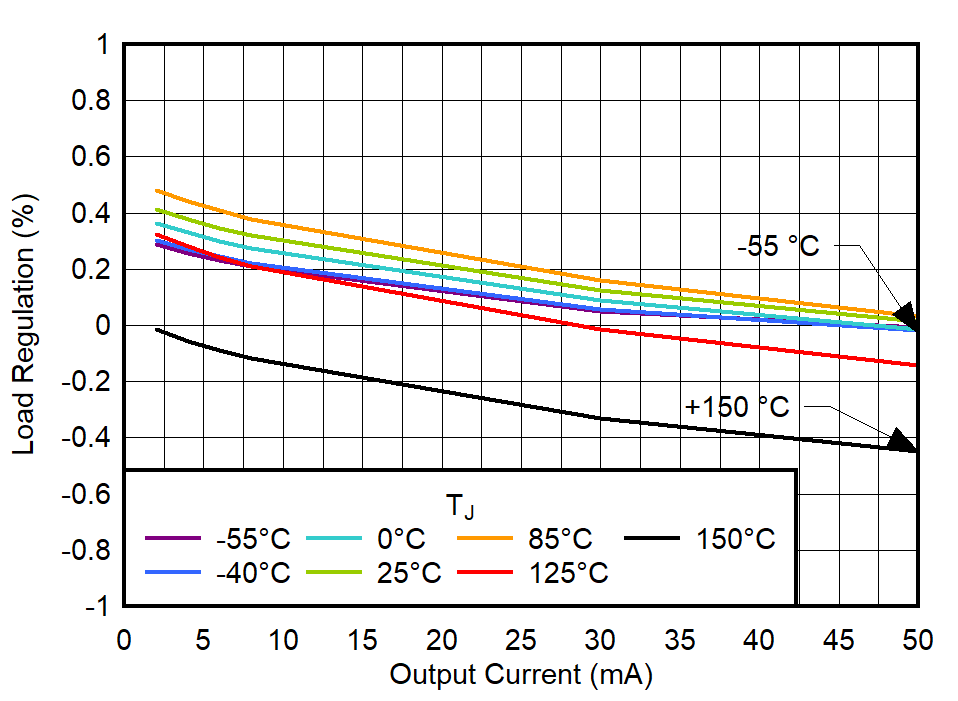

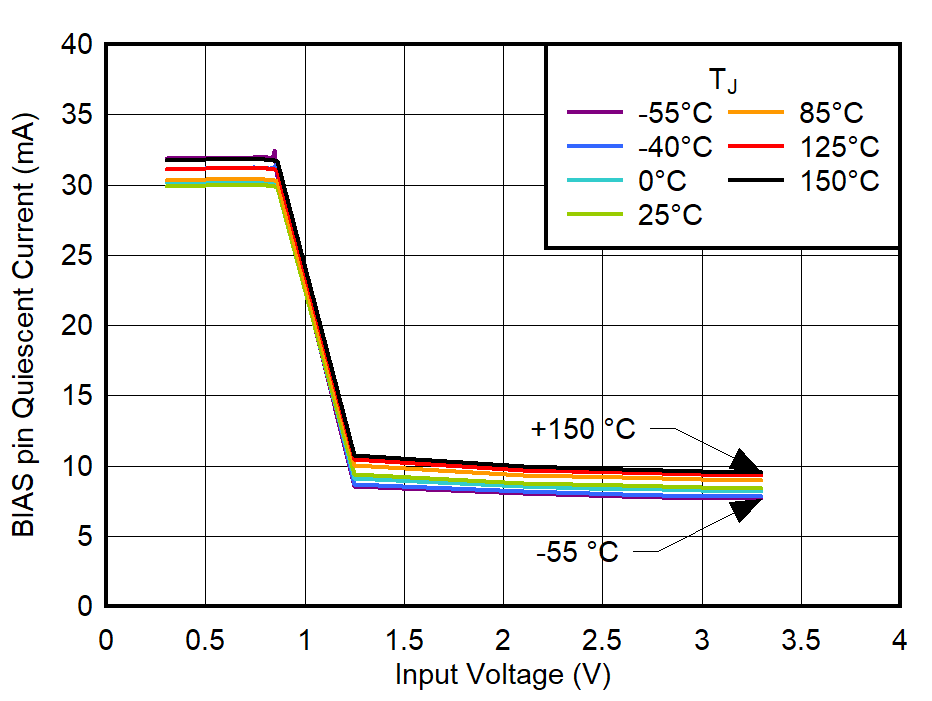

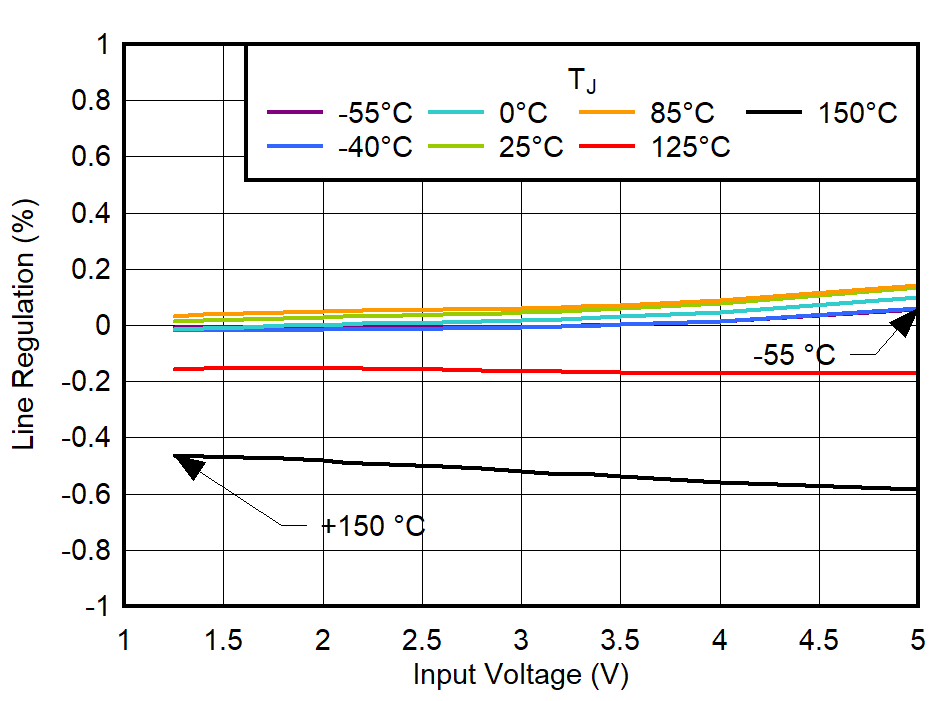

| VBIAS = 5V，VOUT = 0.8V |
| VIN = 1.1V，VBIAS = 5V，VOUT = 0.8V |
| VOUT = 0.8V，VBIAS = 5V，IOUT = 50mA |
| VOUT = 0.8V，VBIAS = 5.0V，IOUT = 50mA |
| VOUT = 0.8V，VBIAS = 5.0V，IOUT = 1.5A |

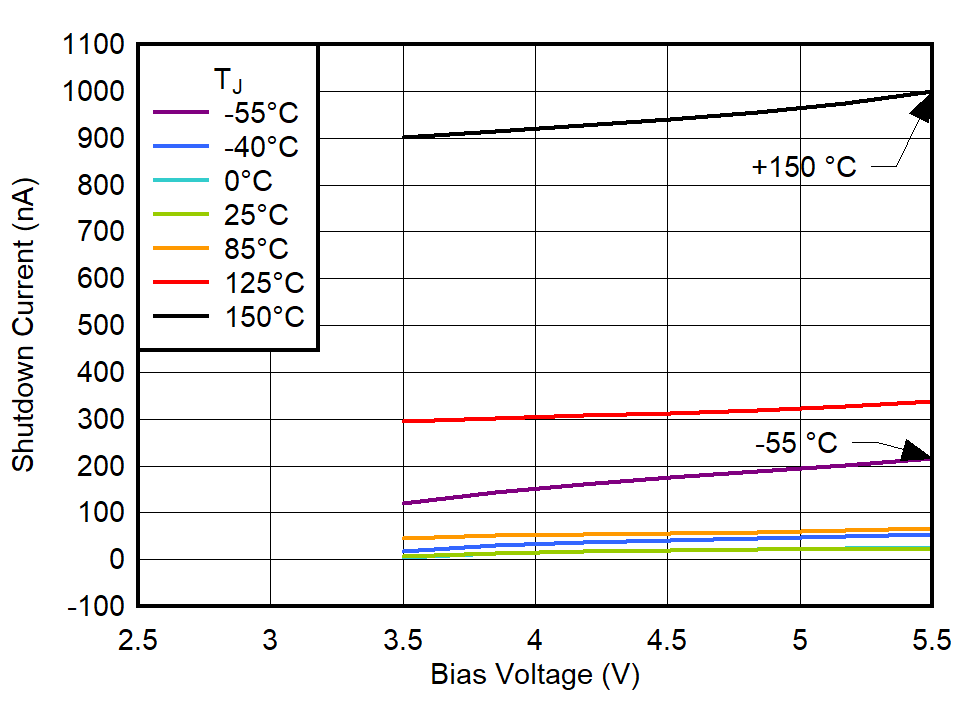

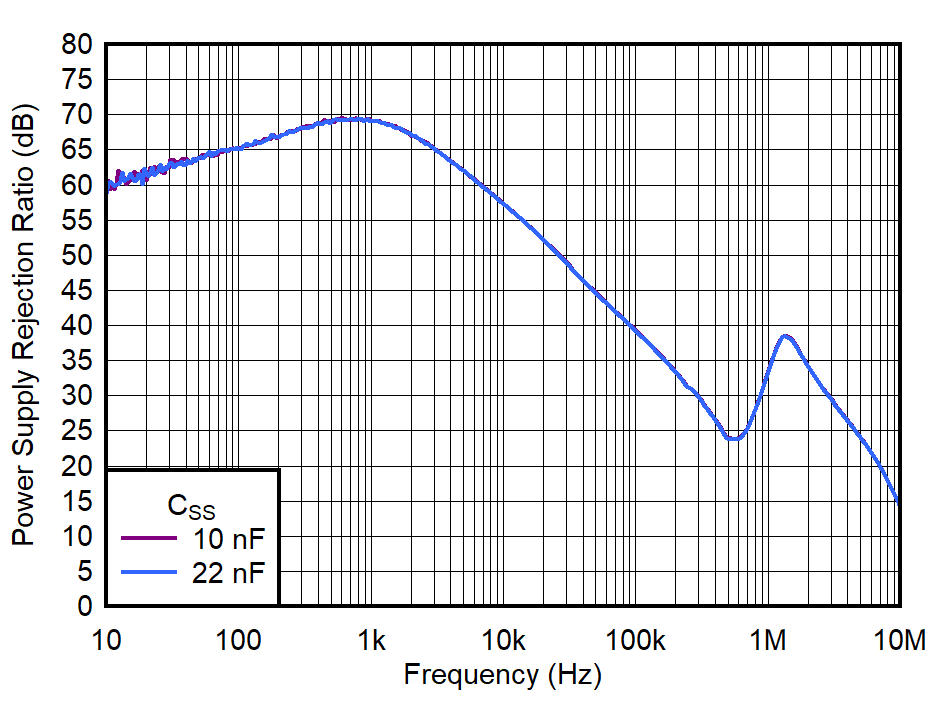

| VBIAS = 5V，VEN = 0V |
| VIN = 1.1V， VOUT = 0.8V，IOUT = 1.5A，CBIAS = 0.1μF， COUT = 10μF，VEN = VBIAS = 6V |

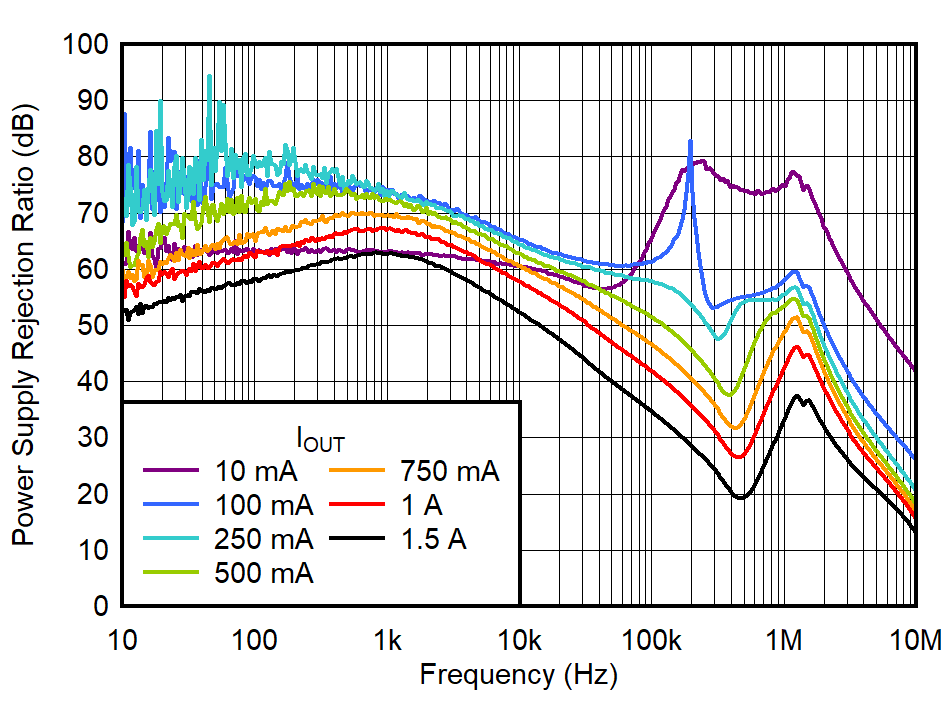

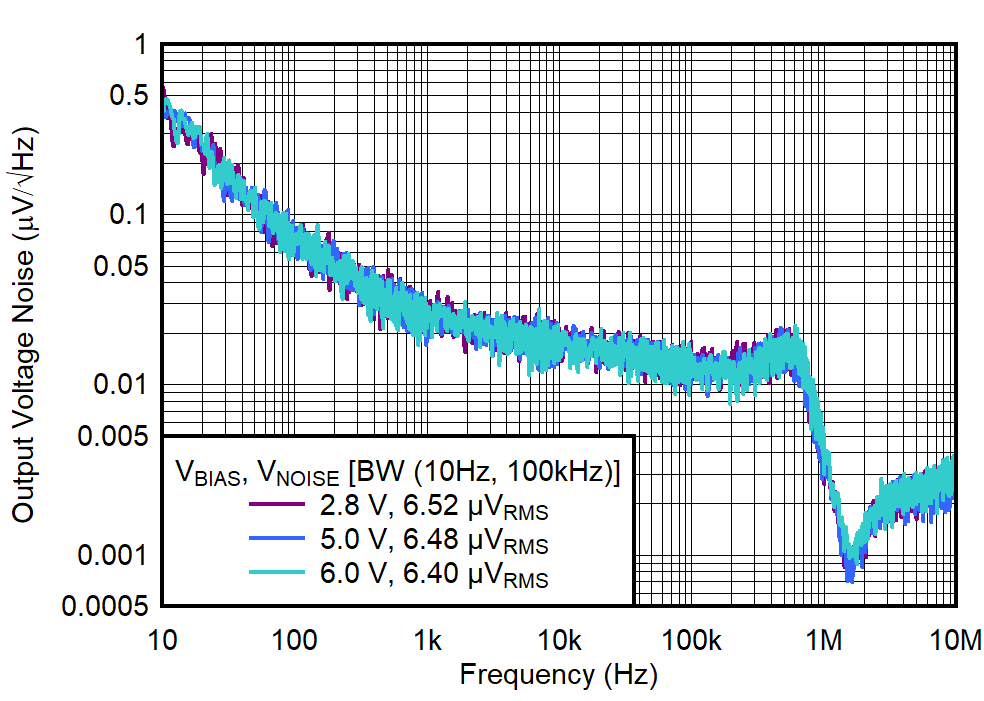

| VIN = 2.1V， VOUT = 1.8V，CBIAS = 0.1μF，COUT = 10μF， CSS = 10nF，VEN = VBIAS = 6V |
| VIN = 1.1V，VOUT = 0.8V，IOUT = 1.5A，CBIAS = 0.1μF， CSS = 10nF，VEN = VBIAS = 6V |
| VEN = VIN = 1.1V， VOUT = 0.8V，IOUT = 1.5A，CIN = 10μF，COUT = 10μF，CSS = 10nF，VBIAS = 6V |
| VEN = VBIAS，VIN = 1.1V，VOUT = 0.8V，CIN = 10μF， COUT = 10μF，CSS = 10nF，CBIAS = 0.1μF |

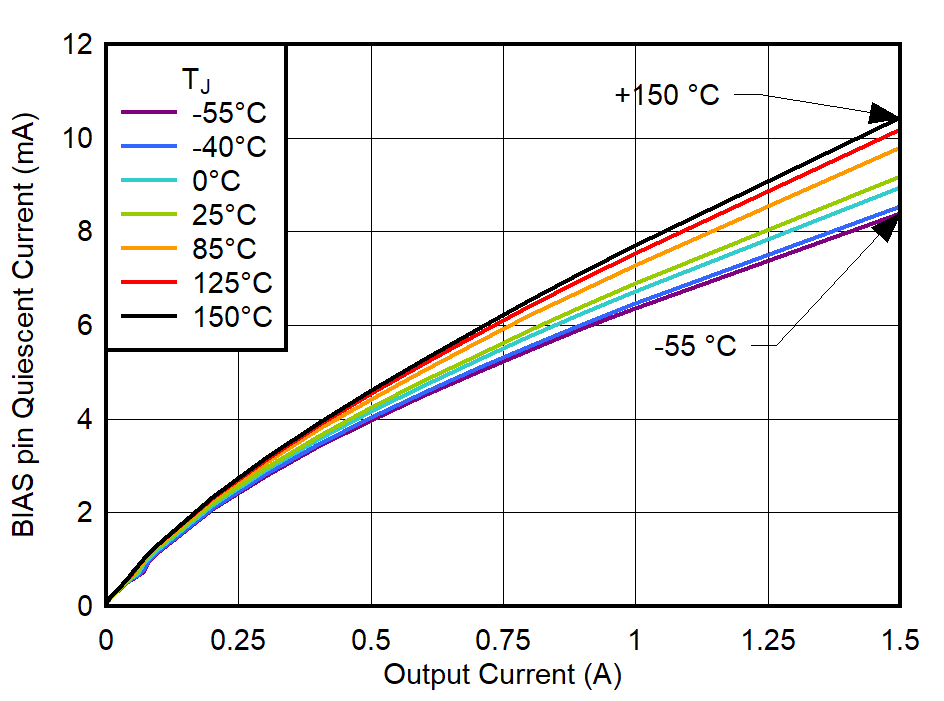

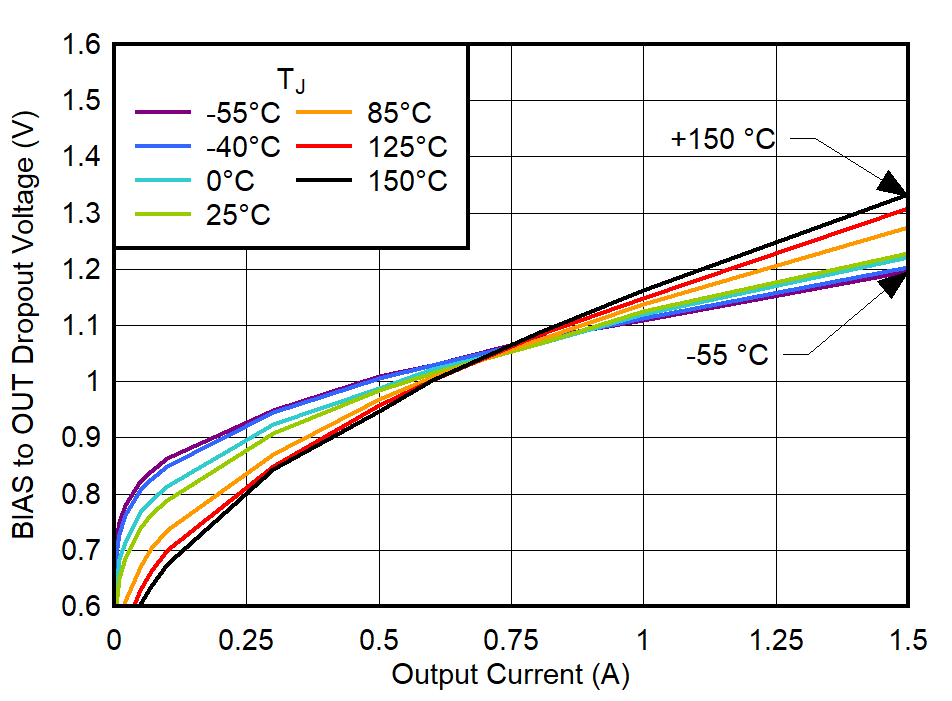

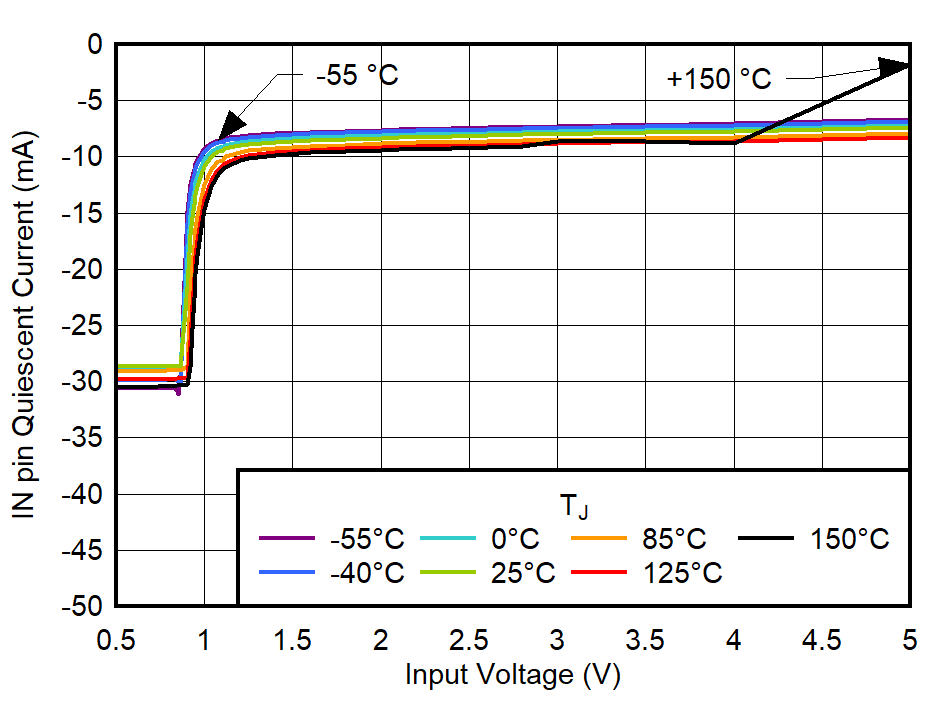

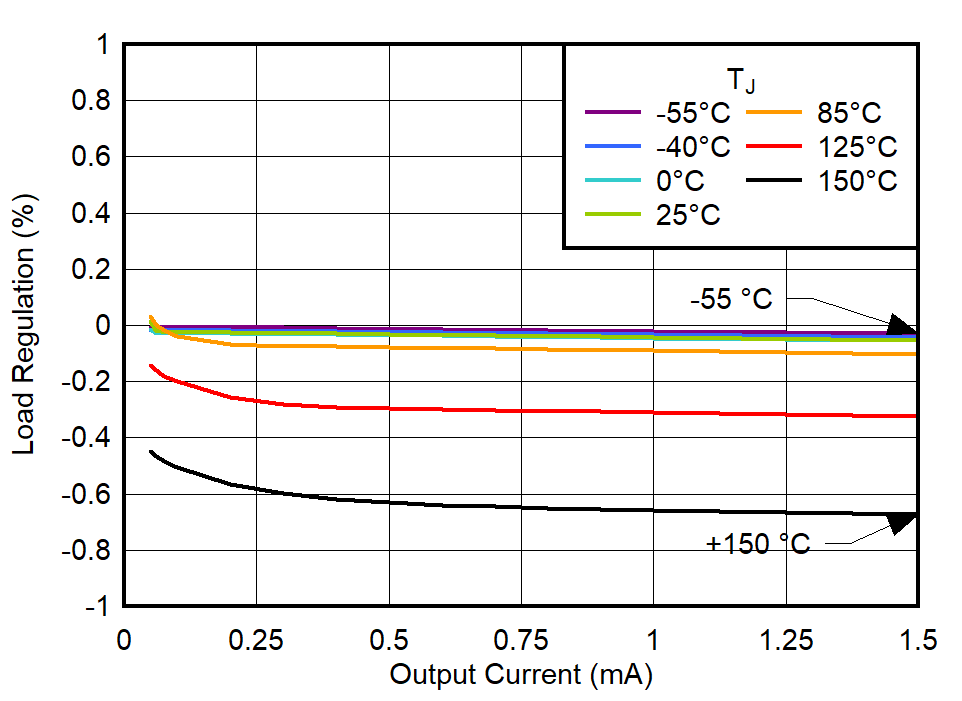

| VIN = 1.1V，VOUT = 0.8V |
| VIN = 1.1V，VBIAS = 5V，VOUT = 0.8V |
| VBIAS = 5V，VOUT = 0.8V，IOUT = 50mA |
| VOUT = 0.8V，VBIAS = 5.0V |
| VIN = 1.1V，VOUT = 0.8V，VBIAS = 5.0V |

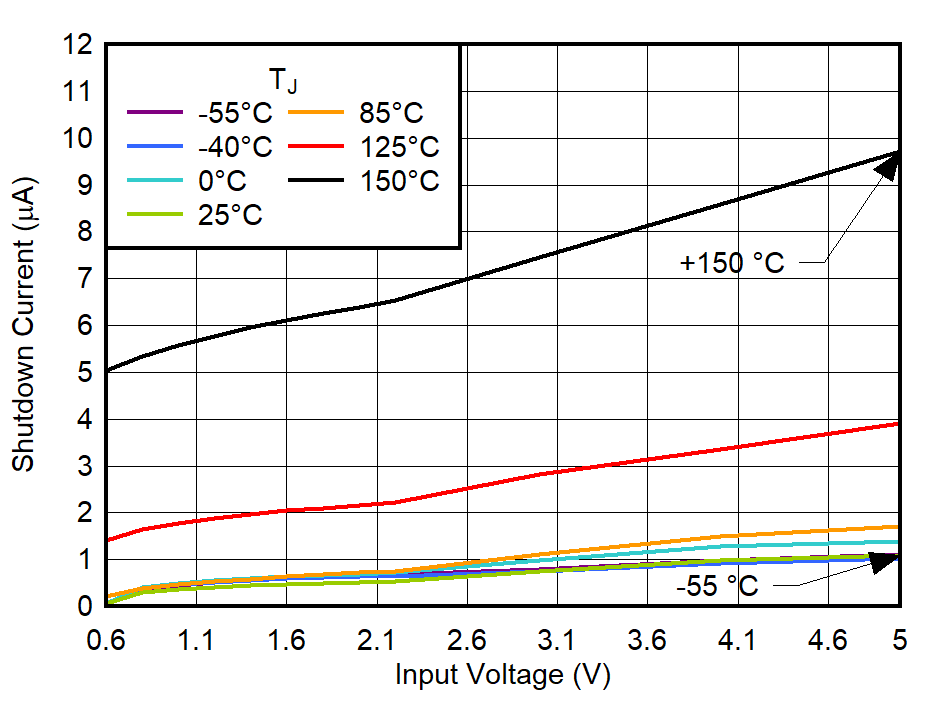

| VIN = 1.1V，VEN = 0V |
