8.2.3 Application Curves
| Iout = 3 A |
| Iout = 2 A |
| Iout = 2 A |

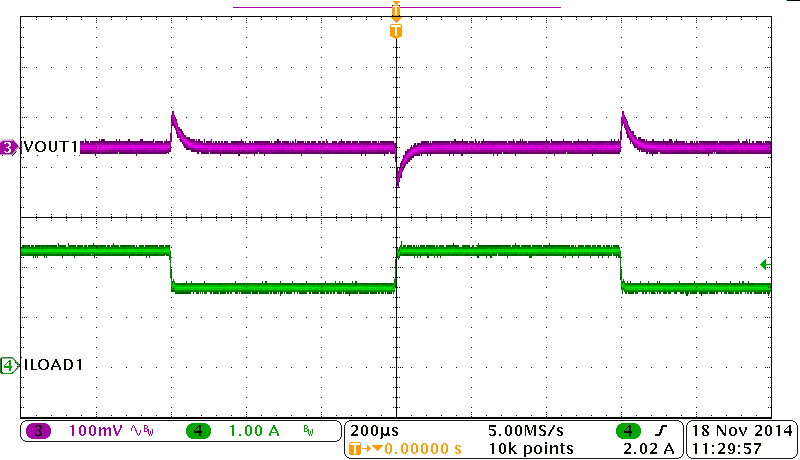

| 0.75 to 1.5 A | SR = 0.25 A/μs |

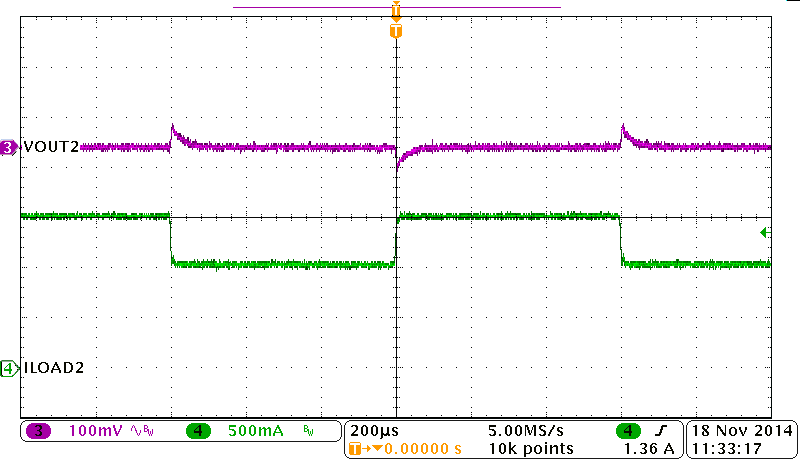

| 0.5 to 1.0 A | SR = 0.25 A/μs |

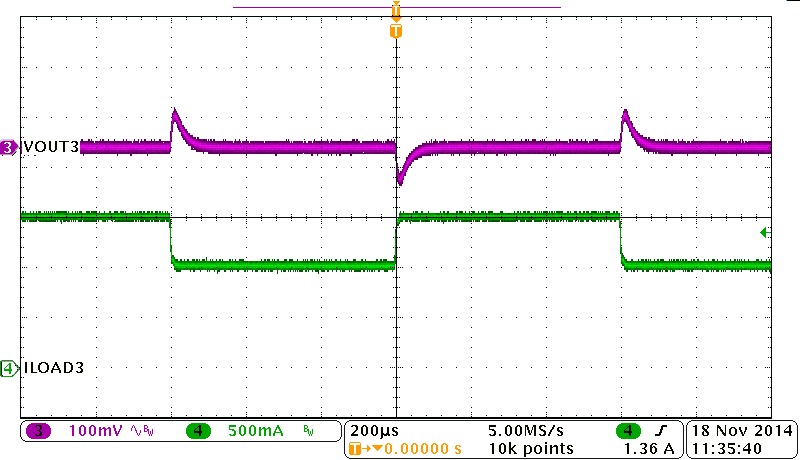

| 0.5 to 1.0 A | SR = 0.25 A/μs |

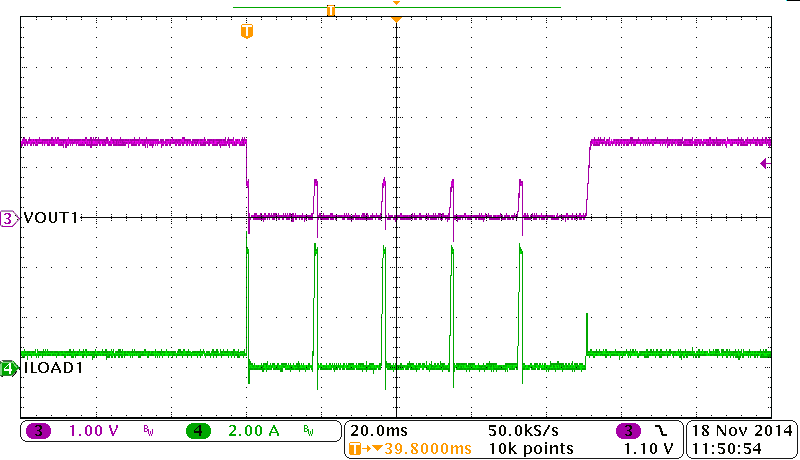

Figure 8-15 BUCK1, Hiccup and Recovery

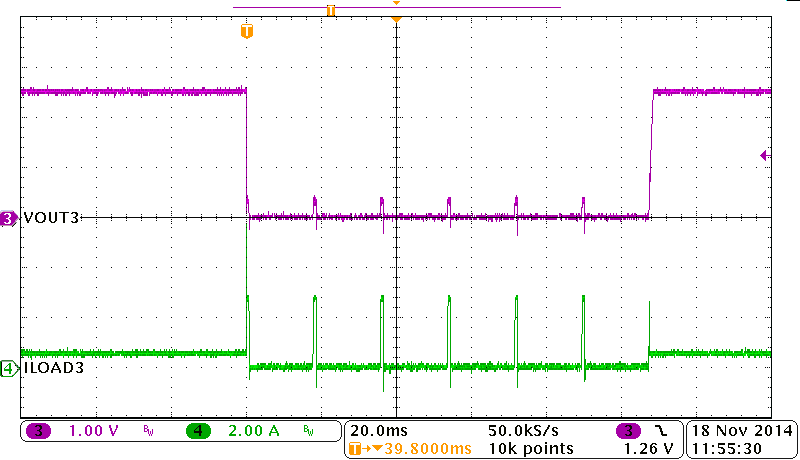

Figure 8-17 BUCK3, Hiccup and Recovery

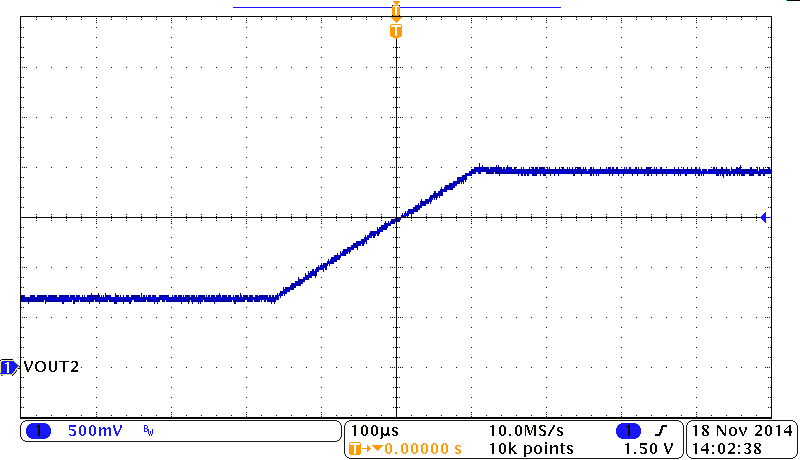

Figure 8-19 VID2
from 00 to 7F, SR = 10 mV/Cycle

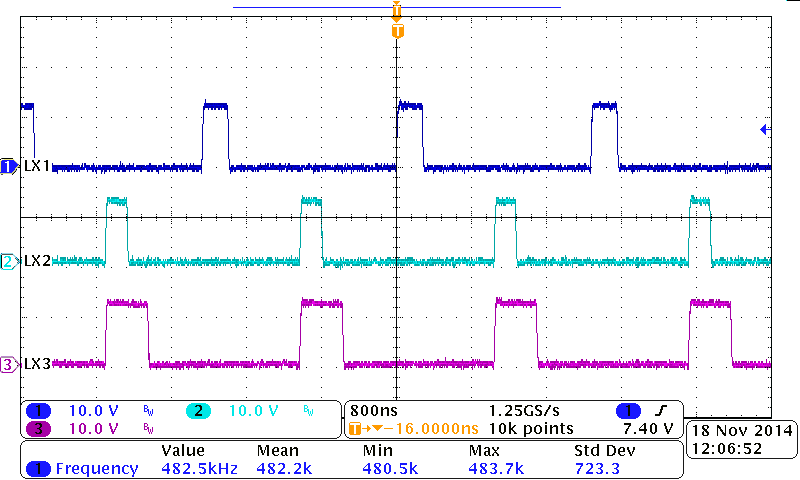

Figure 8-21 180°
Out-of-Phase

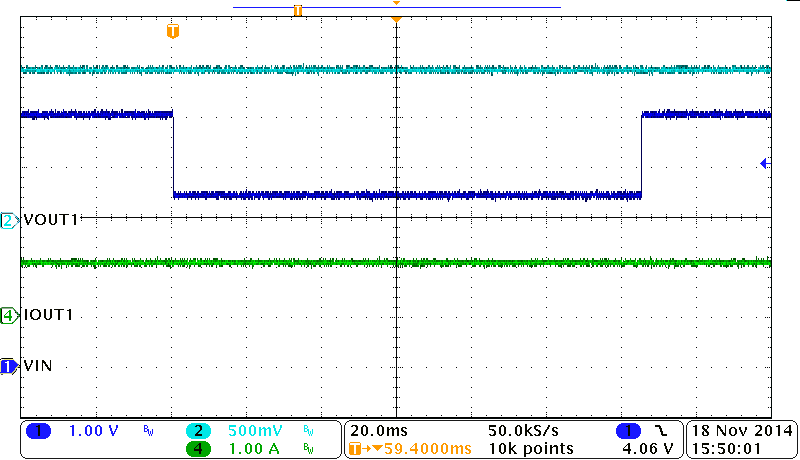

Figure 8-23 Operation at VIN Drop to 2.5 V
| Iout = 2 A |
A.

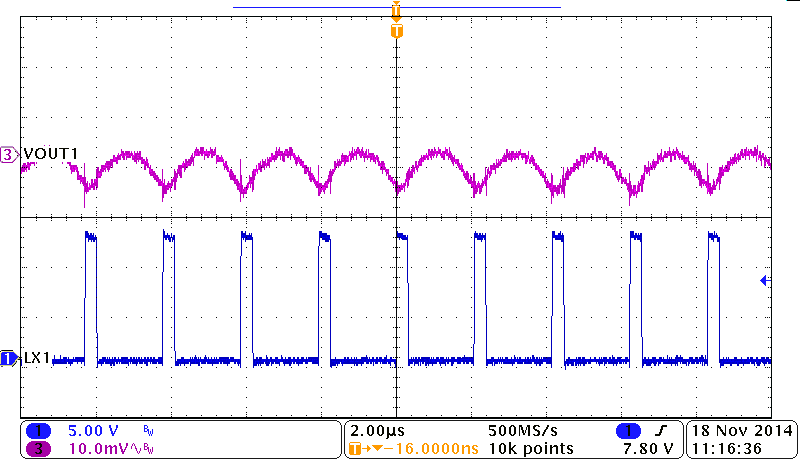

Figure 8-6 BUCK1, Output Voltage Ripple| Iout = 3 A |
| Iout = 2 A |

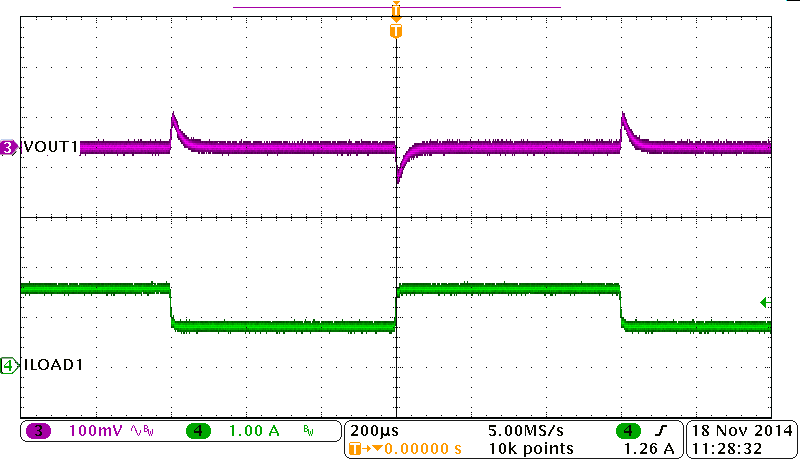

| 1.5 to 2.25 A | SR = 0.25 A/μs |
| 1.0 to 1.5 A | SR = 0.25 A/μs |
| 1.0 to 1.5 A | SR = 0.25 A/μs |

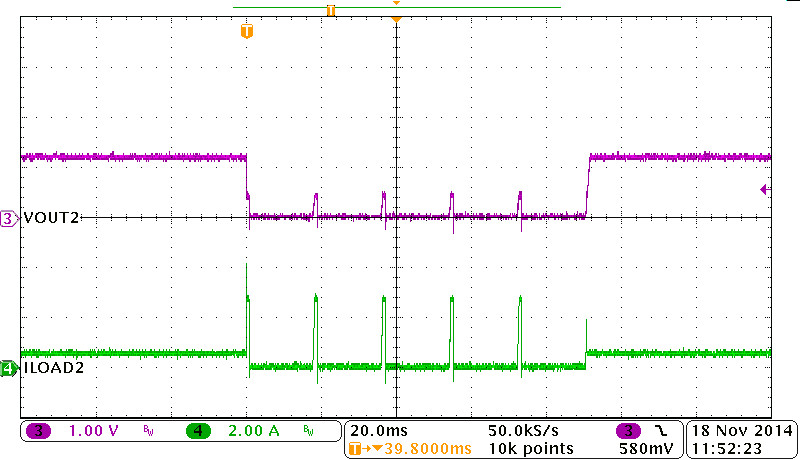

Figure 8-16 BUCK2, Hiccup and Recovery

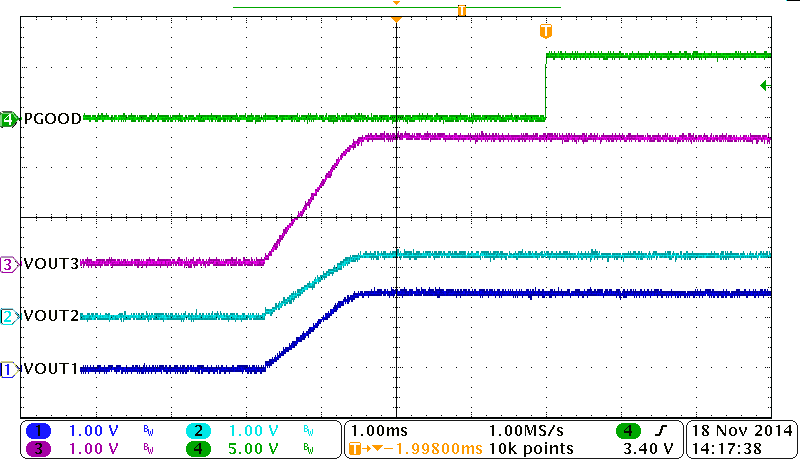

Figure 8-18 PGOOD

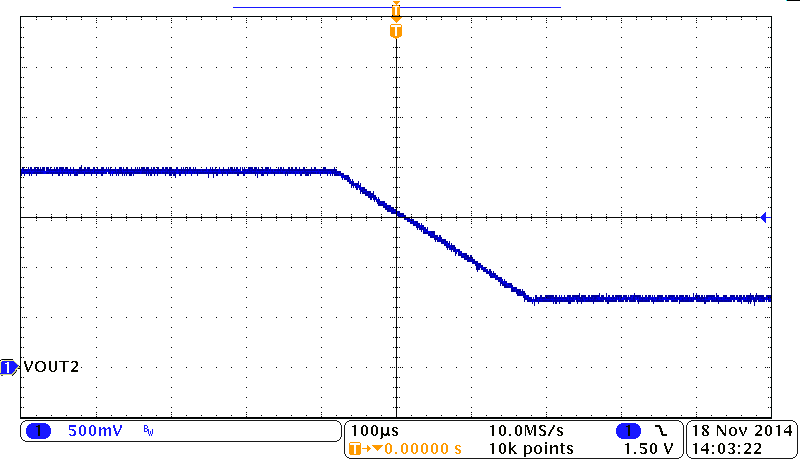

Figure 8-20 VID2
from 7F to 00, SR = 10 mV/Cycle

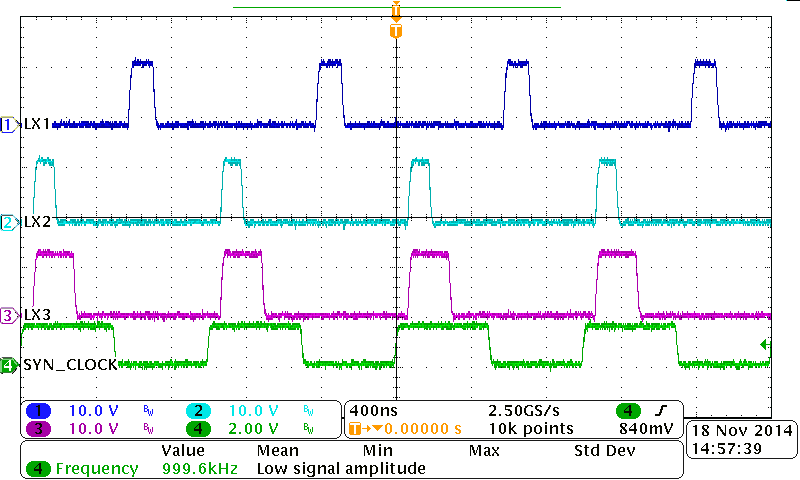

Figure 8-22 Synchronization with External Clock

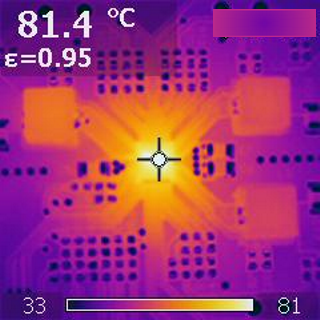

| VIN = 12 V, VOUT1 = 1.5 V/3 A, VOUT2 = 1.2 V/2 A, |
| VOUT3 = 2.5 V/2 A, |
| TA = 26.8°C EVM condition 4 layers, 75 mm × 75 mm |
