ZHCSEO1C March 2012 – February 2016 TPS65177 , TPS65177A
PRODUCTION DATA.
| VALUE | UNIT | |||
|---|---|---|---|---|
| MIN | MAX | |||
| Pin Voltage (2) | VIO, INBK1, HVS, INVL, INBK3, SWBK3, VHAVDD, SW, SWI, SWO | –0.3 | 20 | V |
| SWBK1 | –2 | 18 | V | |
| COMP, EN, A0, SDA, SCL, CTRL, SWBK2, VCORE, INBK2, DRVN, NTC | –0.3 | 7 | V | |
| VL | –0.3 | 5.5 | V | |
| DRVP, VGH, VGHM, RE | –0.3 | 40 | V | |
| VGL | –15 | 0.3 | V | |
| Operating junction temperature range | –40 | 150 | °C | |
| Storage temperature range, Tstg | –65 | 150 | °C | |
| VALUE | UNIT | |||
|---|---|---|---|---|
| V(ESD) | Electrostatic discharge | Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) | ±2000 | V |
| Charged-device model (CDM), per JEDEC specification JESD22-C101(2) | ±700 | |||
| MIN | TYP | MAX | UNIT | ||
|---|---|---|---|---|---|
| VI | Supply input voltage range | 8.6 | 12 | 14.7 | V |
| C(VL) | Internal 5 V regulator (VL) buffer capacitance (after DC-Bias derating) | 0.1 | 1 | 4.7 | µF |
| BOOST CONVERTER | |||||
| V(AVDD) | Boost output voltage range | 13.5 | 19.8 | V | |
| L | Boost inductor (inductor value that can be used) | 4.7 | 6.8 | 10 | µH |
| CI | Input capacitor placed at the inductor (ceramic capacitor value) | 4.7 | 10 | µF | |
| C(SWI) | Isolation Switch input capacitor (ceramic capacitor value) | 4.7 | 10 | 100 | µF |
| C(SWO) | Isolation Switch output capacitor (ceramic capacitor value) | 20 | 40 | 200 | µF |
| BUCK 1 CONVERTER | |||||
| V(IO) | Buck 1 output voltage range | 2.2 | 3.7 | V | |
| L | Buck 1 inductor (inductor value that can be used) | 4.7 | 6.8 | 10 | µH |
| CI | Buck 1 input capacitor (ceramic capacitor value) | 4.7 | 10 | µF | |
| COUT | Buck 1 output capacitor (ceramic capacitor value) | 20 | 30 | 100 | µF |
| BUCK 2 CONVERTER | |||||
| V(CORE) | Buck 2 output voltage range | 0.8 | 3.3 | V | |
| L | Buck 2 inductor (inductor value that can be used) | 4.7 | 6.8 | 10 | µH |
| CI | Buck 2 input capacitor (ceramic capacitor value) | 4.7 | 10 | µF | |
| COUT | Buck 2 output capacitor (ceramic capacitor value) | 10 | 20 | 50 | µF |
| BUCK 3 CONVERTER | |||||
| V(HAVDD) | Buck 3 output voltage range | 4.8 | 11.1 | V | |
| L | Buck 3 inductor (inductor value that can be used) | 4.7 | 6.8 | 10 | µH |
| CIN | Buck 3 input capacitor (ceramic capacitor value) | 4.7 | 10 | µF | |
| COUT | Buck 3 output capacitor (ceramic capacitor value) | 4.7 | 10 | 50 | µF |
| NEGATIVE CHARGE PUMP CONTROLLER | |||||
| V(GL) | Controller output voltage range | –5.5 | –14.5 | V | |
| C(FLY) | Flying capacitor (ceramic capacitor value) | 0.1 | 0.47 | 4.7 | µF |
| R(switch) | Resistance to the switch pin | 0 | 2.2 | 20 | Ω |
| COUT | Output capacitor (ceramic capacitor value) | 1 | 4.7 | 50 | µF |
| POSITIVE CHARGE PUMP CONTROLLER | |||||
| V(GH) | Controller output voltage range | 20 | 40 | V | |
| V(GH_offset) | Temperature compensation V(GH) positive offset | 0 | 15 | V | |
| C(FLY) | Flying capacitor (ceramic capacitor value) | 0.1 | 0.47 | 4.7 | µF |
| R(switch) | Resistance to the switch pin | 0 | 2.2 | 20 | Ω |
| COUT | Output capacitor (ceramic capacitor value) | 1 | 4.7 | 50 | µF |
| TEMPERATURE | |||||
| TA | Operating ambient temperature | –40 | 85 | °C | |
| TJ | Operating junction temperature | –40 | 125 | °C | |
| THERMAL METRIC(1) | RHA (VQFN) | UNIT | |
|---|---|---|---|
| 40 PINS | |||
| RθJA | Junction-to-ambient thermal resistance | 32.8 | °C/W |
| RθJC(top) | Junction-to-case (top) thermal resistance | 20.3 | °C/W |
| RθJB | Junction-to-board thermal resistance | 7.9 | °C/W |
| ψJT | Junction-to-top characterization parameter | 0.3 | °C/W |
| ψJB | Junction-to-board characterization parameter | 7.8 | °C/W |
| RθJC(bot) | Junction-to-case (bottom) thermal resistance | 2.6 | °C/W |
| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | ||
|---|---|---|---|---|---|---|---|
| SUPPLY CURRENT | |||||||
| VI | Operating input voltage | 8.6 | 14.7 | V | |||
| VIT+ | Undervoltage lockout threshold (UVLO) | VI rising | 8 | 8.3 | 8.6 | V | |
| VIT– | Hysteresis VI falling | 0.75 | V | ||||
| Thermal shutdown | Junction temperature rising | 150 | ºC | ||||
| LOGIC SIGNALS | |||||||
| VIH | High-level input voltage | EN, HVS, SDA, SCL, A0, CTRL | 2 | V | |||
| VIL | Low-level input voltage | EN, HVS, A0, CTRL | 1 | V | |||
| SDA, SCL | 0.9 | V | |||||
| INTERNAL REGULATOR | |||||||
| V(VL) | Internal supply | 4.9 | 5 | 5.1 | V | ||
| ISOLATION SWITCH | |||||||

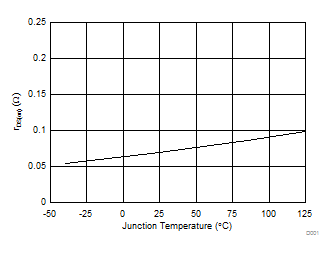

| rDS(ON) | MOSFET on-resistance | I(SWI) = 1 A | 100 | mΩ | |||
| BOOST CONVERTER (V(AVDD)) | |||||||
| Switching frequency | 600 | 750 | 900 | kHz | |||
| V(AVDD) | Output voltage range | 13.5 | 18 | 19 | V | ||
| Output voltage range for max. 500h | 19.8 | V | |||||
| High Voltage Stress Mode V(AVDD) positive offset | 0 | 3 | V | ||||
| Switch overvoltage protection | At SW pin, V(AVDD) rising | 20.5 | 22.5 | V | |||
| Output voltage tolerance | At TJ = 0 ºC to 85 ºC | 1% | |||||
| Feedback input bias current | 350 | 600 | µA | ||||

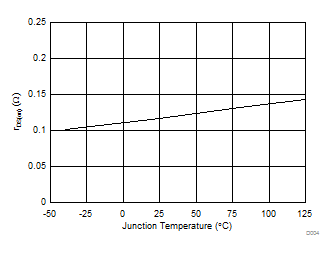

| rDS(on) | MOSFET on-resistance | I(SW) = current limit | 100 | 200 | mΩ | ||
| MOSFET current limit | At TJ = 0 ºC to 85 ºC | 4.25 | 5 | 5.75 | A | ||
| MOSFET current limit negative offset | 0 | 2.8 | A | ||||
| Line Regulation | 8.6 V ≤ VI ≤ 14.7 V, IOUT = 500 mA | 0.001 | %/V | ||||
| Load Regulation | 1 mA ≤ IOUT ≤ 2 A | 0.08 | %/A | ||||
| BUCK1 CONERTER (V(IO)) | |||||||
| Switching frequency | 600 | 750 | 900 | kHz | |||
| V(IO) | Output voltage range | 2.2 | 3.3 | 3.7 | V | ||
| Output voltage tolerance | At TJ = 0 ºC to 85ºC | 2% | |||||
| I | Feedback input bias current | 10 | 200 | µA | |||

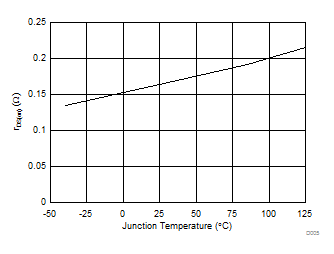

| rDS(on) | MOSFET on-resistance | I(SWBK1) = current limit | 200 | 300 | mΩ | ||
| MOSFET current limit | At TJ = 0 ºC to 85 ºC | 2.8 | 3.5 | 4.2 | A | ||
| Line Regulation | 8.6 V ≤ VI ≤ 14.7 V, IOUT = 500 mA | 0.002 | %/V | ||||
| Load Regulation | 1 mA ≤ IOUT ≤ 2 A | 0.07 | %/A | ||||
| BUCK2 CONVERTER (V(CORE)) | |||||||
| Switching frequency | 0.5 | 1 | 2 | MHz | |||
| V(CORE) | Output voltage range | 0.8 | 1.2 | 3.3 | V | ||
| Output voltage tolerance | At TJ = 0 ºC to 85 ºC | 2% | |||||
| Feedback input bias current | 20 | 200 | µA | ||||

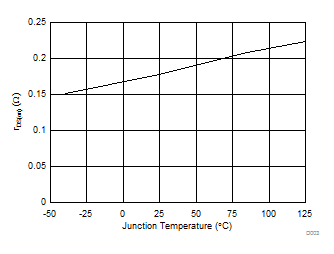

| rDS(on) | MOSFET on-resistance | I(SWBK2) = current limit | 175 | 300 | mΩ | ||
| MOSFET current limit | At TJ = 0 ºC to 85 ºC | 2.5 | 3 | 3.5 | A | ||
| Line Regulation | 2.2 V ≤ VI ≤ 3.7 V, IOUT = 500 mA | 0.001 | %/V | ||||
| Load Regulation | 1 mA ≤ IOUT ≤ 1.5 A | 0.2 | %/A | ||||
| BUCK3 CONVERTER (V(HAVDD)) | |||||||
| Switching frequency | 0.5 | 1 | 2 | MHz | |||
| V(HAVDD) | Output voltage range | 4.8 | 9 | 11.1 | V | ||
| Output Voltage Stress Mode V(HAVDD) positive offset | 0 | 1.5 | V | ||||
| Output voltage tolerance | At TJ = 0 ºC to 85 ºC | 1.5% | |||||
| Feedback input bias current | 90 | 200 | µA | ||||

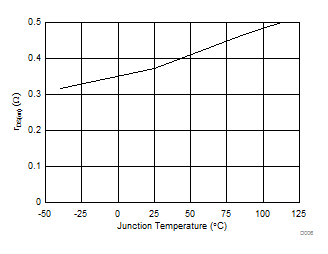

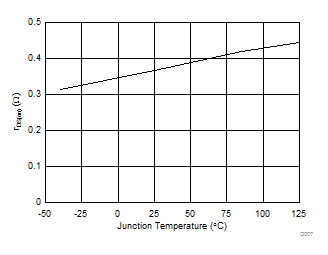

| rDS(on) | MOSFET on-resistance | I(SWBK3) = current limit | 300 | 500 | mΩ | ||
| MOSFET current limit | At TJ = 0 ºC to 85 ºC | 1.2 | 1.5 | 1.8 | A | ||
| Line Regulation | 8.6 V ≤ VI ≤ 14.7 V, IOUT = 500 mA | 0.002 | %/V | ||||
| Load Regulation | 1 mA ≤ IOUT ≤ 1 A | 0.05 | %/A | ||||
| NEGATIVE CHARGE PUMP CONTROLLER (V(GL)) | |||||||
| V(GL) | Output voltage range | –5.5 | –10.3 | –14.5 | V | ||
| Output voltage tolerance | At TJ = 0 ºC to 85 ºC | 2.5% | |||||
| Feedback input bias current | 50 | 200 | µA | ||||

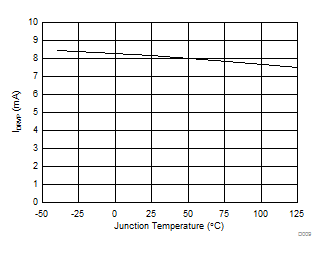

| I(DRVN) | Max. DRVN drive current | V(DRVN) = 0.6 V | 5 | 10 | mA | ||
| Resistor DRVN to GND | 50 | 100 | 200 | kΩ | |||
| Line Regulation | 8.6 V ≤ VI ≤ 14.7 V, IOUT = 50 mA | 0.015 | %/V | ||||
| Load Regulation | 1 mA ≤ IOUT ≤ 100 mA | 0.002 | %/mA | ||||
| POSITIVE CHARGE PUMP CONTROLLER (V(GH)) | |||||||
| V(GH) | Output voltage range | 20 | 28 | 35 | V | ||
| V(GH_offset) | Temp. compensation V(GH) positive offset | V(GH_offset) = 8 V | 0 | 8 | 15 | V | |
| Max. output voltage including V(GH_offset) | 40 | V | |||||
| Output voltage tolerance | At TJ = 0 ºC to 85 ºC | 2.5% | |||||
| Feedback input bias current | 120 | 200 | µA | ||||
| I(DRVP) | Max. DRVP drive current | V(DRVP) = 17 V | 5 | 10 | mA | ||
| Line Regulation | 8.6 V ≤ VI ≤ 14.7 V, IOUT = 50 mA | 0.001 | %/V | ||||
| Load Regulation | 1 mA ≤ IOUT ≤ 100 mA | 0.001 | %/mA | ||||
| GATE PULSE MODULATION (V(GHM)) | |||||||
| Gate Pulse Modulation falling limit | V(GHM) = 15 V | 0 | 5 | 15 | V | ||

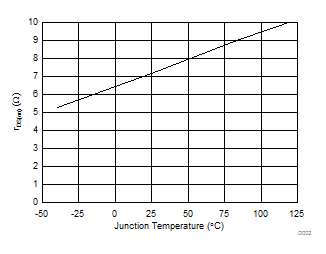

| rDS(ON)M1 | VGH to VGHM on-resistance | CTRL = 3.3 V, I(VGHM) = 20 mA, V(GH) = 28 V |
3 | 5 | Ω | ||
| rDS(ON)M2 | VGHM to RE on-resistance | CTRL = GND, I(RE) = 20 mA, V(GHM) = 15 V | 3 | 5 | Ω | ||
| CTRL to VGHM propagation delay | CTRL rising | 150 | 250 | 360 | ns | ||

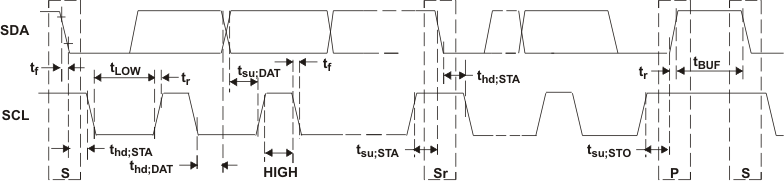

| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|
| fSCL | SCL clock frequency | Standard mode | 100 | kHz | ||
| Fast mode | 400 | kHz | ||||
| Fast mode plus | 1 | MHz | ||||
| tLOW | LOW period of the SCL clock | Standard mode | 4.7 | µs | ||
| Fast mode | 1.3 | µs | ||||
| tHIGH | HIGH period of the SCL clock | Standard mode | 4.0 | µs | ||
| Fast mode | 600 | ns | ||||
| tBUF | Bus free time between a STOP and START condition | Standard mode | 4.7 | µs | ||
| Fast mode | 1.3 | µs | ||||
| thd:STA | Hold time for a repeated START condition | Standard mode | 4.0 | µs | ||
| Fast mode | 600 | ns | ||||
| tsu:STA | Setup time for a repeated START condition | Standard mode | 4.7 | µs | ||
| Fast mode | 600 | ns | ||||
| tsu:STO | Setup time for STOP condition | Standard mode | 4.0 | µs | ||
| Fast mode | 600 | ns | ||||
| thd:DAT | Data hold time | Standard mode | 0 | 3.45 | µs | |
| Fast mode | 0 | 0.9 | µs | |||
| tsu:DAT | Data setup time | Standard mode | 250 | ns | ||
| Fast mode | 100 | ns | ||||
| CB | Capacitive load for SDA and SCL | 400 | pF | |||
| tRCL1 | Rise time of SCL signal after a repeated START condition and after an acknowledge bit | Standard mode | 20 + 0.1CB | 1000 | ns | |
| Fast mode | 20 + 0.1CB | 1000 | ns | |||
| tRCL | Rise time of SCL signal | Standard mode | 20 + 0.1CB | 1000 | ns | |
| Fast mode | 20 + 0.1CB | 300 | ns | |||
| tFCL | Fall time of SCL signal | Standard mode | 20 + 0.1CB | 300 | ns | |
| Fast mode | 20 + 0.1CB | 300 | ns | |||
| tRDA | Rise time of SDA signal | Standard mode | 20 + 0.1CB | 1000 | ns | |
| Fast mode | 20 + 0.1CB | 300 | ns | |||
| tFDA | Fall time of SDA signal | Standard mode | 20 + 0.1CB | 300 | ns | |
| Fast mode | 20 + 0.1CB | 300 | ns | |||
