8.2.1 TPS65131-Q1 With VPOS = 10.5V, VNEG = –10V

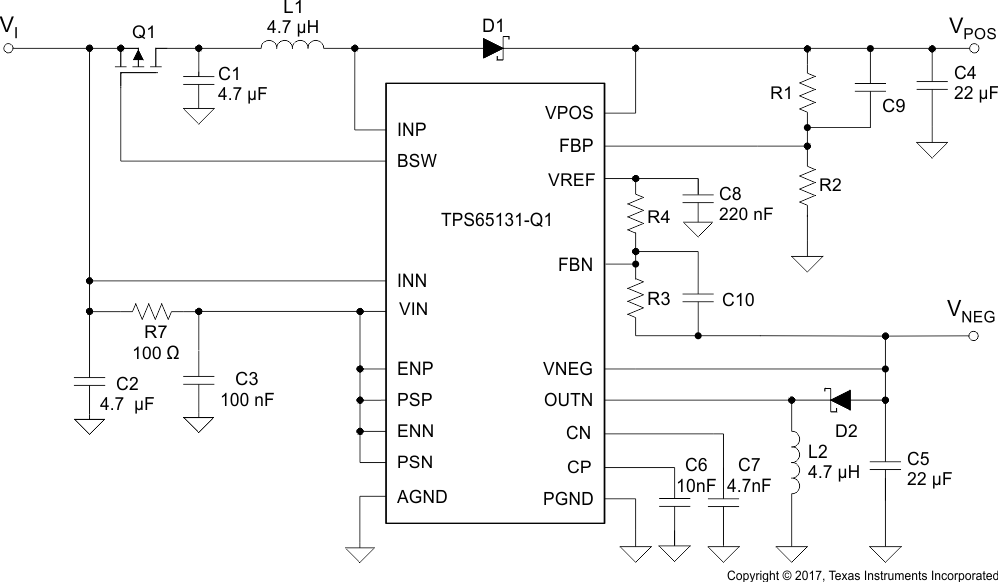

Figure 8-1 Typical Application
Schematic With VPOS = 10.5V, VNEG = –10V
