ZHCSQG4E March 2004 – April 2022 TPS65130 , TPS65131
PRODUCTION DATA
請參考 PDF 數據表獲取器件具體的封裝圖。

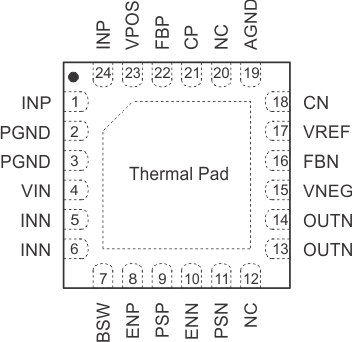

Figure 5-1 RGE
Package, 24-PIN VQFN (Top View) | PIN | TYPE | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| AGND | 19 | — | Analog ground pin |
| BSW | 7 | O | Gate control pin for external battery switch. This pin goes low when ENP is set high. |
| CN | 18 | — | Compensation pin for inverting converter control |
| CP | 21 | — | Compensation pin for boost converter control |
| ENN | 10 | I | Enable pin for the negative output voltage (0 V: disabled, VIN: enabled) |
| ENP | 8 | I | Enable pin for the positive output voltage (0 V: disabled, VIN: enabled) |
| FBN | 16 | I | Feedback pin for the negative output voltage divider |
| FBP | 22 | I | Feedback pin for the positive output voltage divider |
| INN | 5, 6 | I | Inverting converter switch input |
| INP | 1, 24 | I | Boost converter switch input. |
| NC | 12, 20 | — | Not connected |
| OUTN | 13, 14 | O | Inverting converter switch output. |
| PGND | 2, 3 | — | Power ground pin |
| PSN | 11 | I | Power-save mode enable for inverter stage (0 V: disabled, VIN: enabled) |
| PSP | 9 | I | Power-save mode enable for boost converter stage (0 V: disabled, VIN: enabled) |
| VIN | 4 | I | Control supply input |
| VNEG | 15 | I | Negative output voltage sense input |
| VPOS | 23 | I | Positive output voltage sense input |
| VREF | 17 | O | Reference output voltage. Bypass this pin with a 220-nF capacitor to ground. Connect the lower resistor of the negative output voltage divider to this pin |
