9.3.4 Various Output Voltages
The following example circuits show how to use the various devices and configure the external circuitry to furnish different output voltages at 1 A.

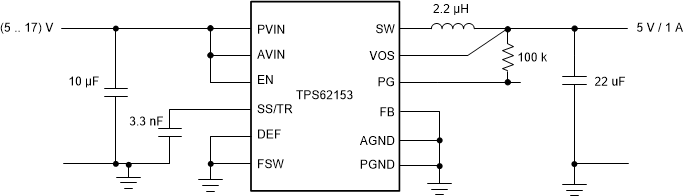

Figure 9-41 5-V, 1-A Power Supply

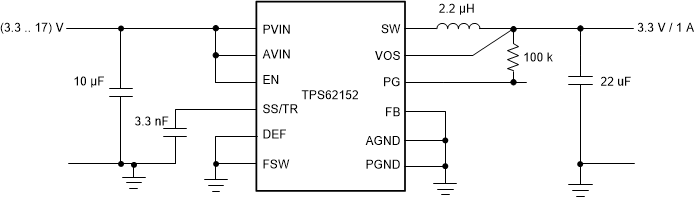

Figure 9-42 3.3-V, 1-A Power Supply

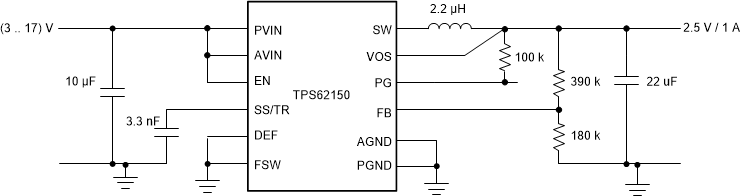

Figure 9-43 2.5-V, 1-A Power Supply
Figure 9-44 1.8-V, 1-A Power Supply
Figure 9-45 1.5-V, 1-A Power Supply
Figure 9-46 1.2-V, 1-A Power Supply

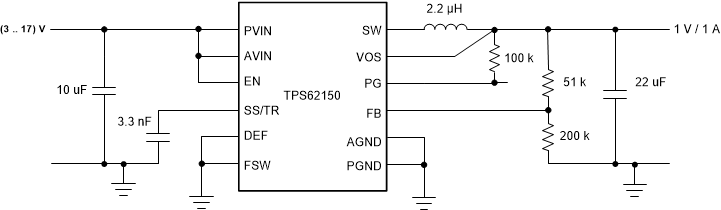

Figure 9-47 1-V, 1-A Power Supply
