ZHCSFI8C June 2016 – June 2021 TPS62135

PRODUCTION DATA

封裝選項

機械數據 (封裝 | 引腳)

RGX|11
- MPQF454

散熱焊盤機械數據 (封裝 | 引腳)

訂購信息

10.2.1.3 Application Curves

Vout = 1.2 V

PFM

T_A = 25°C

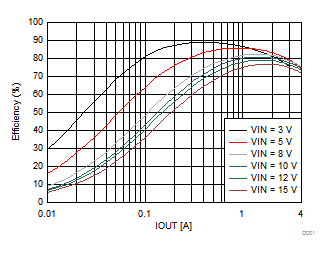

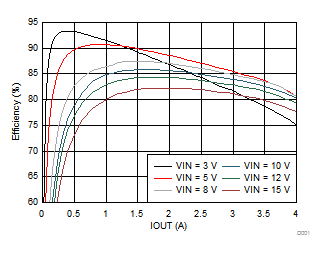

Figure 10-3 Efficiency vs Output Current

Vout = 1.2 V

PWM

T_A= 25 °C

Figure 10-5 Efficiency vs Output Current

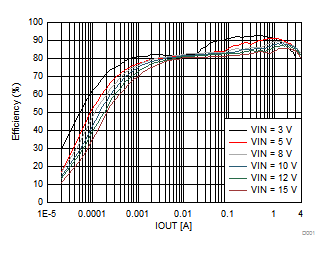

Vout = 1.8 V

PWM

T_A = 25°C

Figure 10-7 Efficiency vs Output Current

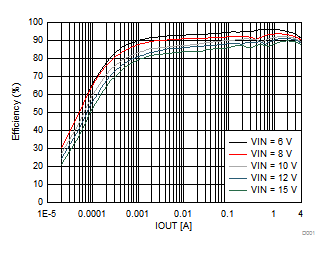

Vout = 3.3 V

PFM

T_A = 25°C

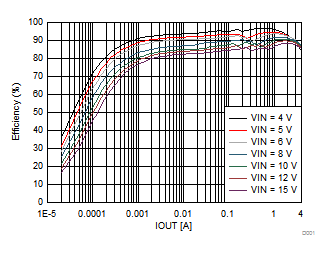

Figure 10-9 Efficiency vs Output Current

Vout = 3.3 V

PWM

T_A = 25°C

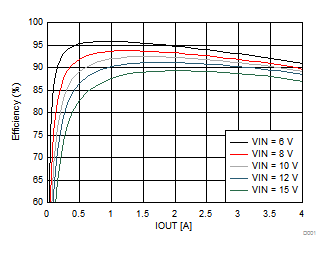

Figure 10-11 Efficiency vs Output Current

Vout = 5 V

PWM

T_A = 25°C

Figure 10-13 Efficiency vs Output Current

Vout = 9 V

PFM

T_A = 25°C

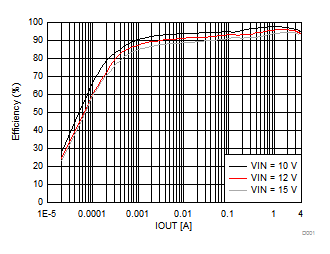

Figure 10-15 Efficiency vs Output Current

Vout = 9 V

PWM

T_A = 25°C

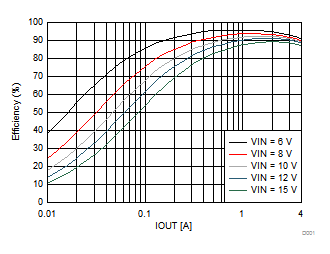

Figure 10-17 Efficiency vs Output Current

Vout = 1.2 V

PWM

T_A = 25°C

Figure 10-19 Output Voltage vs Output Current

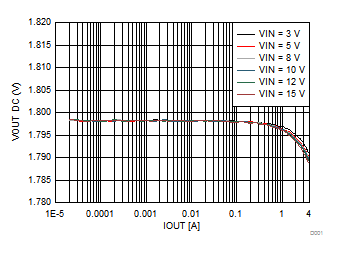

Vout = 1.8 V

PWM

T_A = 25°C

Figure 10-21 Output Voltage vs Output Current

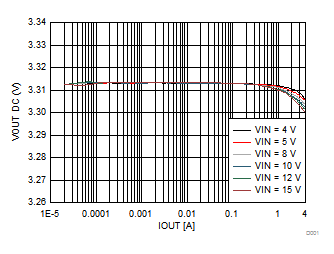

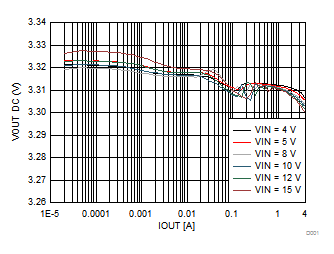

Vout = 3.3 V

PWM

T_A = 25°C

Figure 10-23 Output Voltage vs Output Current

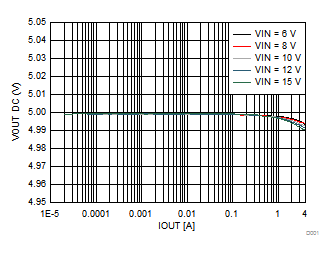

Vout = 5 V

PWM

T_A = 25°C

Figure 10-25 Output Voltage vs Output Current

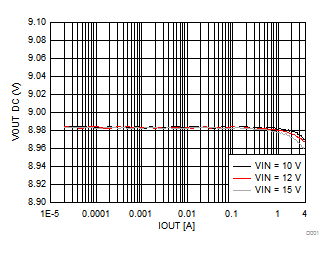

Vout = 9 V	PWM	T_A = 25°C

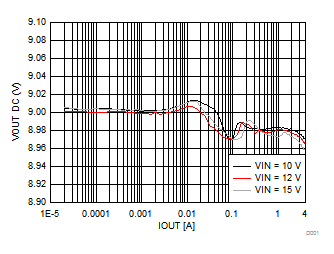

Figure 10-27 Output Voltage vs Output Current

Vout = 1.8 V

PWM

measurement taken up to 4 A

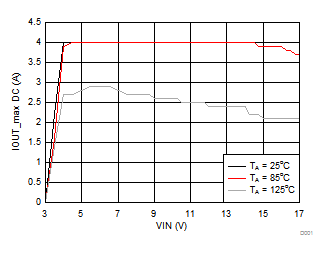

Figure 10-29 Maximum Output Current vs Input Voltage

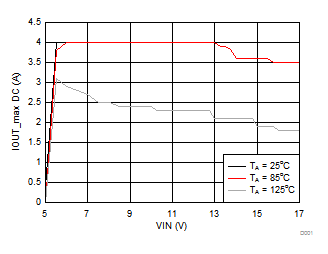

Vout = 5 V

PWM

measurement taken up to 4 A

Figure 10-31 Maximum Output Current vs Input Voltage

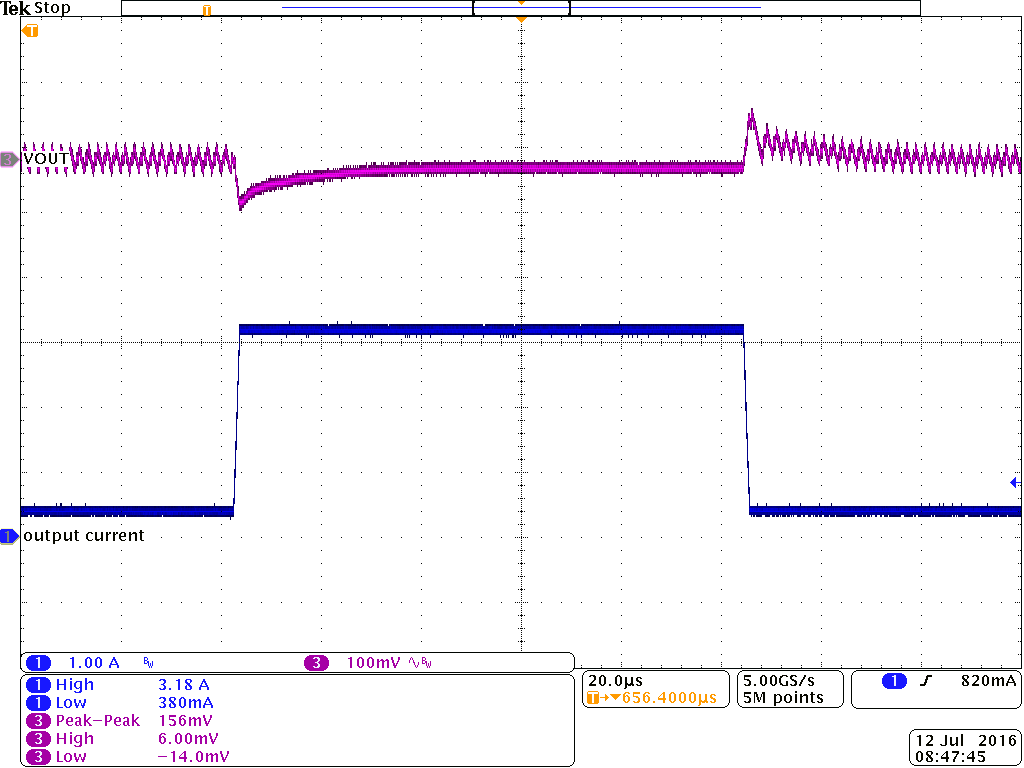

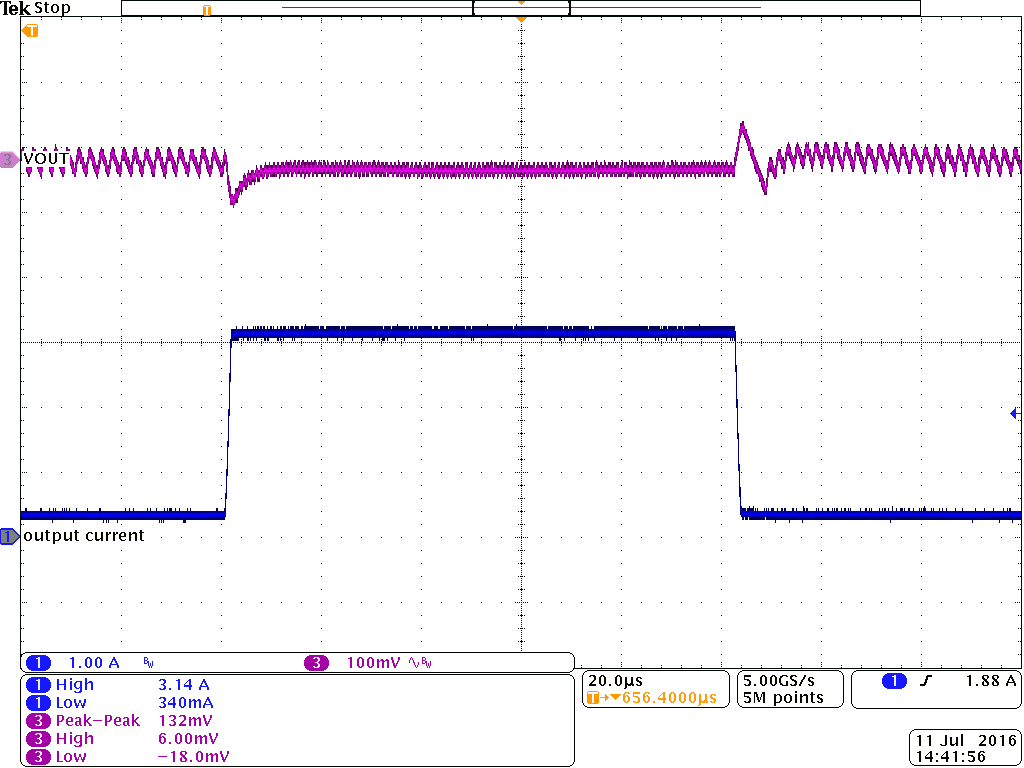

Vin = 12 V;	PFM	Io = 350 mA to 3.1 A;
Vout = 1.2 V;		T_A= 25 °C

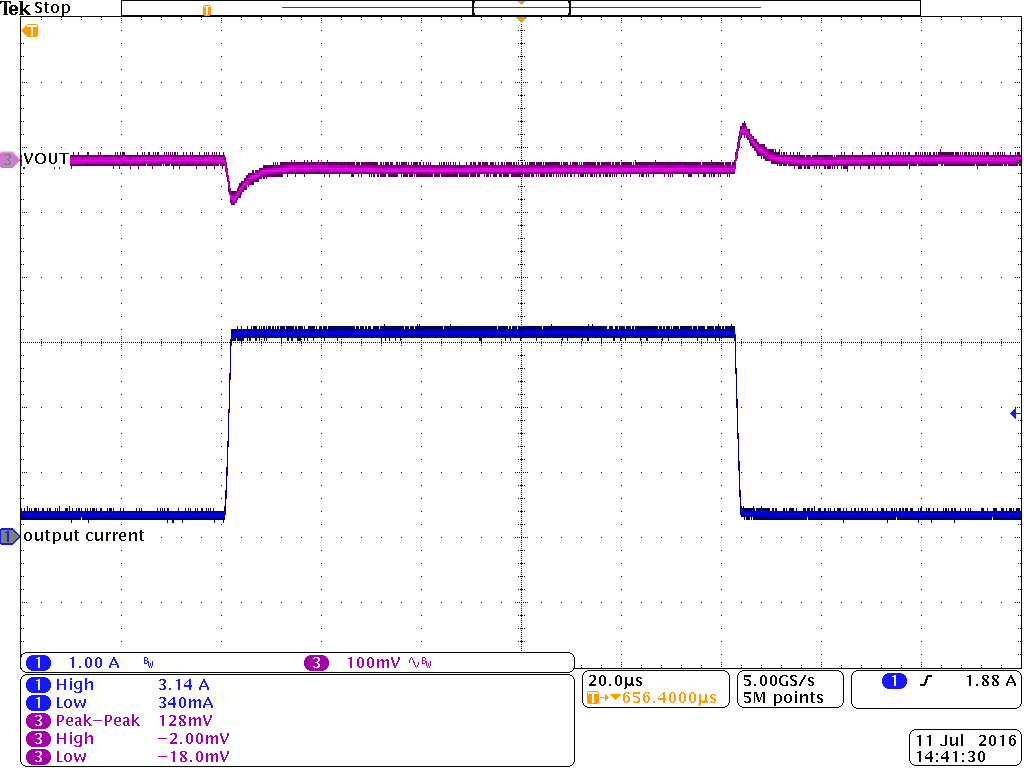

Figure 10-33 Load Transient Response

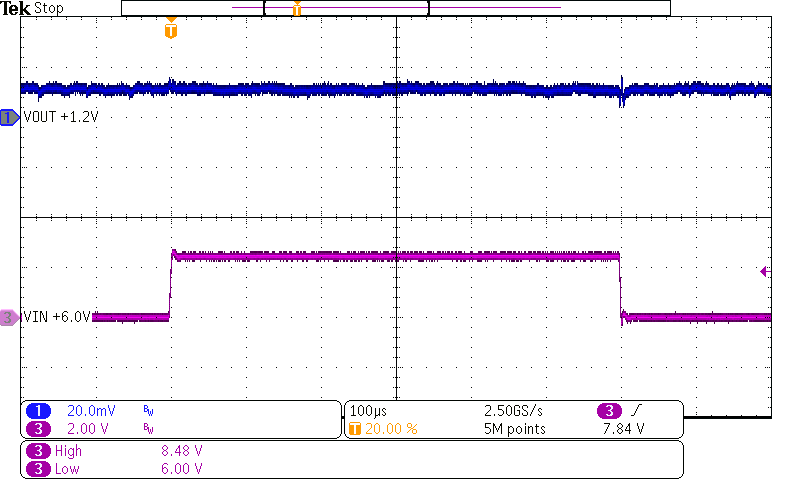

Vin = 6 V to 8.4 V;	PFM	Io = 1 A
Vout = 1.2 V		T_A= 25 °C

Figure 10-35 Line Transient Response

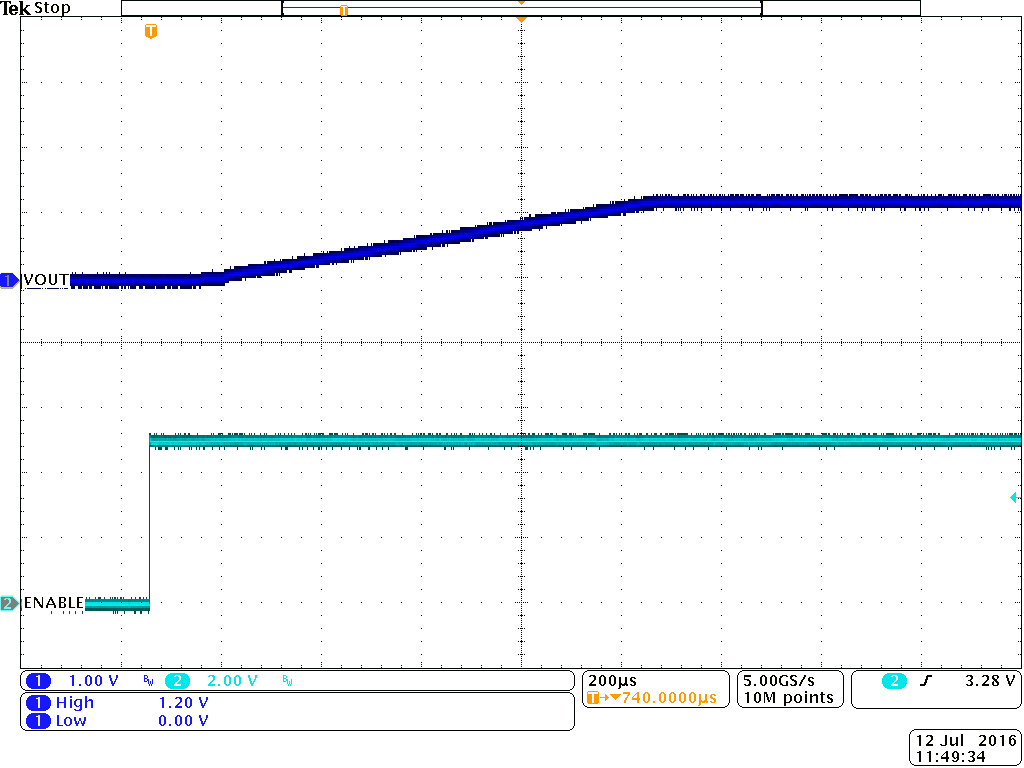

Vin = 5 V;	PWM	Rload = 1 kΩ
Vout = 1.2 V		T_A= 25 °C

Figure 10-37 Start-Up Timing

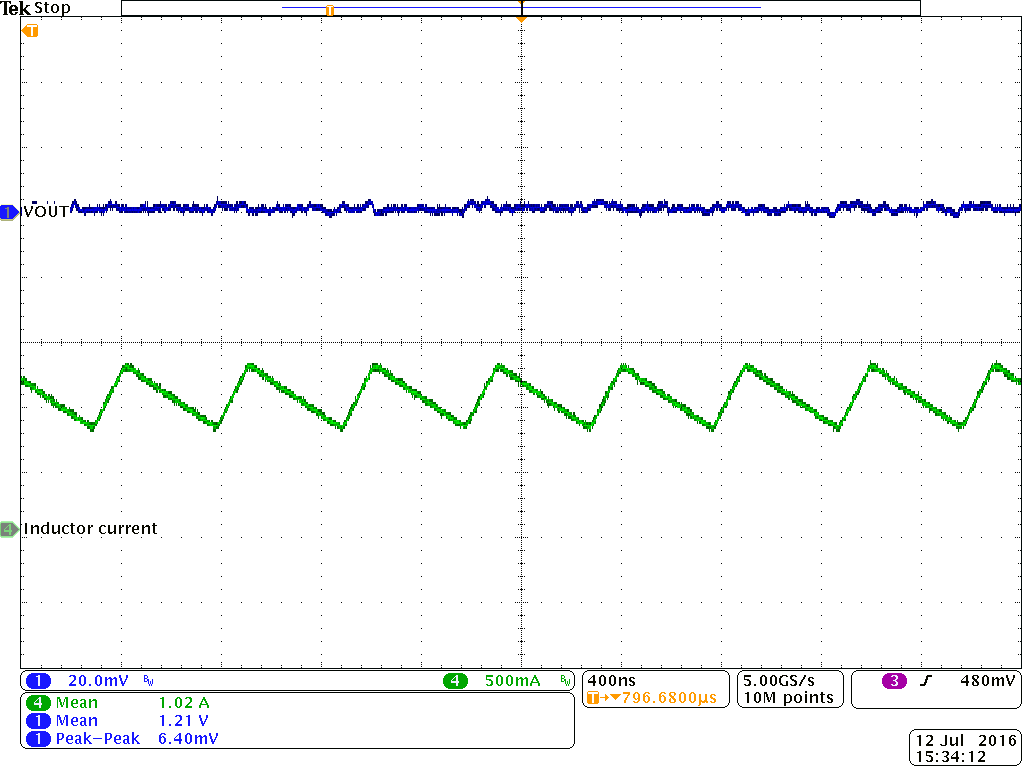

Vin = 5 V;	PWM	Io = 1 A
Vout = 1.2 V		T_A= 25 °C

Figure 10-39 Output Voltage Ripple

Vout = 1.8 V	PWM	Io = 350 mA to 3.1 A
		T_A= 25°C

Figure 10-41 Load Transient Response

Vin = 6 V to 8.4 V;	PWM	Io = 1 A
Vout = 1.8 V		T_A= 25 °C

Figure 10-43 Line Transient Response

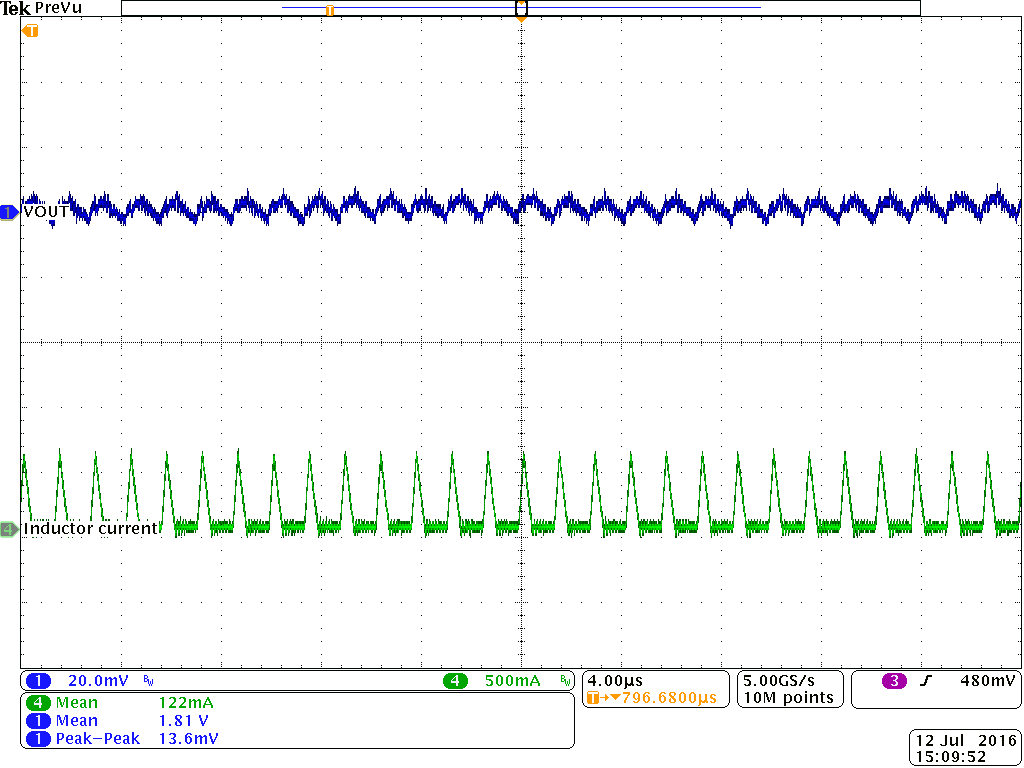

Vout = 1.8 V	PFM	Io = 0.1 A
		T_A= 25 °C

Figure 10-45 Output Voltage Ripple

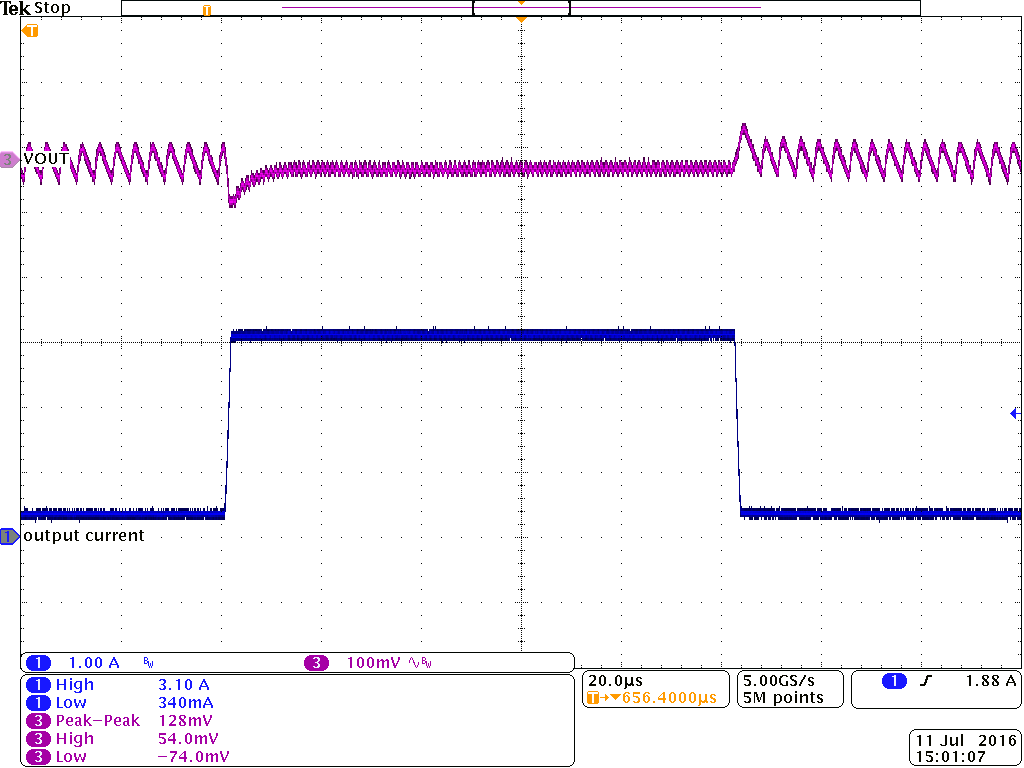

Vout = 3.3 V	PFM	Io = 350 mA to 3.1 A
		T_A= 25 °C

Figure 10-47 Load Transient Response

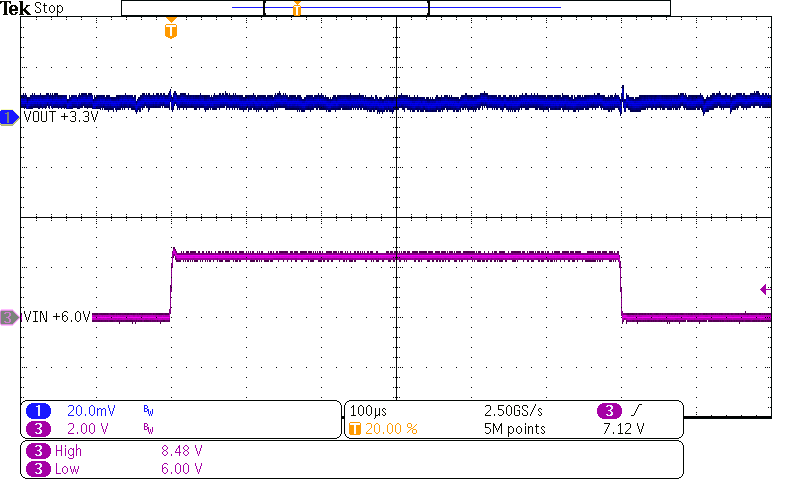

Vin = 6 V to 8.4 V;	PFM	Io = 1 A
Vout = 3.3 V		T_A= 25 °C

Figure 10-49 Line Transient Response

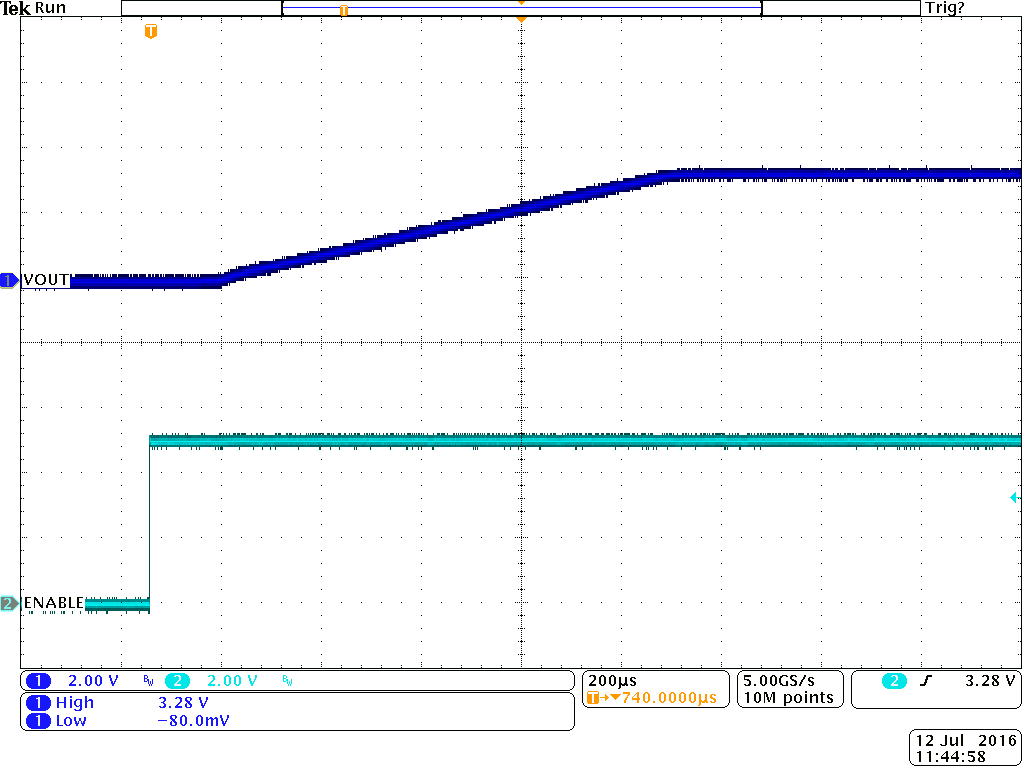

Vout = 3.3 V	PWM	Rload = 1 kΩ
		T_A= 25 °C

Figure 10-51 Start-Up Timing

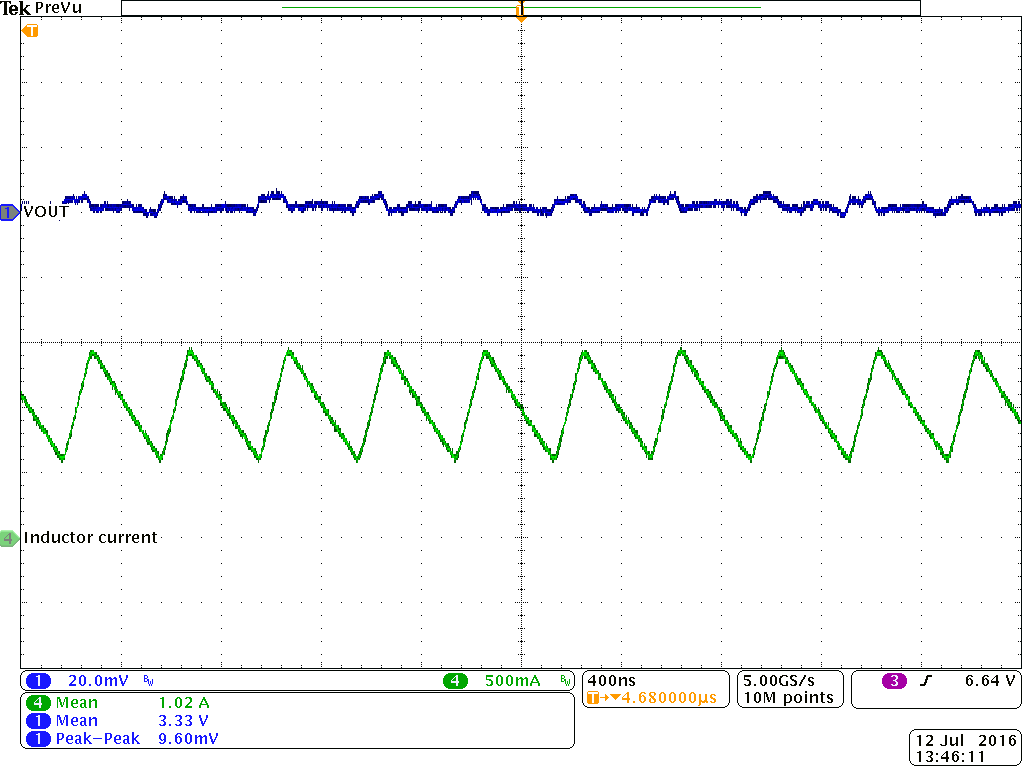

Vout = 3.3 V	PWM	Io = 1 A
		T_A= 25 °C

Figure 10-53 Output Voltage Ripple

Vout = 5 V	PWM	Io = 350 mA to 3.1 A
		T_A= 25 °C

Figure 10-55 Load Transient Response

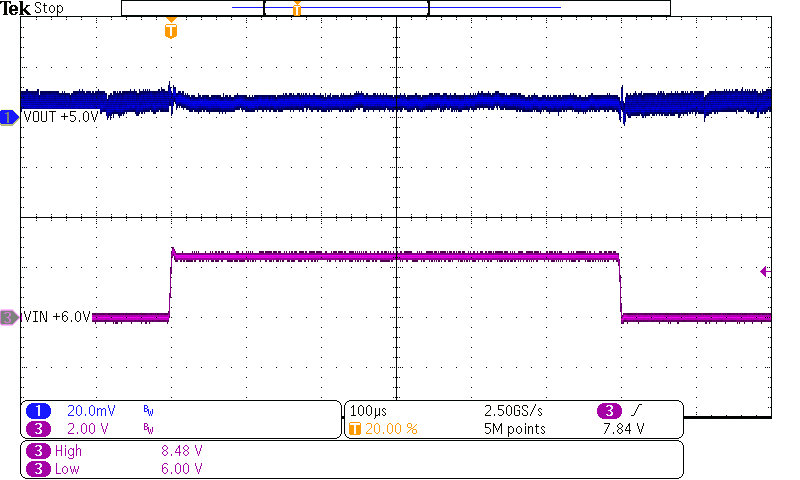

Vin = 6 V to 8.4 V;	PWM	Io = 1 A
Vout = 5 V		T_A= 25 °C

Figure 10-57 Line Transient Response

Vout = 5 V	PFM	Io = 0.1 A
		T_A= 25 °C

Figure 10-59 Output Voltage Ripple

Vout = 9 V	PFM	Io = 300 mA to 2.7 A
		T_A= 25 °C

Figure 10-61 Load Transient Response

Vin = 12 V to 15 V;	PFM	Io = 1 A
Vout = 9 V		T_A= 25 °C

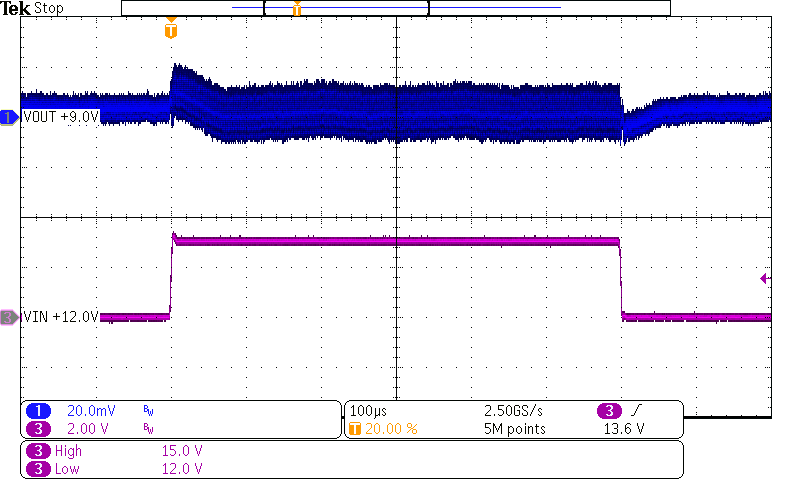

Figure 10-63 Line Transient Response

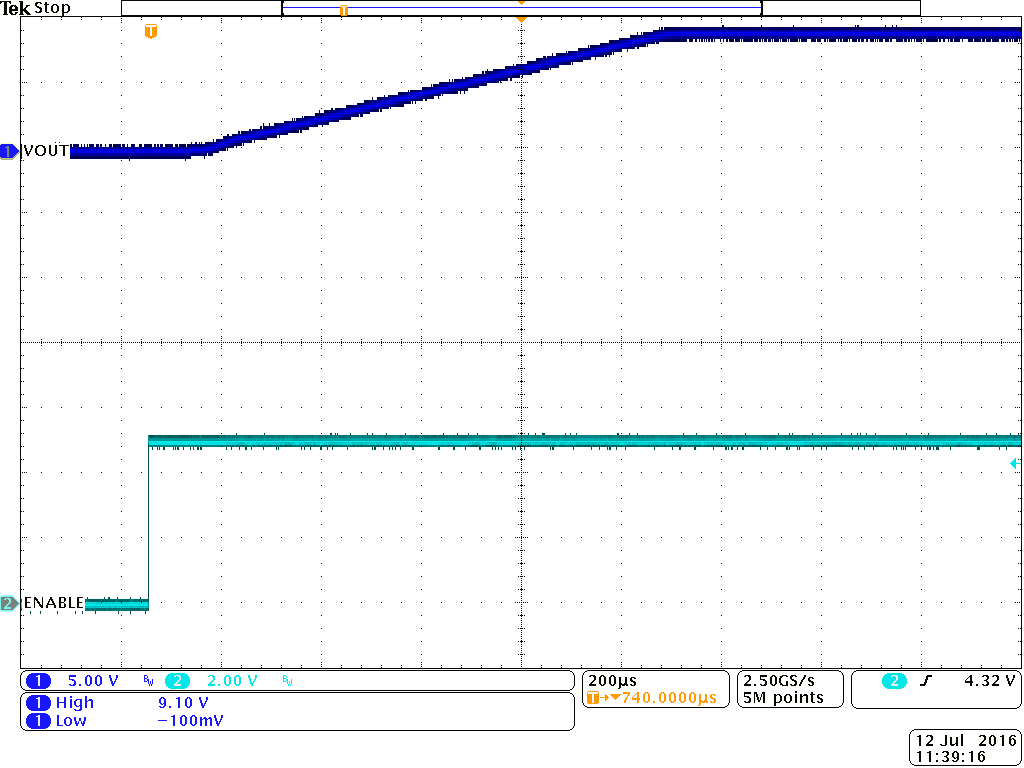

Vout = 9 V	PWM	Rload = 1 kΩ
		T_A= 25 °C

Figure 10-65 Start-Up Timing

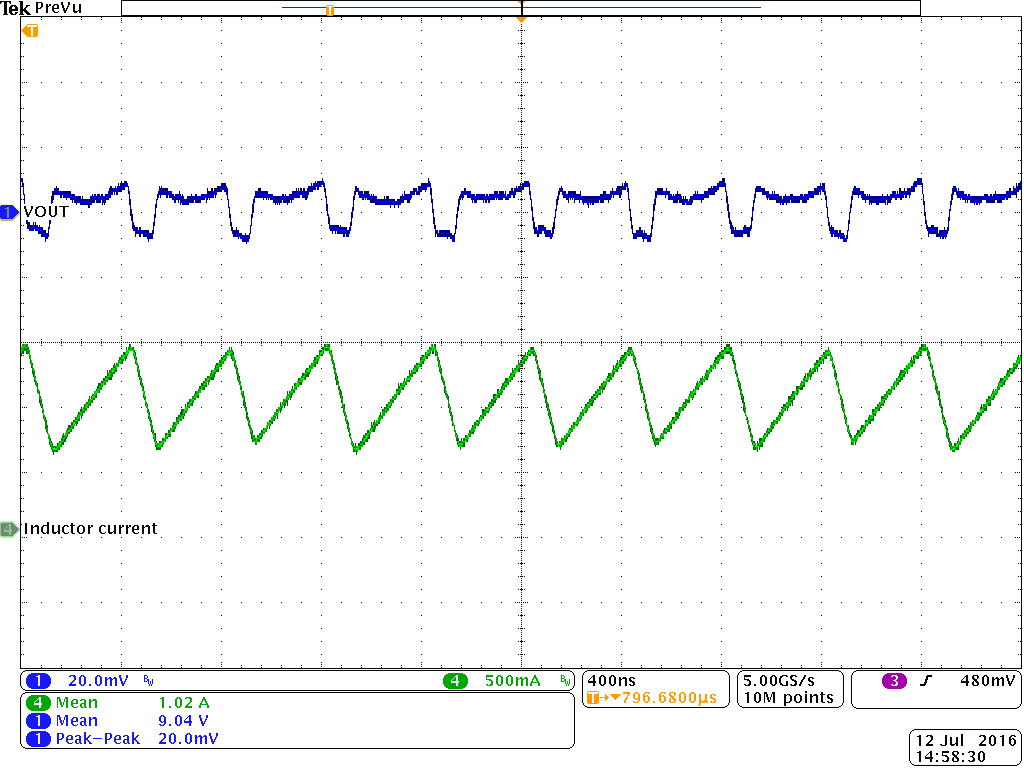

Vout = 9 V	PWM	Io = 1 A
		T_A= 25 °C

Figure 10-67 Output Voltage Ripple

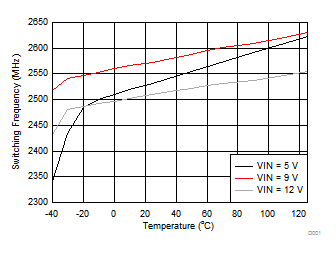

Vout = 1.2 V

PWM

Iout = 1 A

Figure 10-69 Switching Frequency vs Junction Temperature

Vout = 1.8 V

PWM

Iout = 1 A

Figure 10-71 Switching Frequency vs Junction Temperature

Vout = 3.3 V

PWM

Iout = 1 A

Figure 10-73 Switching Frequency vs Junction Temperature

Vout = 5.0 V

PWM

Iout = 1 A

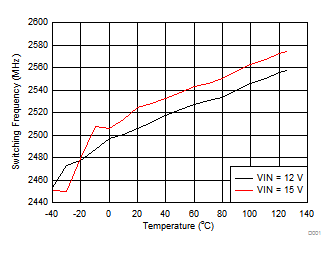

Figure 10-75 Switching Frequency vs Junction Temperature

Vout = 9.0 V	PWM	Iout = 1 A

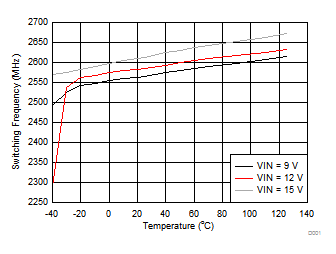

Figure 10-77 Switching Frequency vs Junction Temperature

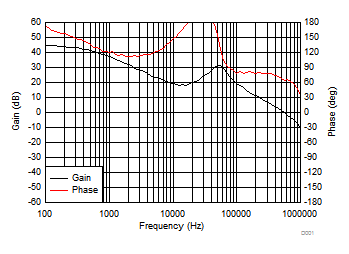

Vout = 3.3 V	Vin = 12 V	T_A= 25 °C
Io = 3.5 A

Figure 10-79 Bode Plot

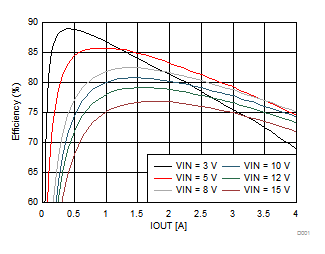

Vout = 1.2 V

PWM

T_A = 25°C

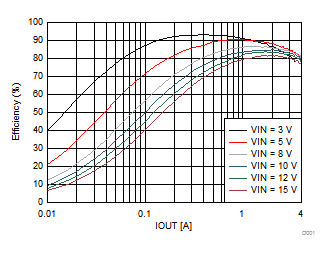

Figure 10-4 Efficiency vs Output Current

Vout = 1.8 V

PFM

T_A = 25°C

Figure 10-6 Efficiency vs Output Current

Vout = 1.8 V

PWM

T_A= 25 °C

Figure 10-8 Efficiency vs Output Current

Vout = 3.3 V

PWM

T_A = 25°C

Figure 10-10 Efficiency vs Output Current

Vout = 5 V

PFM

T_A = 25°C

Figure 10-12 Efficiency vs Output Current

Vout = 5 V

PWM

T_A = 25°C

Figure 10-14 Efficiency vs Output Current

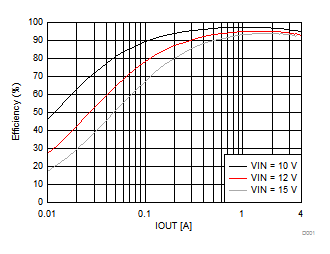

Vout = 9 V

PWM

T_A = 25°C

Figure 10-16 Efficiency vs Output Current

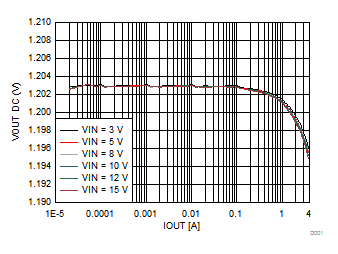

Vout = 1.2 V

PFM

T_A = 25°C

Figure 10-18 Output Voltage vs Output Current

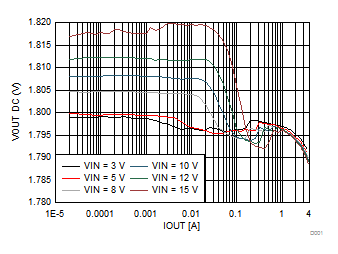

Vout = 1.8 V

PFM

T_A = 25°C

Figure 10-20 Output Voltage vs Output Current

Vout = 3.3 V

PFM

T_A = 25°C

Figure 10-22 Output Voltage vs Output Current

Vout = 5 V

PFM

T_A = 25°C

Figure 10-24 Output Voltage vs Output Current

Vout = 9 V

PFM

T_A = 25°C

Figure 10-26 Output Voltage vs Output Current

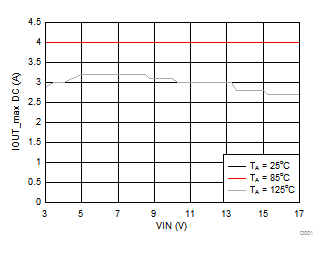

Vout = 1.2 V		PWM	measurement taken up to 4 A
	Curves for T_A= 25 °C and T_A= 85 °C overlap

Figure 10-28 Maximum Output Current vs Input Voltage

Vout = 3.3 V

PWM

measurement taken up to 4 A

Figure 10-30 Maximum Output Current vs Input Voltage

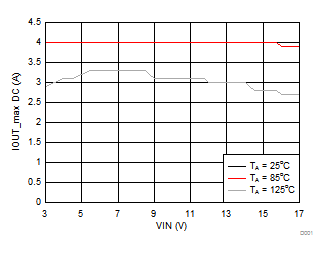

Vout = 9 V

PWM

measurement taken up to 4 A

Figure 10-32 Maximum Output Current vs Input Voltage

Vin = 12 V;	PWM	Io = 350 mA to 3.1 A
Vout = 1.2 V		T_A= 25 °C

Figure 10-34 Load Transient Response

Vin = 6 V to 8.4 V;	PWM	Io = 1 A
Vout = 1.2 V		T_A= 25 °C

Figure 10-36 Line Transient Response

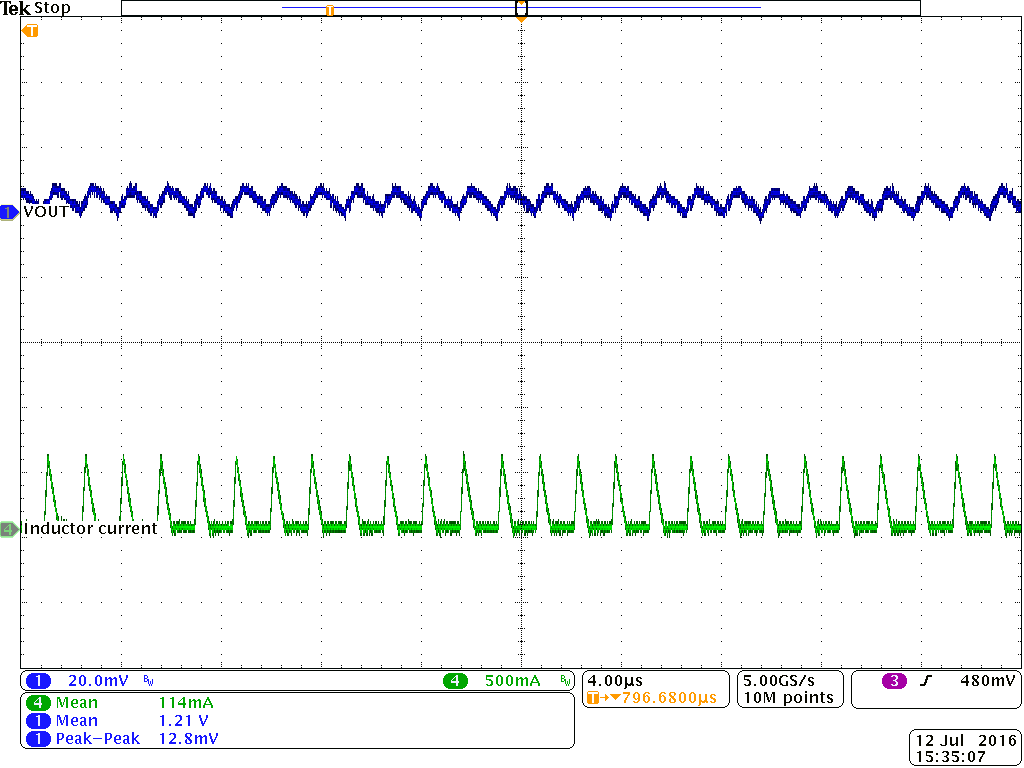

Vin = 5 V;	PFM	Io = 0.1 A
Vout = 1.2 V		T_A= 25 °C

Figure 10-38 Output Voltage Ripple

Vout = 1.8 V	PFM	Io = 350 mA to 3.1 A
		T_A= 25 °C

Figure 10-40 Load Transient Response

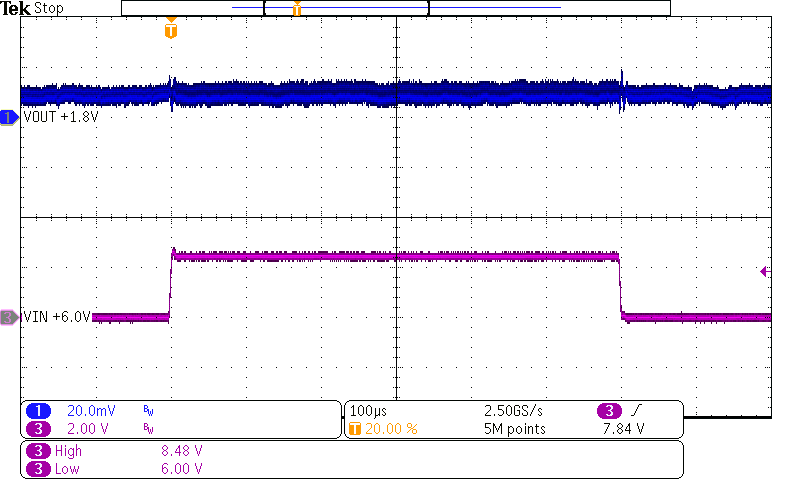

Vin = 6 V to 8.4 V;	PFM	Io = 1 A
Vout = 1.8 V		T_A= 25 °C

Figure 10-42 Line Transient Response

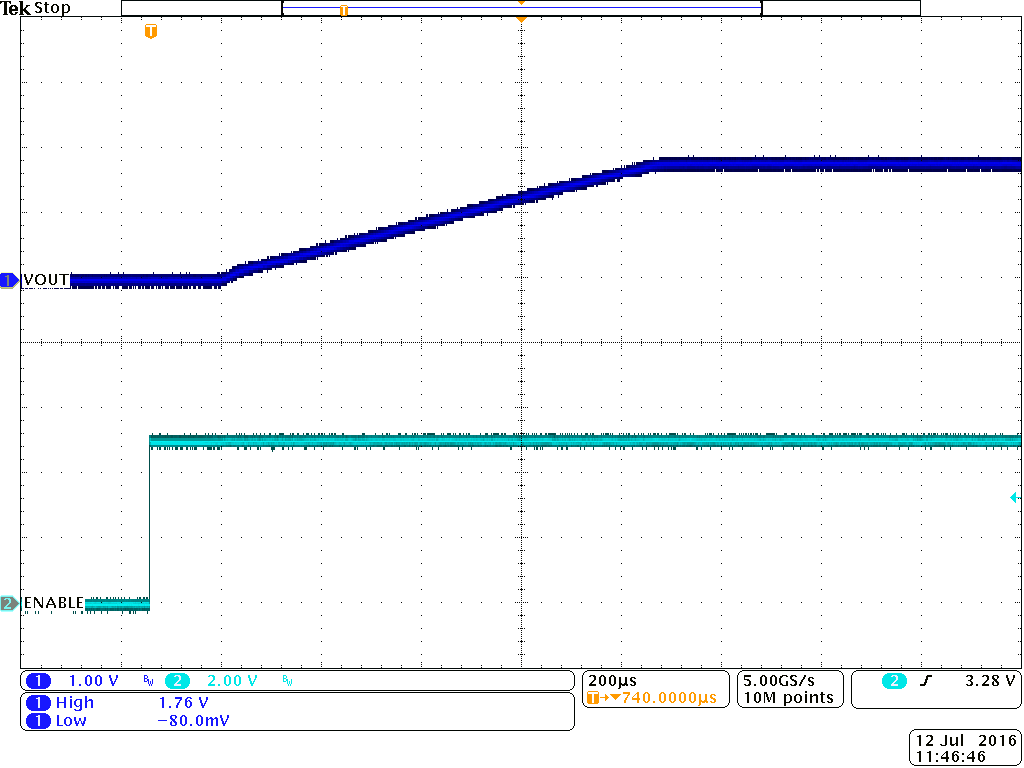

Vout = 1.8 V	PWM	Rload = 1 kΩ
		T_A= 25 °C

Figure 10-44 Start-Up Timing

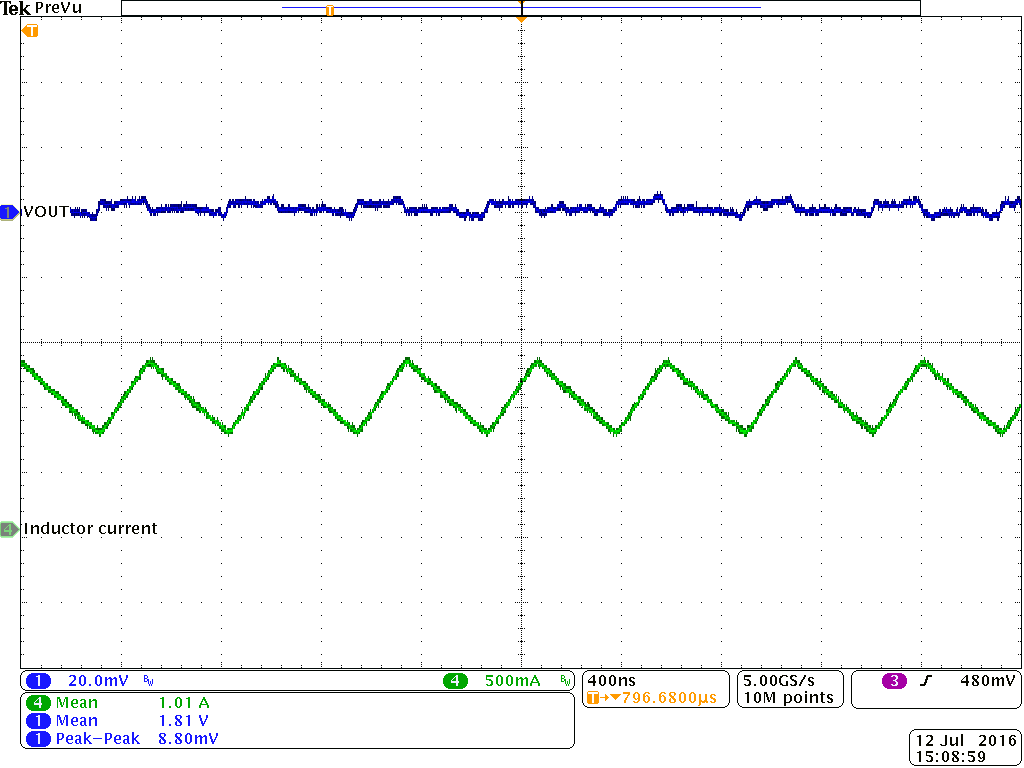

Vout = 1.8 V	PWM	Io = 1 A
		T_A= 25 °C

Figure 10-46 Output Voltage Ripple

Vout = 3.3 V	PWM	Io = 350 mA to 3.1 A
		T_A= 25 °C

Figure 10-48 Load Transient Response

Vin = 6 V to 8.4 V;	PWM	Io = 1 A
Vout = 3.3 V		T_A= 25 °C

Figure 10-50 Line Transient Response

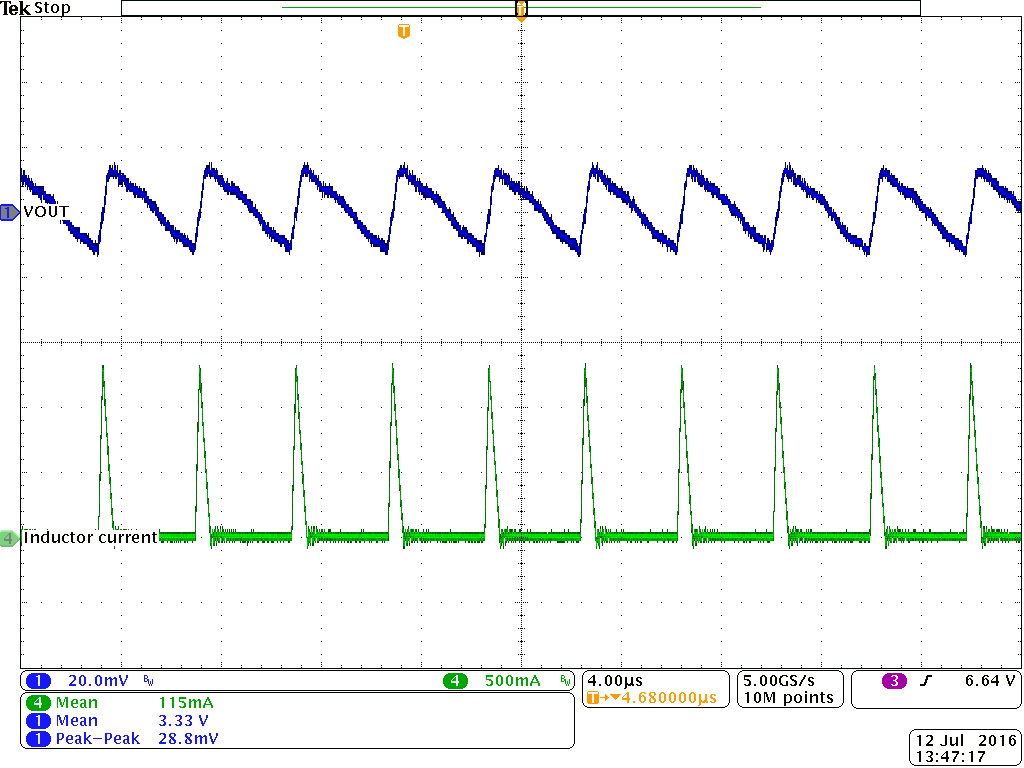

Vout = 3.3 V	PFM	Io = 0.1 A
		T_A= 25 °C

Figure 10-52 Output Voltage Ripple

Vout = 5 V	PFM	Io = 350 mA to 3.1 A
		T_A= 25 °C

Figure 10-54 Load Transient Response

Vin = 6 V to 8.4 V;	PFM	Io = 1 A
Vout = 5 V		T_A= 25 °C

Figure 10-56 Line Transient Response

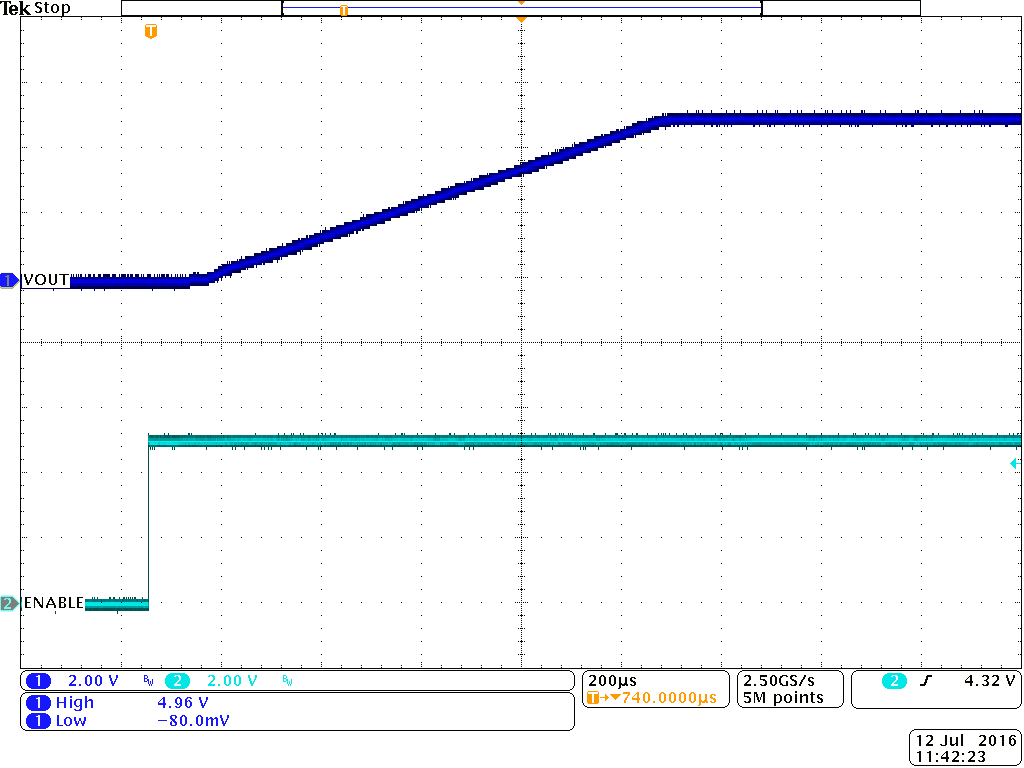

Vout = 5 V	PWM	Rload = 1 kΩ
		T_A= 25 °C

Figure 10-58 Start-Up Timing

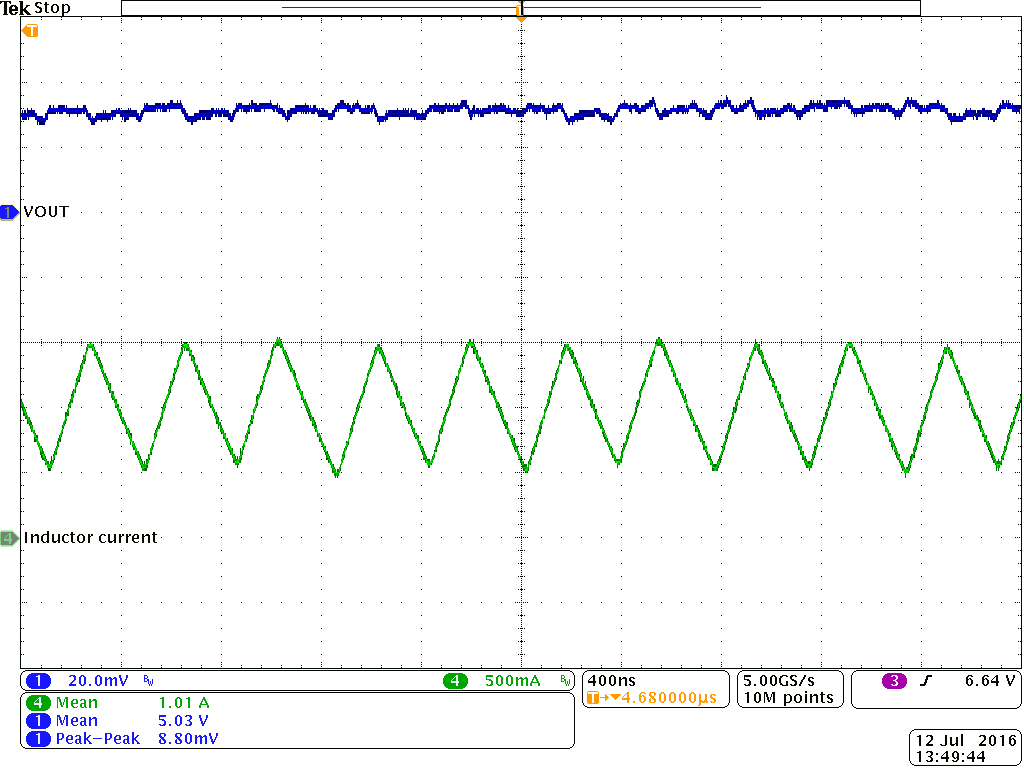

Vout = 5 V	PWM	Io = 1 A
		T_A= 25 °C

Figure 10-60 Output Voltage Ripple

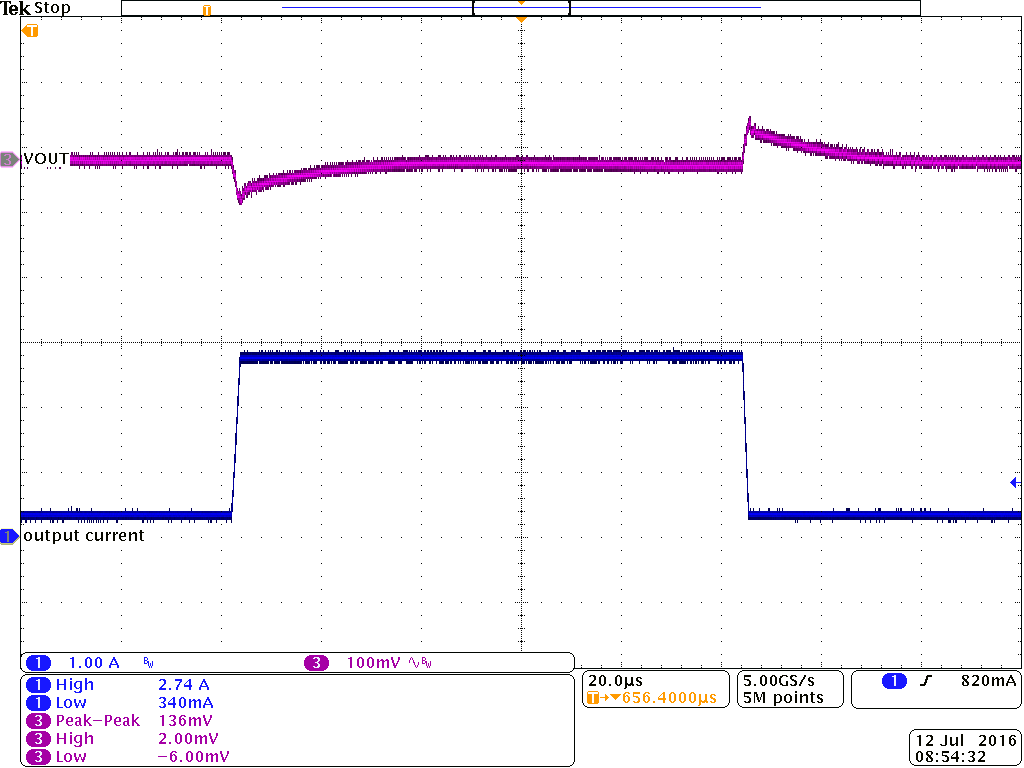

Vout = 9 V	PWM	Io = 300 mA to 2.7 A
		T_A= 25 °C

Figure 10-62 Load Transient Response

Vin = 12 V to 15 V;	PWM	Io = 1 A
Vout = 9 V		T_A= 25 °C

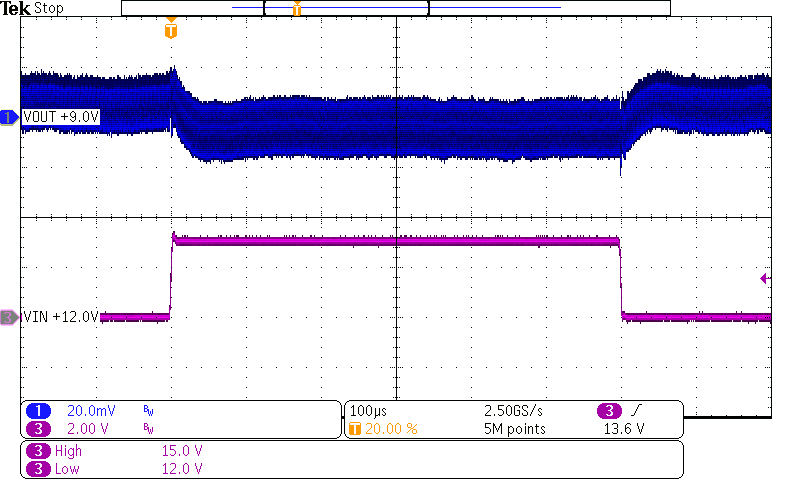

Figure 10-64 Line Transient Response

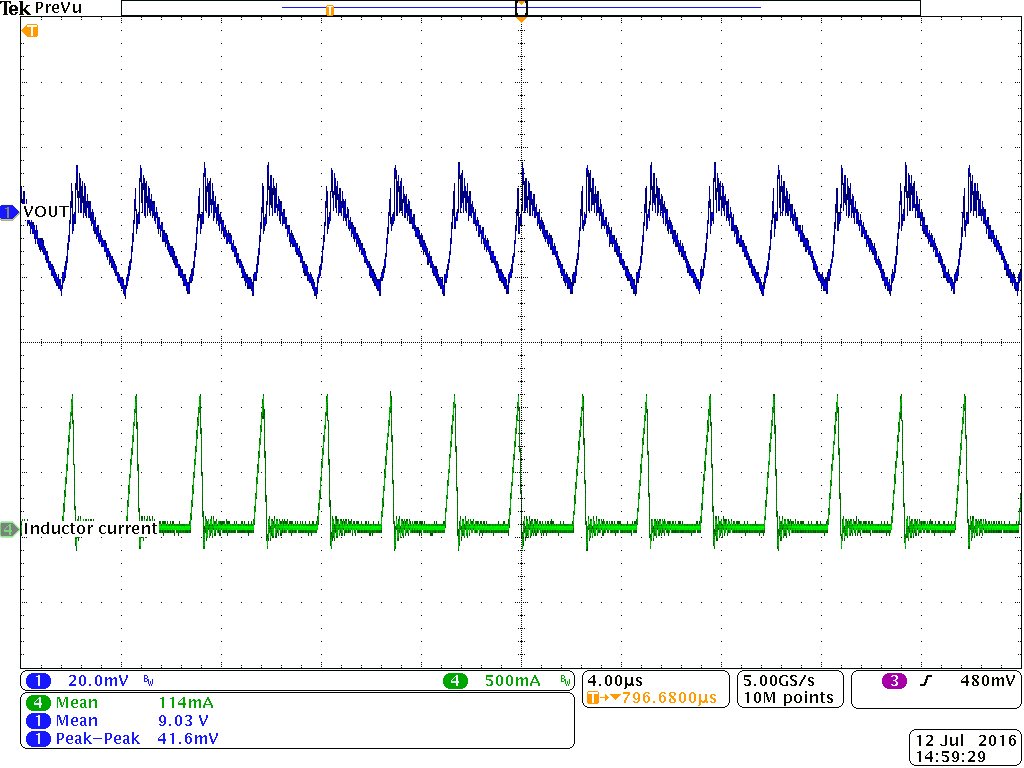

Vout = 9 V	PFM	Io = 0.1 A
		T_A= 25 °C

Figure 10-66 Output Voltage Ripple

Vout = 1.2 V	PWM	T_A= 25 °C

Figure 10-68 Switching Frequency vs Input Voltage

Vout = 1.8 V

PWM

T_A= 25 °C

Figure 10-70 Switching Frequency vs Input Voltage

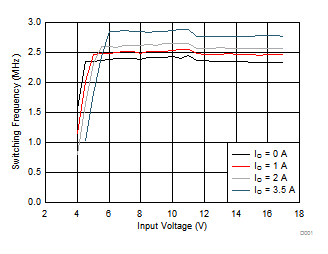

Vout = 3.3 V

PWM

T_A= 25 °C

Figure 10-72 Switching Frequency vs Input Voltage

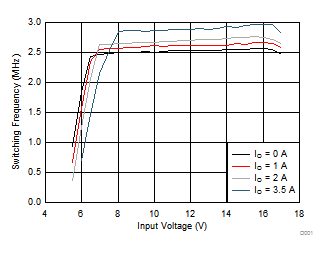

Vout = 5 V

PWM

T_A= 25 °C

Figure 10-74 Switching Frequency vs Input Voltage

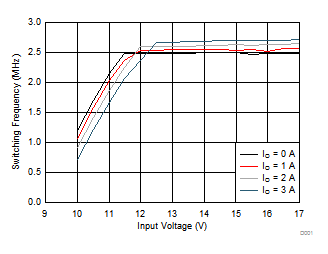

Vout = 9 V

PWM

T_A= 25 °C

Figure 10-76 Switching Frequency vs Input Voltage

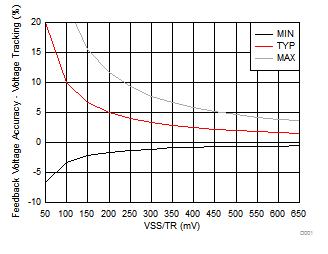

Figure 10-78 Feedback Voltage Accuracy with Voltage Tracking vs Voltage at SS/TR Pin
