9.3.4 Various Output Voltages
The following example circuits show how to use the various devices and configure the external circuitry to furnish different output voltages at 3 A.
Figure 9-43 5-V/3-A Power
Supply

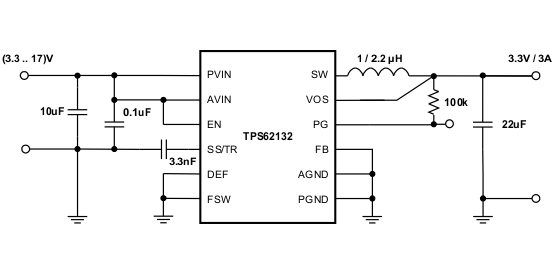

Figure 9-44 3.3-V/3-A Power
Supply

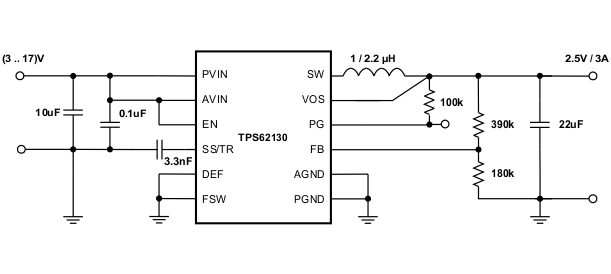

Figure 9-45 2.5-V/3-A Power
Supply

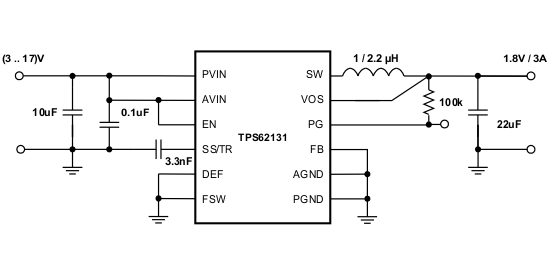

Figure 9-46 1.8-V/3-A Power
Supply
Figure 9-47 1.5-V/3-A Power
Supply

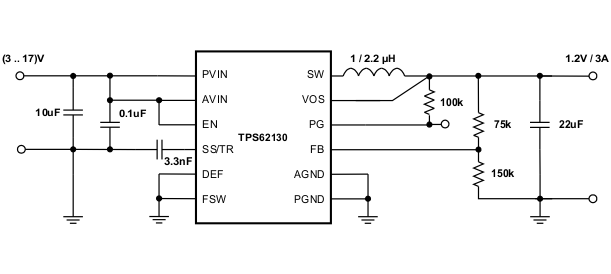

Figure 9-48 1.2-V/3-A Power
Supply
Figure 9-49 1-V/3-A Power
Supply
