9.2.2 Additional Application Circuits

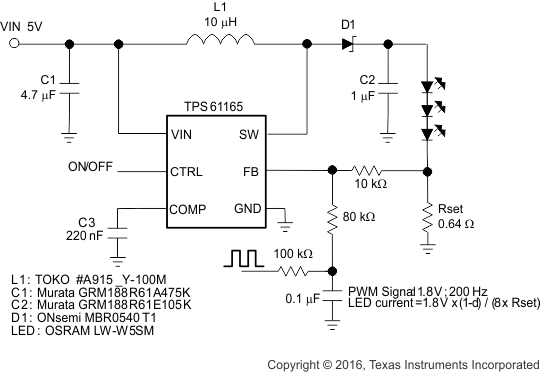

The TPS61165 can be configured to drive three high-brightness LEDs using an external PWM dimming network. Figure 16 shows an example application circuit.

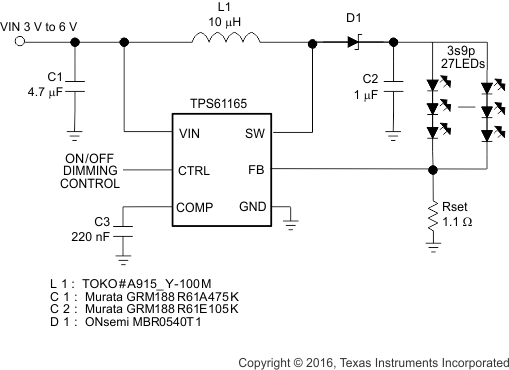

The TPS61165 can be configured to drive nine strings of three LEDs for media form factor displays. Figure 17 shows an example application circuit.
Figure 17. Drive 27 LEDs for Media Form-Factor Display The TPS61165 can be configured to drive six high-brightness LEDs in series. Figure 18 provides an example applications circuit.
Figure 18. Drive Six High-Brightness LEDs The TPS61165 can be configured to drive four high-brightness LEDs using SEPIC topology. An example application circuit can be found in Figure 19.
Figure 19. Drive Four High-Brightness LED With SEPIC Topology
