7.6 Typical Characteristics
Table 1. Table of Graphs
| FIGURE | ||
|---|---|---|
| Efficiency | 3 LEDs (VOUT = 12 V); VIN = 3, 5, 8.5 V; L = 10 μH | Figure 1 |
| Efficiency | 6 LEDs (VOUT = 24 V); VIN = 5, 8.5, 12 V; L = 10 μH | Figure 2 |
| Current limit | TA = 25°C | Figure 3 |
| Current limit | Figure 4 | |
| Easyscale step | Figure 13 | |
| PWM dimming linearity | VIN = 3.6 V; PWM Freq = 10 kHz and 32 kHz | Figure 14 |
| Output ripple at PWM dimming | 3 LEDs; VIN = 5 V; ILOAD = 350 mA; PWM = 32 kHz | Figure 15 |
| Switching waveform | 3 LEDs; VIN = 5 V; ILOAD = 3500 mA; L = 10 μH | Figure 5 |
| Start-up | 3 LEDs; VIN = 5 V; ILOAD = 350 mA; L = 10 μH | Figure 6 |
| Open LED protection | 8 LEDs; VIN = 3.6 V; ILOAD = 20 mA | Figure 7 |

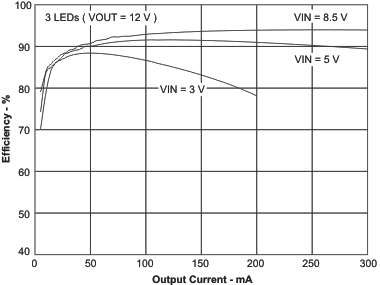

Figure 1. Efficiency vs Output Current

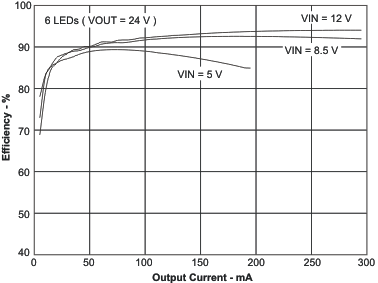

Figure 2. Efficiency vs Output Current

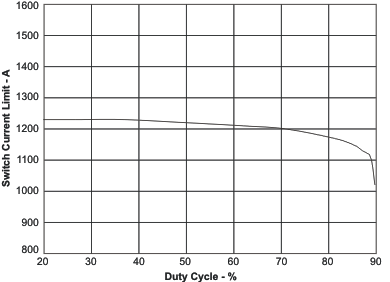

Figure 3. Switch Current Limit vs Duty Cycle
Figure 5. Switching Waveform
Figure 7. Open LED Protection
Figure 4. Switch Current Limit vs Temperature

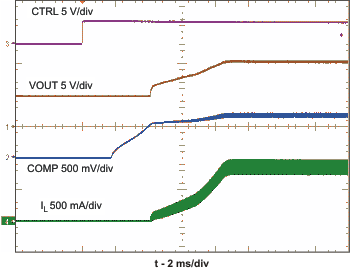

Figure 6. Start-Up
