7 Specifications
7.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted) (1)| MIN | MAX | UNIT | ||
|---|---|---|---|---|
| Input voltage on FB | –0.3 | 3.6 | V | |
| Input voltage on SWN | –0.3 | 12 | V | |
| Input voltage on SWP | –7 | 7 | V | |
| Maximum voltage between SWP and VOUT | –12 | V | ||
| Input voltage on VOUT, LDOIN, LDOOUT, LDOEN, LDOSENSE, PGOOD, LBO, VBAT, LBI, SKIPEN, EN | –0.3 | 7 | V | |
| Operating virtual junction temperature, TJ | –40 | 150 | °C | |
| Storage temperature, Tstg | –65 | 150 | °C | |
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
7.2 ESD Ratings
| VALUE | UNIT | |||
|---|---|---|---|---|
| V(ESD) | Electrostatic discharge | Human body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) | ±1000 | V |
| Charged-device model (CDM), per JEDEC specification JESD22-C101(2) | ±250 | |||
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
7.3 Recommended Operating Conditions
| MIN | NOM | MAX | UNIT | |
|---|---|---|---|---|
| Supply voltage at VBAT | 1.8 | 6.5 | V | |
| Operating free air temperature range, TA | –40 | 85 | °C | |
| Operating virtual junction temperature, TJ | –40 | 125 | °C |
7.4 Thermal Information
| THERMAL METRIC(1) | TPS61130, TPS61131, TPS61132 | TPS61130 | UNIT | |
|---|---|---|---|---|
| PW (TSSOP) | RSA (VQFN) | |||
| 16 PINS | 16 PINS | |||
| RθJA | Junction-to-ambient thermal resistance | 100.5 | 33.9 | °C/W |
| RθJC(top) | Junction-to-case (top) thermal resistance | 35.9 | 36.3 | °C/W |
| RθJB | Junction-to-board thermal resistance | 45.4 | 11 | °C/W |
| ψJT | Junction-to-top characterization parameter | 2.6 | 0.5 | °C/W |
| ψJB | Junction-to-board characterization parameter | 44.8 | 11 | °C/W |
| RθJC(bot) | Junction-to-case (bottom) thermal resistance | N/A | 2.2 | °C/W |
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953.
7.5 Electrical Characteristics
over recommended free-air temperature range and over recommended input voltage range (typical at an ambient temperature range of 25°C) (unless otherwise noted)| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | ||
|---|---|---|---|---|---|---|---|
| DC-DC STAGE | |||||||
| VI | Input voltage range | 1.8 | 6.5 | V | |||
| VO | Adjustable output voltage range (TPS61130) | 2.5 | 5.5 | V | |||
| Vref | Reference voltage | 485 | 500 | 515 | mV | ||
| f | Oscillator frequency | 400 | 500 | 600 | kHz | ||
| ISW | Switch current limit | VOUT = 3.3 V | 1100 | 1300 | 1600 | mA | |
| Start-up current limit | 0.4 x ISW | mA | |||||
| SWN switch on resistance | VOUT = 3.3 V | 200 | 350 | mΩ | |||
| SWP switch on resistance | VOUT = 3.3 V | 250 | 500 | mΩ | |||
| Total accuracy (including line and load regulation) | ±3% | ||||||
| DC-DC quiescent current |
into VBAT | IO = 0 mA, VEN = VBAT = 1.8 V, VOUT = 3.3 V, ENLDO = 0 V |
10 | 25 | μA | ||
| into VOUT | IO = 0 mA, VEN = VBAT = 1.8 V, VOUT = 3.3 V, ENLDO = 0 V |
10 | 25 | μA | |||
| DC-DC shutdown current | VEN= 0 V | 0.2 | 1 | μA | |||
| LDO STAGE | |||||||
| VI(LDO) | Input voltage range | 1.8 | 7 | V | |||
| VO(LDO) | Adjustable output voltage range (TPS61130) | 0.9 | 5.5 | V | |||
| IO(max) | Output current | 200 | 320 | mA | |||
| LDO short circuit current limit | 500 | mA | |||||
| Minimum voltage drop | IO = 200 mA | 300 | mV | ||||
| Total accuracy (including line and load regulation) |
IO ≥ 1 mA | ±3% | |||||
| Line regulation | LDOIN change from 1.8 V to 2.6 V at 100 mA, LDOOUT = 1.5 V |
0.6% | |||||
| Load regulation | Load change from 10% to 90%, LDOIN = 3.3 V |
0.6% | |||||
| LDO quiescent current | LDOIN = 7 V, VBAT = 1.8 V, EN = VBAT |
20 | 30 | μA | |||
| LDO shutdown current | LDOEN = 0 V, LDOIN = 7 V | 0.1 | 1 | μA | |||
| CONTROL STAGE | |||||||
| VIL | LBI voltage threshold | VLBI voltage decreasing | 490 | 500 | 510 | mV | |
| LBI input hysteresis | 10 | mV | |||||
| LBI input current | EN = VBAT or GND | 0.01 | 0.1 | μA | |||
| LBO output low voltage | VO = 3.3 V, IOI = 100 μA | 0.04 | 0.4 | V | |||
| LBO output low current | 100 | μA | |||||
| LBO output leakage current | VLBO = 7 V | 0.01 | 0.1 | μA | |||
| VIL | EN, SKIPEN input low voltage |
0.2 × VBAT | V | ||||
| VIH | EN, SKIPEN input high voltage |
0.8 × VBAT | V | ||||
| VIL | LDOEN input low voltage | 0.2 × VLDOIN | V | ||||
| VIH | LDOEN input high voltage | 0.8 × VLDOIN | V | ||||
| EN, SKIPEN input current | Clamped on GND or VBAT | 0.01 | 0.1 | μA | |||
| Power-Good threshold | VO = 3.3 V | 0.9 × Vo | 0.92 × Vo | 0.95 × Vo | V | ||
| Power-Good delay | 30 | μs | |||||
| Power-Good output low voltage | VO = 3.3 V, IOI = 100 μA | 0.04 | 0.4 | V | |||
| Power-Good output low current | 100 | μA | |||||
| Power-Good output leakage current | VPG = 7 V | 0.01 | 0.1 | μA | |||
| Overtemperature protection | 140 | °C | |||||
| Overtemperature hysteresis | 20 | °C | |||||
7.6 Typical Characteristics
Table 1. Table of Graphs
| SEPIC CONVERTER | FIGURE | ||
|---|---|---|---|

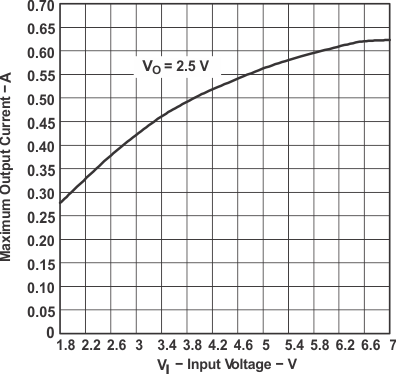

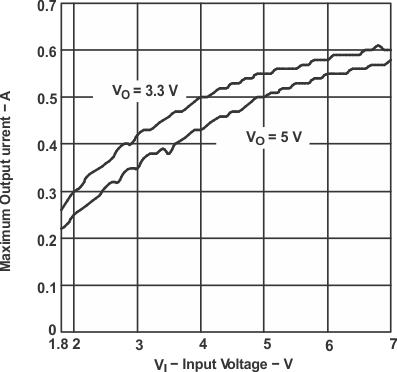

| Maximum output current | vs Input voltage (TPS61130) (VO = 3.3 V, 5 V, 2.5 V) | Figure 1 Figure 2 | |
| Efficiency | vs Output current (TPS61130) (VO = 2.5 V, VI = 1.8 V) | Figure 3 | |

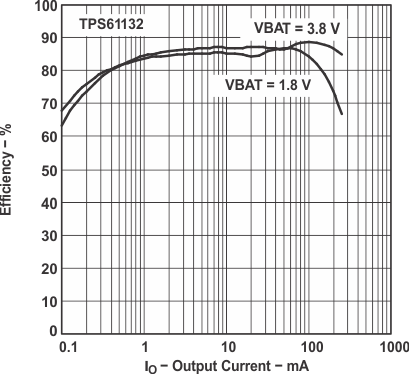

| vs Output current (TPS61132) (VO = 3.3 V, VI = 1.8 V, 3.8 V) | Figure 4 | ||

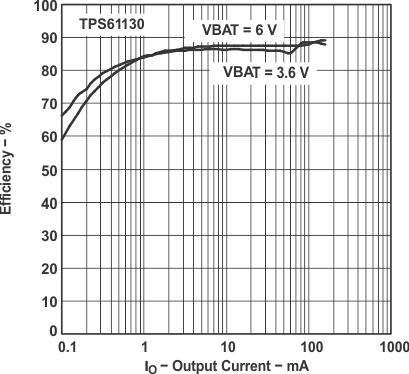

| vs Output current (TPS61130) (VO = 5 V, VI = 3.6 V, 6 V) | Figure 2 | ||

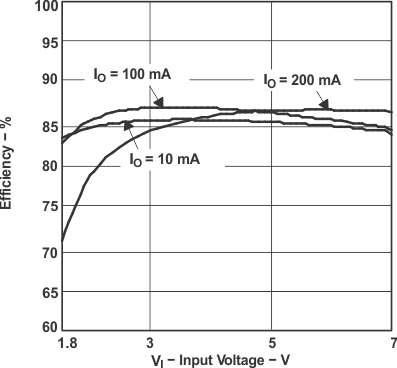

| vs Input voltage (TPS61132) | Figure 5 | ||
| Output voltage | vs Output current (TPS61132) | Figure 6 | |

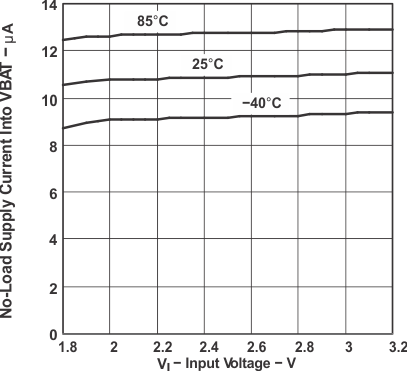

| No-load supply current into VBAT | vs Input voltage (TPS61132) | Figure 7 | |

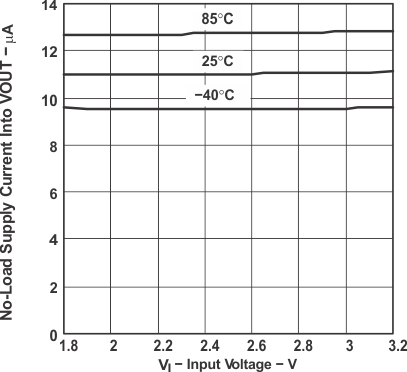

| No-load supply current into VOUT | vs Input voltage (TPS61132) | Figure 8 | |
| LDO | |||

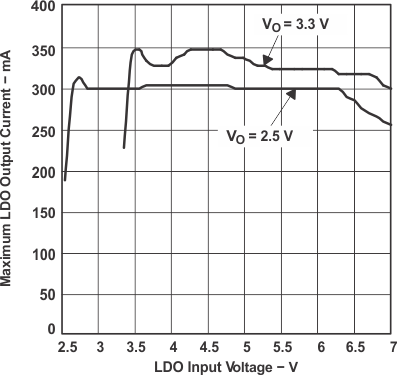

| Maximum output current | vs Input voltage (VO = 2.5 V, 3.3 V) | Figure 9 | |

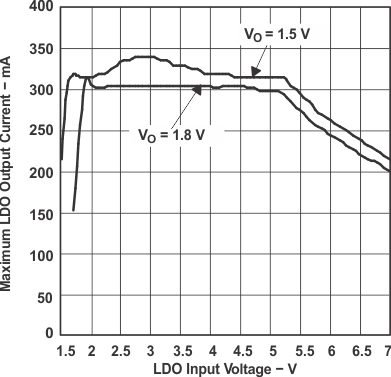

| vs Input voltage (VO = 1.5 V, 1.8 V) | Figure 10 | ||

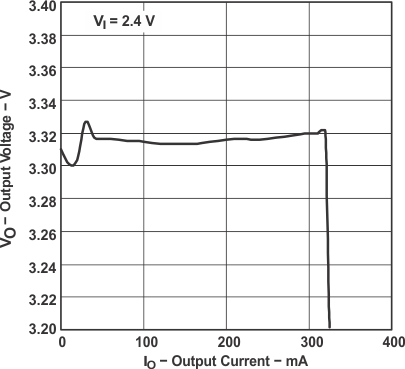

| Output voltage | vs Output current (TPS61131) | Figure 11 | |

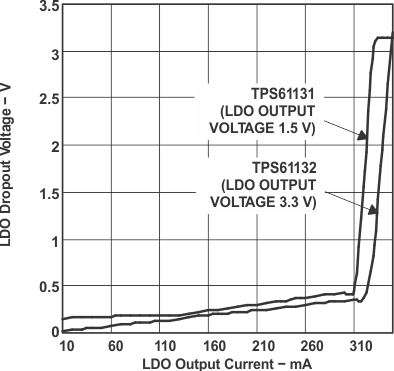

| Dropout voltage | vs Output current (TPS61131, TPS61132) | Figure 12 | |

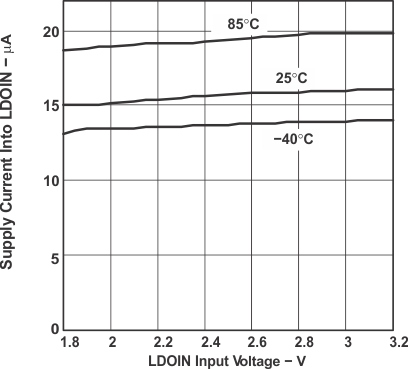

| Supply current into LDOIN | vs LDOIN input voltage (TPS61132) | Figure 13 | |

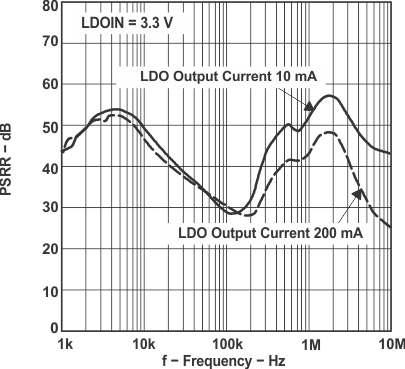

| PSRR | vs Frequency (TPS61132) | Figure 14 | |
