6 Pin Configuration and Functions

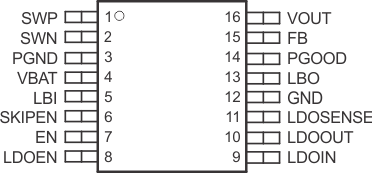

PW Package
16-Pin TSSOP
Top View
RSA Package
16-Pin VQFN With Thermal Pad
Top View
Pin Functions
| PIN | I/O | DESCRIPTION | ||
|---|---|---|---|---|
| NAME | NO. | |||
| TSSOP | VQFN | |||
| EN | 7 | 5 | I | DC-DC-enable input. (1/VBAT enabled, 0/GND disabled) |
| FB | 15 | 13 | I | DC-DC voltage feedback of adjustable versions |
| GND | 12 | 10 | — | Control/logic ground |
| LBI | 5 | 3 | I | Low battery comparator input (comparator enabled with EN) |
| LBO | 13 | 11 | O | Low battery comparator output (open drain) |
| LDOEN | 8 | 6 | I | LDO-enable input (1/LDOIN enabled, 0/GND disabled) |
| LDOOUT | 10 | 8 | O | LDO output |
| LDOIN | 9 | 7 | I | LDO input |
| LDOSENSE | 11 | 9 | I | LDO feedback for voltage adjustment, must be connected to LDOOUT at fixed output voltage versions. |
| PGND | 3 | 1 | — | Power ground |
| PGOOD | 14 | 12 | O | DC-DC output power good (1:good, 0:failure) (open drain) |
| SKIPEN | 6 | 4 | I | Enable/disable power save mode (1/VBAT enabled, 0/GND disabled) |
| SWN | 2 | 16 | I | DC-DC switch input |
| SWP | 1 | 15 | I | DC-DC rectifying switch input |
| VBAT | 4 | 2 | I | Supply pin |
| VOUT | 16 | 14 | O | DC-DC output |
| Thermal Pad | — | Must be soldered to achieve appropriate power dissipation. Should be connected to PGND. | ||
