8 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality.
8.1 Application Information
The TPS56121 is a highly-integrated synchronous step-down DC-DC converter. It is used to convert a higher DC input voltage (4.5 V to 14 V recommended) to a lower DC output voltage (as low as 0.6 V), with a maximum output current of 15 A, for a variety of applications.
8.2 Typical Application
This design example describes a 15-A, 12-V to 1.0-V design using the TPS56121 high-current integrated buck converter. The system specifications are listed in Table 1. Use the following design procedure to select key component values for this device.
Figure 20. Design Example Schematic
8.2.1 Design Requirements
Table 1. TPS56121 Design Example Parameters
| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|
| VIN | Input voltage | 8 | 12 | 14 | V | |
| VIN(ripple) | Input ripple | IOUT = 15 A | 0.15 | V | ||
| VOUT | Output voltage | 0 A ≤ IOUT ≤ 15 A | 0.98 | 1.00 | 1.02 | V |
| Line regulation | 8 V ≤ VIN ≤ 14 V | 0.1% | ||||
| Load regulation | 0 A ≤ IOUT ≤ 15 A | 0.5% | ||||
| VRIPPLE | Output ripple | IOUT= 15 A | 20 | mV | ||
| VOVER | Output overshoot | ITRAN = 5 A | 50 | mV | ||
| VUNDER | Output undershoot | ITRAN = 5 A | 50 | mV | ||
| IOUT | Output current | 8 V ≤ VIN ≤ 14 V | 0 | 15 | A | |
| tSS | Soft-start time | VIN = 12 V | 2.0 | ms | ||
| IOUT(max) | Short- circuit current trip point | 20 | A | |||
| η | Efficiency | VIN = 12 V, IOUT = 15 A | 90% | |||
| fSW | Switching frequency | 500 | kHz | |||
8.2.2 Detailed Design Procedure
Table 2. List of Materials for TPS56121 Design Example
| REFERENCE DESiGNATOR |
QTY | VALUE | DESCRIPTION | SIZE | PART NUMBER | MANUFACTURER |
|---|---|---|---|---|---|---|
| C1, C2, C3, C4 | 4 | 22 µF | Capacitor, Ceramic, 25 V, X5R, 20% | 1210 | Std | Std |
| C5, C11 | 2 | 1.0 µF | Capacitor, Ceramic, 25V, X7R, 20% | 0805 | Std | Std |
| C6 | 0 | 100 µF | Capacitor, Aluminum, 16 VDC, ±20% | Code D8 | EEEFP1C101AP | Panasonic |
| C7, C8, C9, C10, C19 | 5 | 100 µF | Capacitor, Ceramic, 6.3V, X5R, 20% | 1210 | Std | Std |
| C12 | 1 | 4.7 µF | Capacitor, Ceramic, 10 V, X5R, 20% | 0805 | Std | Std |
| C13 | 1 | 33 nF | Capacitor, Ceramic, 16 V, X7R, 20% | 0603 | Std | Std |
| C14 | 1 | 100 nF | Capacitor, Ceramic, 50 V, X7R, 20% | 0603 | Std | Std |
| C15 | 1 | 2200 pF | Capacitor, Ceramic, 50 V, X7R, 10% | 0603 | Std | Std |
| C16 | 1 | 100 pF | Capacitor, Ceramic, 50 V, C0G, 5% | 0603 | Std | Std |
| C17 | 1 | 680 pF | Capacitor, Ceramic, 50 V, C0G, 5% | 0603 | Std | Std |
| C18 | 1 | 1000 pF | Capacitor, Ceramic, 50 V, X7R, 20% | 0603 | Std | Std |
| C20, C21 | 0 | 100 µF | Capacitor, Ceramic, 6.3 V, X5R, 20% | 1210 | Std | Std |
| J1, J2 | 2 | Terminal Block, 4-pin, 15 A, 5.1 mm | 0.80 x 0.35 inch | ED120/4DS | OST | |
| J3 | 1 | Header, Male 2-pin, 100mil spacing | 0.100 inch x 2 | PEC02SAAN | Sullins | |
| L1 | 1 | 440 nH | Inductor, 440 nH, 30A, 0.32 mΩ | 0.530 x 0.510 inch | PA0513.441NLT | Pulse |
| R1 | 1 | 1.78 kΩ | Resistor, Chip, 1/16W, 1% | 0603 | Std | Std |
| R2 | 1 | 5.10 Ω | Resistor, Chip, 1/16W, 1% | 0603 | Std | Std |
| R3 | 1 | 7.87 kΩ | Resistor, Chip, 1/16W, 1% | 0603 | Std | Std |
| R4 | 1 | 20.5 kΩ | Resistor, Chip, 1/16W, 1% | 0603 | Std | Std |
| R5 | 1 | 49.9 Ω | Resistor, Chip, 1/16W, 1% | 0603 | Std | Std |
| R6 | 1 | 1.00 kΩ | Resistor, Chip, 1/16W, 1% | 0603 | Std | Std |
| R7 | 1 | 30.1 kΩ | Resistor, Chip, 1/16W, 1% | 0603 | Std | Std |
| R8 | 1 | 0 Ω | Resistor, Chip, 1/16 W, 1% | 0603 | Std | Std |
| R9 | 1 | 1.00 Ω | Resistor, Chip, 1/8 W, 1% | 0805 | Std | Std |
| R10 | 1 | 100 kΩ | Resistor, Chip, 1/16W, 1% | 0603 | Std | Std |
| TP1, TP3, TP11 | 3 | Test Point, Red, Thru Hole | 0.125 x 0.125 inch | 5010 | Keystone | |
| TP2, TP4, TP8, TP9, TP12 | 5 | Test Point, Black, Thru Hole | 0.125 x 0.125 inch | 5011 | Keystone | |
| TP5, TP6 | 2 | Test Point, Yellow, Thru Hole | 0.125 x 0.125 inch | 5014 | Keystone | |
| TP7, TP10 | 2 | Test Point, White, Thru Hole | 0.125 x 0.125 inch | 5012 | Keystone | |
| U1 | 1 | 4.5-V to 14-V input, 15-A, synchronous buck converter | QFN-22 6 × 5 mm |
TPS56121DQP | TI |
8.2.2.1 Switching Frequency Selection
To achieve a balance between small size and high efficiency for this design, use switching frequency of 500 kHz.
8.2.2.2 Inductor Selection (L1)
Synchronous buck power inductors are typically sized for between approximately 20% and 40% peak-to-peak ripple current (IP-P).
Using this target ripple current, the required inductor size can be calculated as shown in Equation 3.
Selecting a standard 440-nH inductor value, IP-P = 4.2 A.
The RMS current through the inductor is approximated in Equation 4.
8.2.2.3 Output Capacitor Selection
The output transient response typically drives the selection of the output capacitor. For applications where VIN(min) > 2 × VOUT, use overshoot to calculate the minimum output capacitance, as shown in Equation 5.
For applications where VIN(min) < 2 × VOUT, use overshoot to calculate the minimum output capacitance. The equation is shown in Equation 6
In order to meet the low ESR and high capacitance requirements, this design uses five 100-µF, 1210 ceramic capacitors. With a minimum capacitance, maximum ripple voltage determines the maximum allowable ESR. The ESR is approximated in Equation 7.
8.2.2.4 Inductor Peak Current Rating
With output capacitance, it is possible to calculate the charge current during start-up and determine the minimum saturation current rating for the inductor. Equation 8 approximates the start-up charging current (ICHARGE).
Equation 9 approximates the peak current in the inductor, IL(peak).
With the short circuit current trip point IOUT(max) set at 20 A, the maximum allowable peak current IL_PEAK(max) is shown in Equation 10.
The selection of output capacitor meets the maximum allowable peak current requirement.
Table 3. Inductor Requirements Summary
| PARAMETER | VALUE | UNIT | |
|---|---|---|---|
| L | Inductance | 440 | nH |
| IL(rms) | RMS current (thermal rating) | 15.1 | A |
| IL_PEAK(max) | Peak current (saturation rating) | 22.1 | A |
Thie design uses a PA0513.441NLT, 440-nH, 0.32-mΩ, 30-A inductor.
8.2.2.5 Input Capacitor Selection
The input voltage ripple is divided between capacitance and ESR. For this design VIN_RIPPLE(CAP) = 100 mV and VIN_RIPPLE(ESR) = 50 mV. Use Equation 11 to estimate the minimum capacitance. Use Equation 12 to estimate the maximum ESR.
Equation 13 estimates the RMS current in the input capacitors.
Four 1210, 22-µF, 25-V, X5R, ceramic capacitors with approximately 2.5-mΩ ESR and a 2.5-A RMS current rating are selected. Higher voltage capacitors are selected to minimize capacitance loss at the DC bias voltage to ensure the capacitors will have sufficient capacitance at the working voltage while a 1.0-µF capacitor in smaller case size is used to reduce high frequency noise from the MOSFET switching.
8.2.2.6 Bootstrap Capacitor (C14)
The bootstrap capacitor maintains power to the high-side driver during the high-side switch ON time. Per the requirements of the integrated MOSFET, the value of CBOOT is 100 nF with a minimum 10-V rating.
8.2.2.7 Bootstrap Resistor (R2)
The bootstrap resistor slows the rising edge of the SW voltage to reduce ringing and improve EMI. Per the datasheet recommendation a 5.1-Ω resistor is selected.
8.2.2.8 RC Snubber (R9 and C18)
To effectively limit the switch node ringing, select a 1.0-Ω resistor and a 1000-pF capacitor
8.2.2.9 VDD Bypass Capacitor (C11)
Per the data sheet recommended pin terminations, bypass VDD to GND with a 1.0-µF capacitor.
8.2.2.10 BP5 Bypass Capacitor (C12)
Per the data sheet recommended pin functions, bypass BP5 to GND with a capacitor with a value of at least 1.0-µF. For additional filtering and noise immunity, select a 4.7-µF capacitor.
8.2.2.11 Soft-Start Capacitor (C13)
The soft-start capacitor provides a constant ramp voltage to the error amplifier to provide controlled, smooth start-up. The soft-start capacitor is sized using Equation 14.
8.2.2.12 Current Limit (R1)
The TPS56221 uses the negative drop across the internal low-side FET at the end of the OFF-time to measure the valley of the inductor current. Allowing for a minimum 20-A, or 30% over maximum load, the programming resistor is selected using Equation 15.
Select a standard 1.78-kΩ resistor from the E-48 series.
8.2.2.13 Feedback Divider (R4, R7)
The TPS56121 converter uses a full operational amplifier with an internally fixed 0.600-V reference. R4 is selected between 10 kΩ and 50 kΩ for a balance of feedback current and noise immunity. With R4 set to 20.5 kΩ, program the output voltage with a resistor divider as calculated in Equation 16.
Select a standard 30.1-kΩ resistor from the E-48 series.
8.2.2.14 Compensation (C15, C16, C17, R3, R6)
Using the TPS40k Loop Stability Tool for 50 kHz of bandwidth and 60 degrees of phase margin with an R4 value of 20.5 kΩ, the design yields the following values.
- C17 = C_1 = 680 pF
- C15 = C_2 = 2200 pF
- C16 = C_3 = 100 pF
- R6 = R_2 = 1.00 kΩ
- R3 = R_3 = 7.87 kΩ
8.2.3 Application Curves
Output voltage 12 V to 1.0 V at 0-A to 15-A input current.

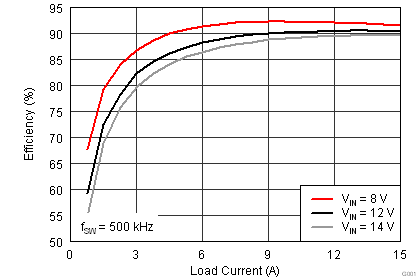

Figure 21. Efficiency vs Load Current

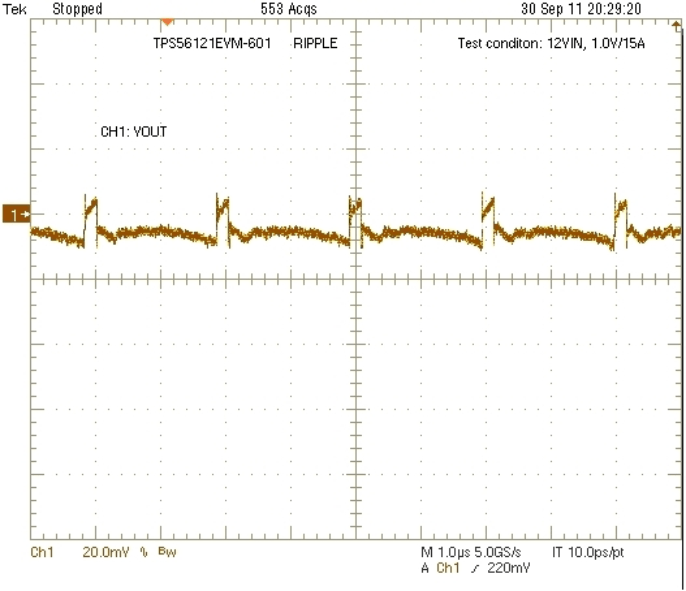

Figure 23. Output Ripple 20 mV/div, 1.0 µs/div, 20 MHz Bandwidth, AC Coupled

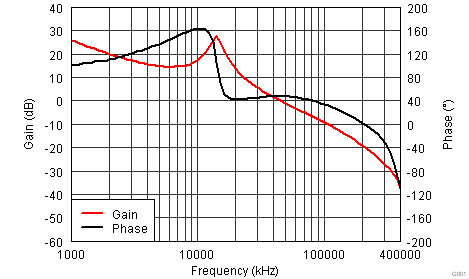

Figure 22. Loop Response, 47-kHz Bandwidth,48° Phase Margin
