6.6 Typical Characteristics
VIN = 5 V, TA = 25°C (unless otherwise noted)

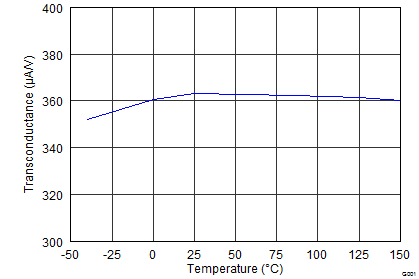

Figure 6-1 Error Amplifier Transconductance vs Temperature

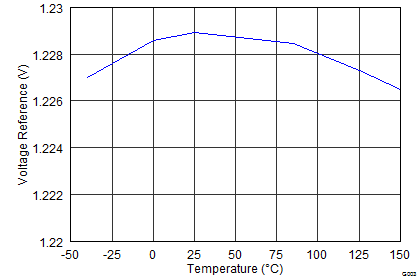

Figure 6-3 Feedback Voltage Reference vs Temperature

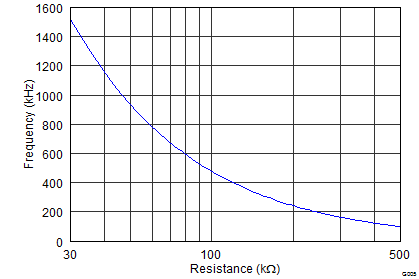

Figure 6-5 Frequency vs FREQ Resistance
Figure 6-7 Minimum Switching Frequency for Quick Recovery from Frequency Foldback

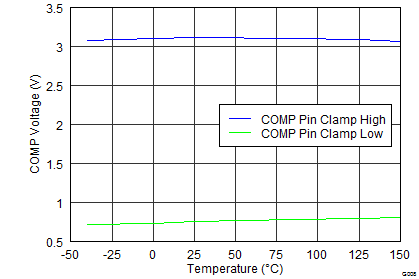

Figure 6-9 COMP Clamp Voltage vs Temperature

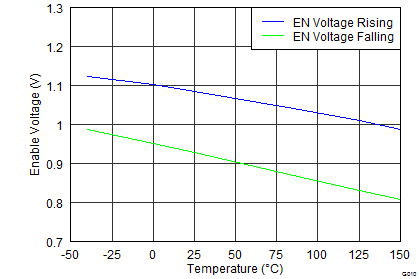

Figure 6-11 Enable Voltage vs Temperature

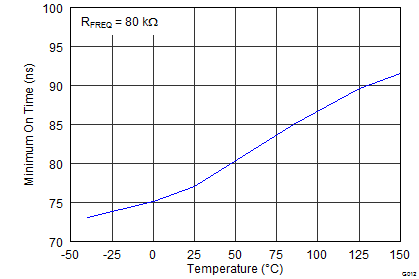

Figure 6-13 Minimum On-Time vs Temperature

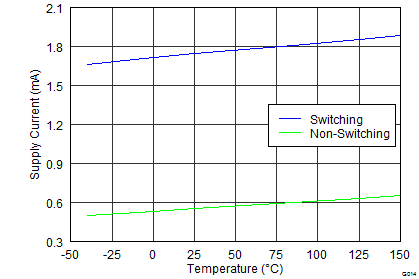

Figure 6-15 Supply Current vs Temperature

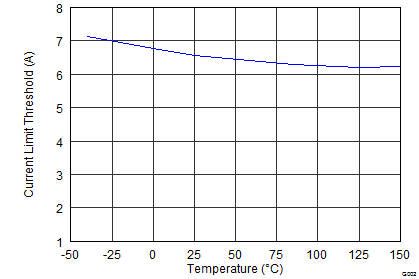

Figure 6-2 Switch Current Limit vs Temperature

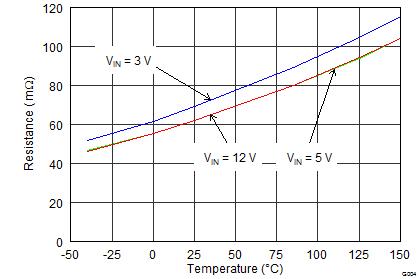

Figure 6-4 RDS(ON) vs Temperature

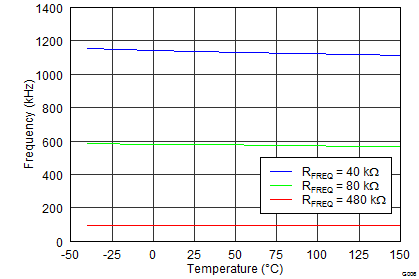

Figure 6-6 Frequency vs Temperature

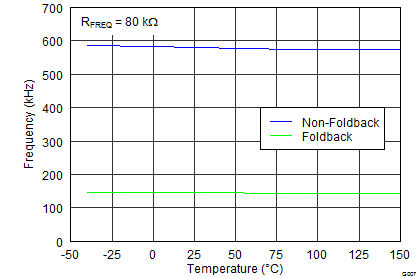

Figure 6-8 Nonfoldback Frequency vs Foldback Frequency

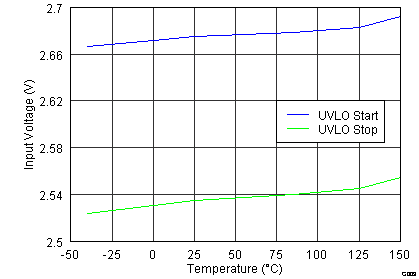

Figure 6-10 Input Voltage UVLO vs Temperature

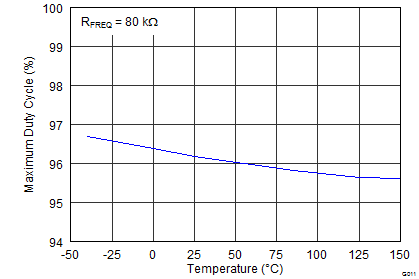

Figure 6-12 Maximum Duty Cycle vs Temperature

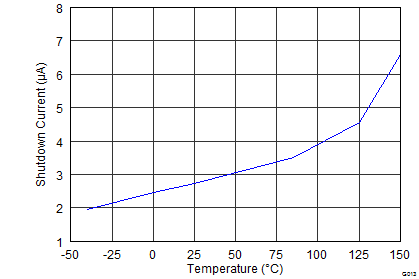

Figure 6-14 Shutdown Current vs Temperature
