6.7 Typical Characteristics
VIN = 12 V, TA = 25°C, fSW = 400 kHz,
unless otherwise noted.
VIN = 12 V, TA = 25°C, fSW = 400 kHz,
unless otherwise noted.
Figure 6-1 Efficiency vs Output Current,
VOUT = 5 V, FPWM. VIN = 12 V, TA = 25°C, fSW = 400 kHz, unless otherwise noted.
Figure 6-1 Efficiency vs Output Current, VOUT = 5 V, FPWM. VIN = 12 V, TA = 25°C, fSW = 400 kHz, unless otherwise noted.
Figure 6-3 Efficiency vs Output
Current, VOUT = 9 V, FPWM
Figure 6-5 Efficiency vs Output
Current, VOUT = 12 V, FPWM
Figure 6-7 Efficiency vs Output
Current, VOUT = 15 V, FPWM
Figure 6-9 Efficiency vs Output
Current, VOUT = 20 V, FPWM

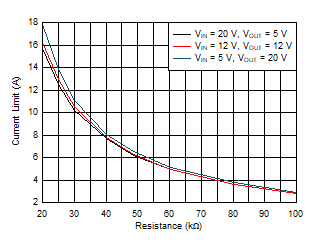

Figure 6-11 Average Inductor Current
Limit vs Setting Resistance
Figure 6-13 Reference Voltage vs
Temperature (VREF = 0.282 V)

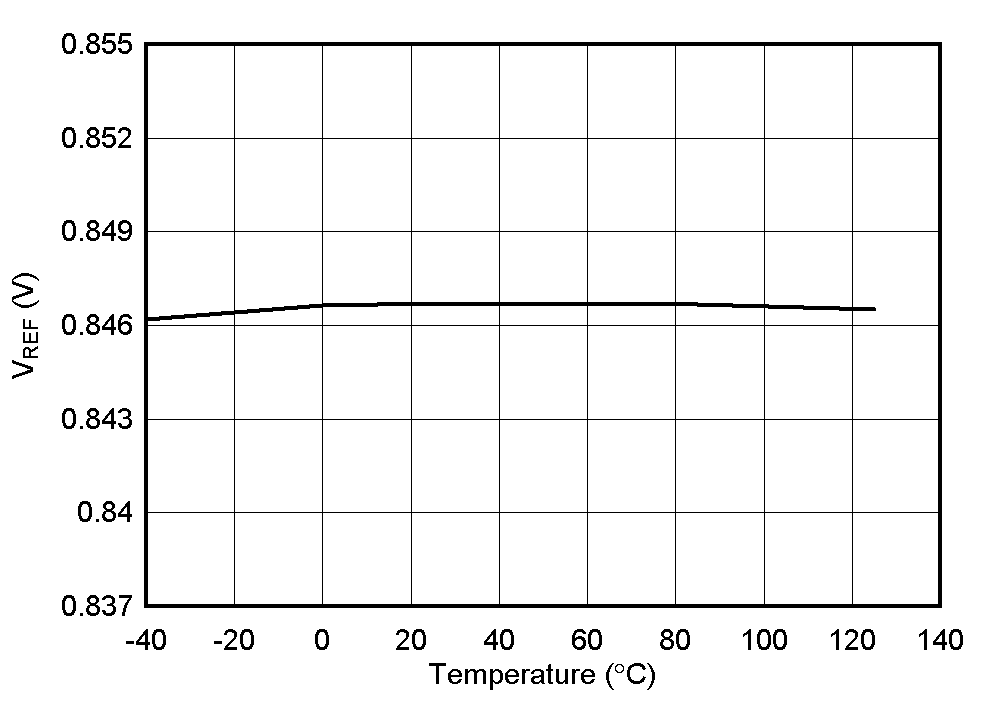

Figure 6-15 Reference Voltage vs
Temperature (VREF = 0.846 V)
Figure 6-17 Quiescent Current vs
Temperature
Figure 6-19 ENABLE/UVLO Rising
Threshold vs Temperature
Figure 6-21 CDC Voltage vs Output
Current with RSENSE = 10 mΩ
Figure 6-2 Efficiency vs Output Current, VOUT = 5 V, PFM
Figure 6-4 Efficiency vs Output
Current, VOUT = 9 V, PFM
Figure 6-6 Efficiency vs Output
Current, VOUT = 12 V, PFM
Figure 6-8 Efficiency vs Output
Current, VOUT = 15 V, PFM
Figure 6-10 Efficiency vs Output
Current, VOUT = 20 V, PFM
Figure 6-12 Switching Frequency vs
Setting Resistance

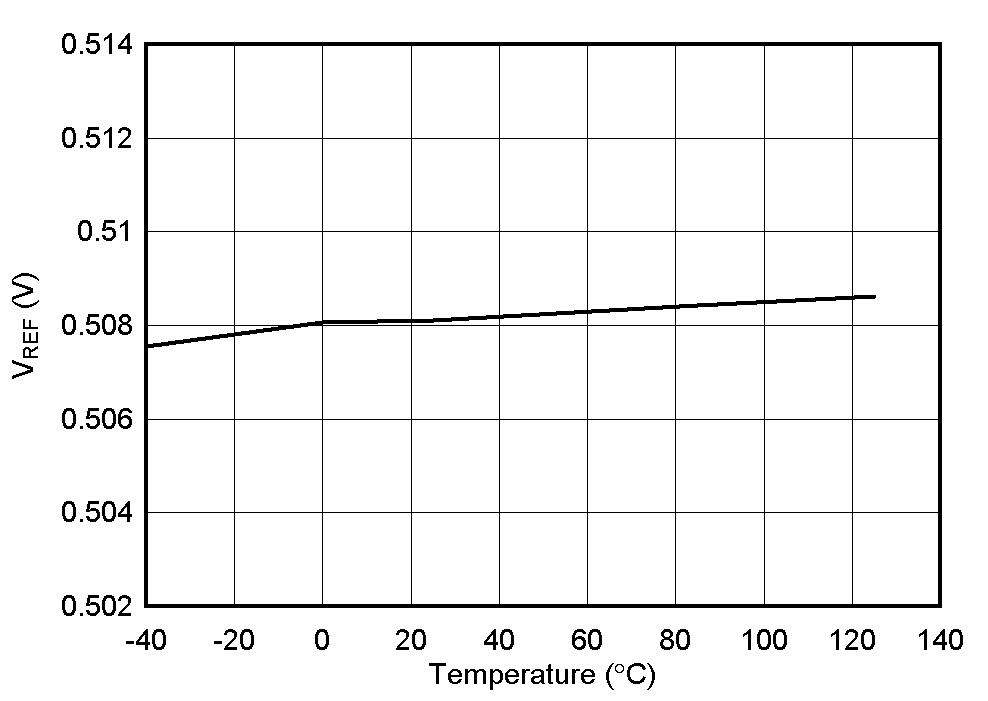

Figure 6-14 Reference Voltage vs
Temperature (VREF = 0.508 V)

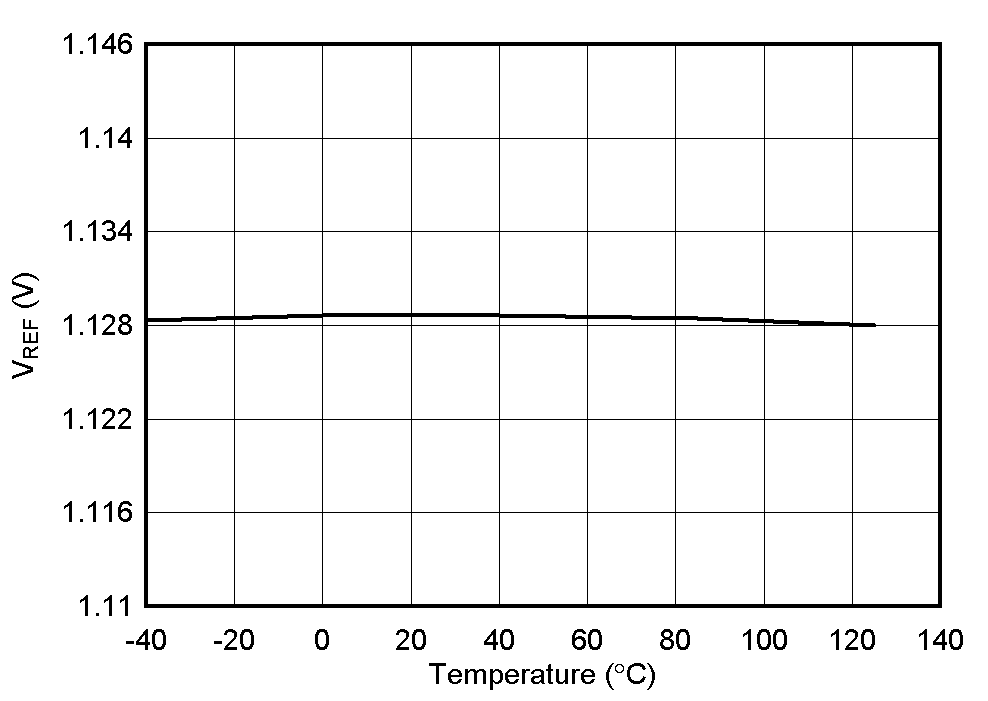

Figure 6-16 Reference Voltage vs
Temperature (VREF = 1.129 V)

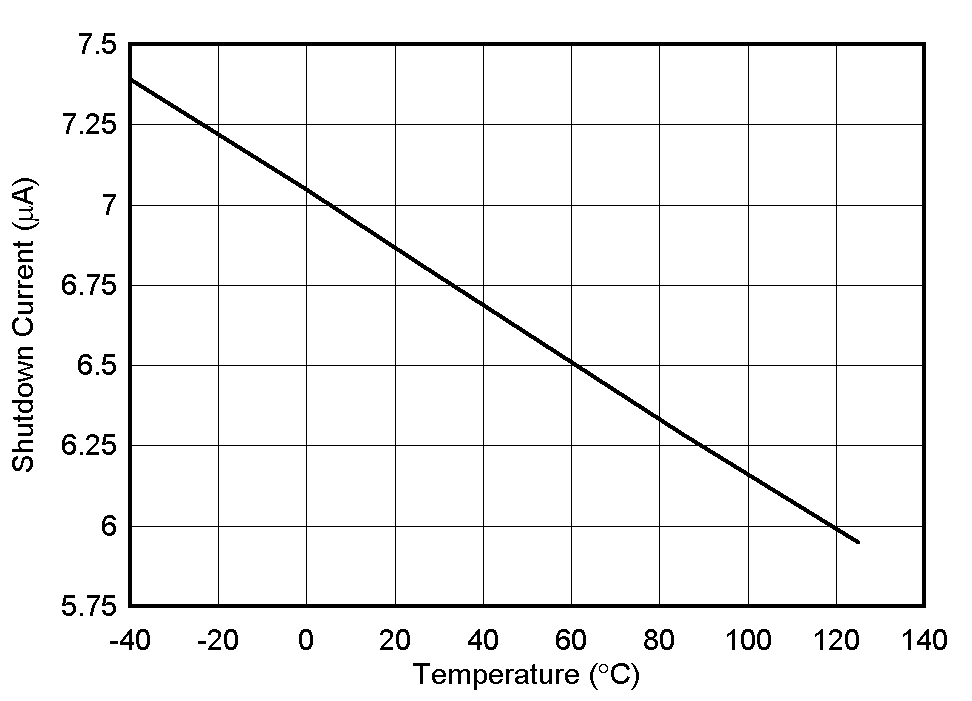

Figure 6-18 Shutdown Current vs
Temperature
Figure 6-20 Switching Frequency vs
Temperature
