6.6 Typical Characteristics

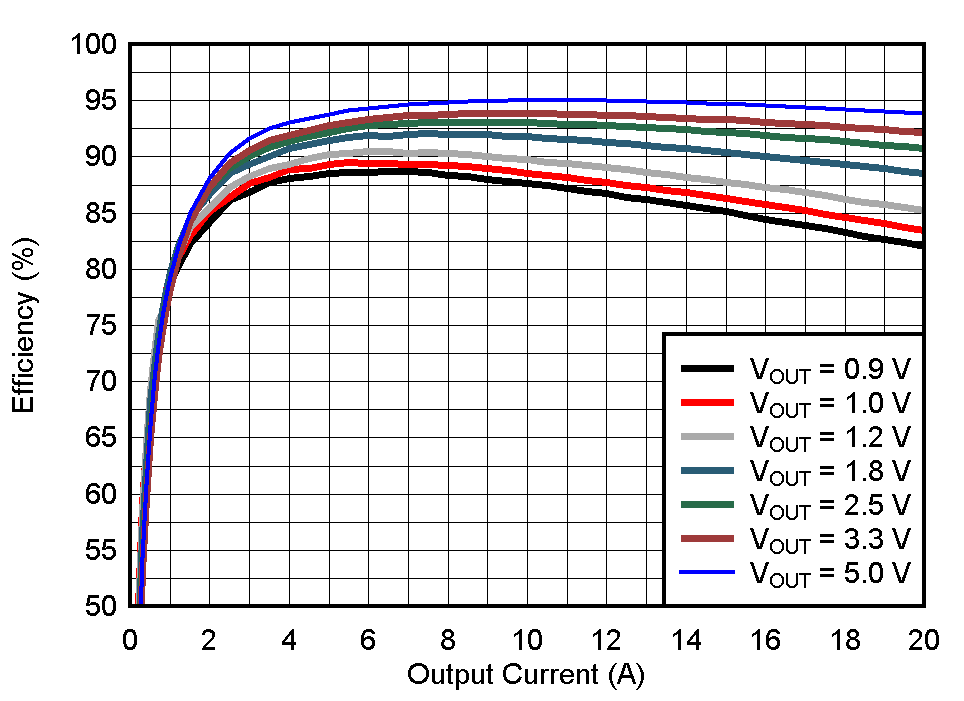

Figure 6-1 Efficiency vs
Output Current, 12 VIN, 800 kHz, DCM, VCC =
Int

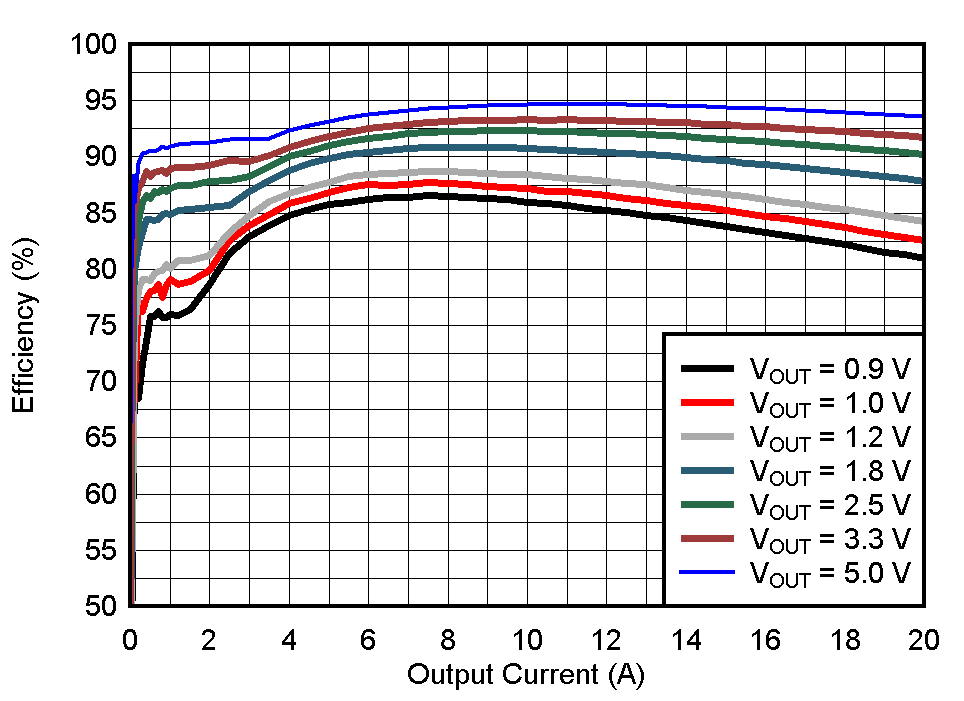

Figure 6-3 Efficiency vs
Output Current, 12 VIN, 800 kHz, FCCM, VCC =
Int

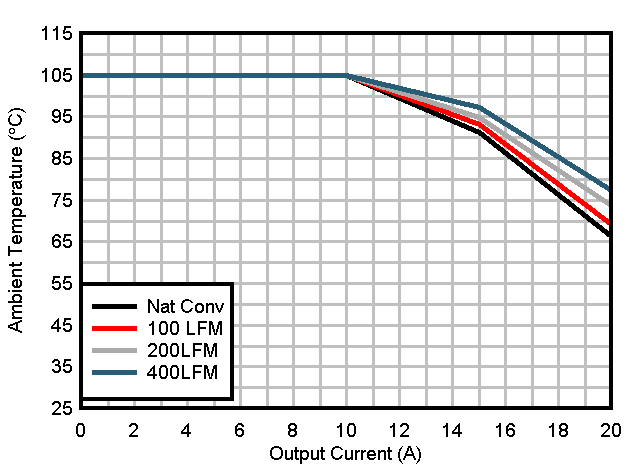

| Vin = 12 V | Vout = 1 V | Int Vcc |
| 300 nH | 800 kHz |
| Vin = 12 V | Vout = 1 V | Ext Vcc 3.3 V |
| 300 nH | 800 kHz |

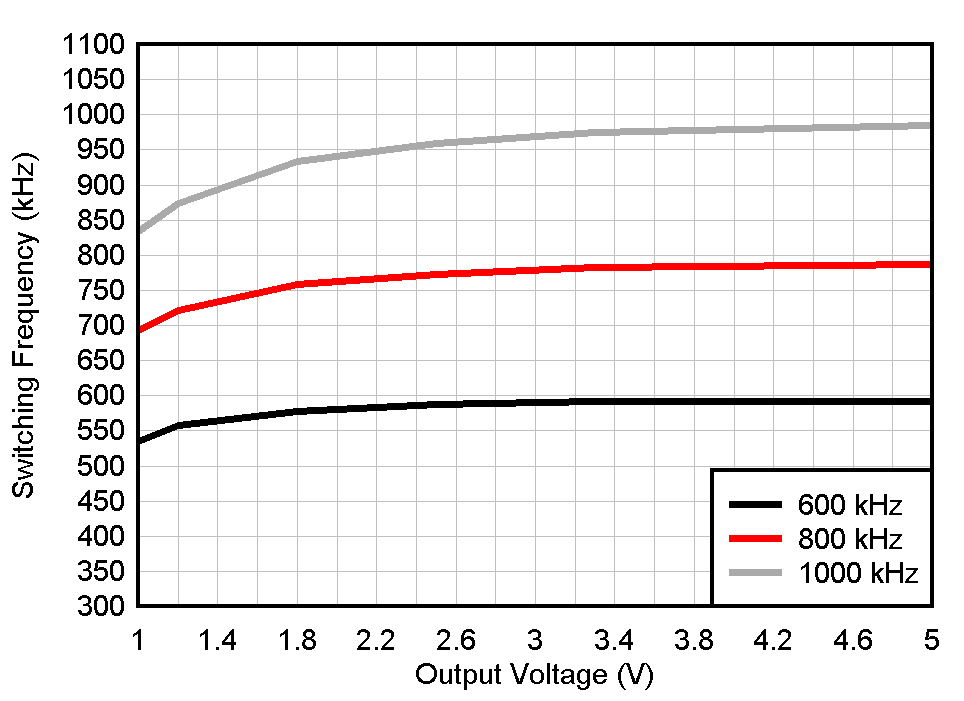

Figure 6-9 Switching
Frequency vs Output Voltage
| VIN = 12 V | VEN = 0 V | Internal VCC LDO |
| VIN = 12 V |

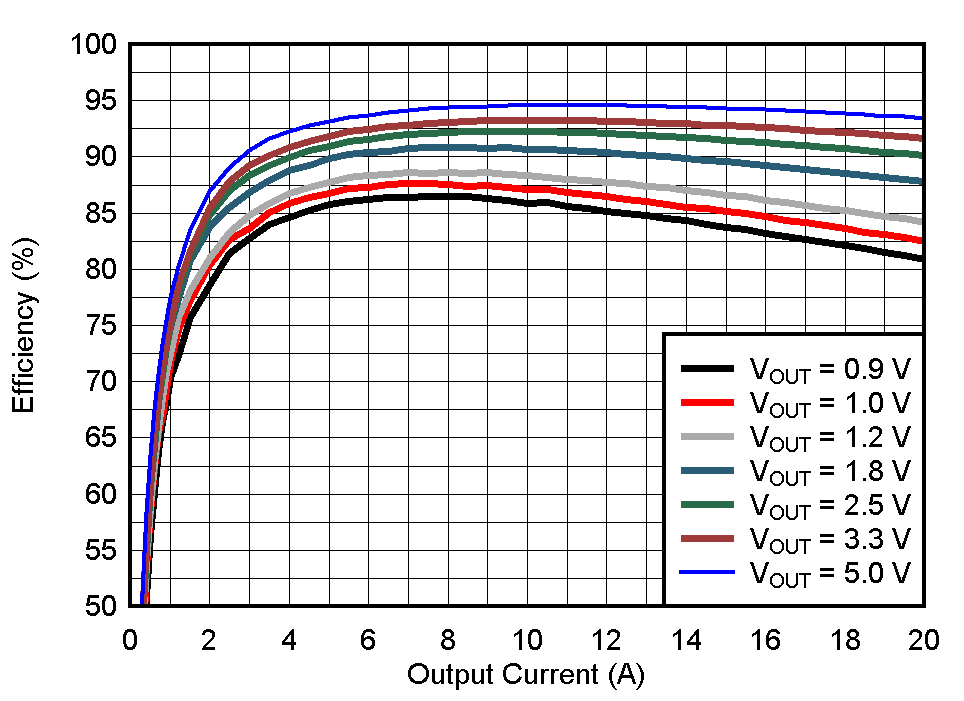

Figure 6-2 Efficiency vs
Output Current, 12 VIN, 800 kHz, DCM, VCC = EXT 3.3
V
Figure 6-4 Efficiency vs
Output Current, 12 VIN, 800 kHz, FCCM, VCC = EXT 3.3
V

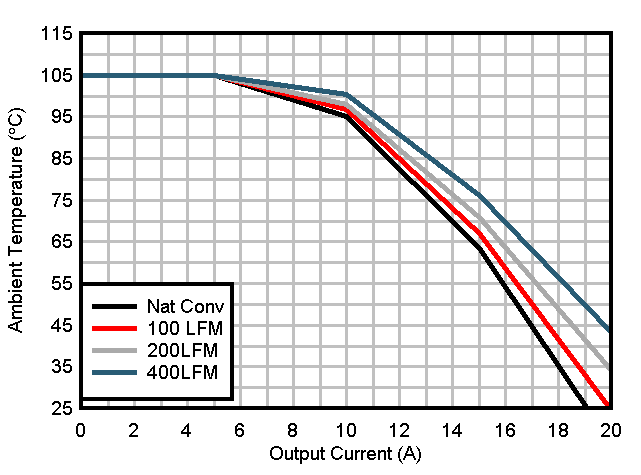

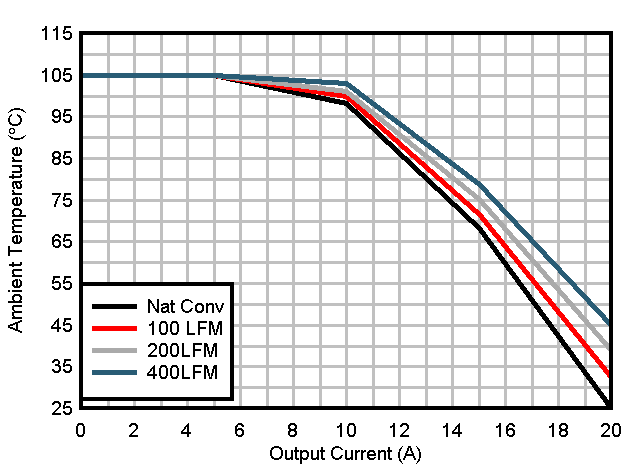

| Vin = 12 V | Vout = 5 V | Int Vcc |
| 800 nH | 600 kHz |
| Vin = 12 V | Vout = 5 V | Ext Vcc 3.3 V |
| 800 nH | 600 kHz |
Figure 6-10 Output Voltage vs
Output Current

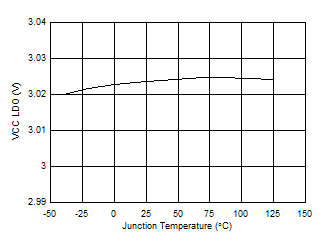

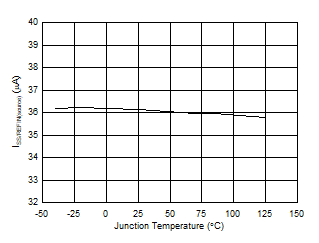

| VIN = 12 V | IVCC = 2 mA |
| VIN = 12 V |
