3 說明
TPS548B27 器件是一款具有自適應導通時間 D-CAP3 控制模式的高效率、小尺寸同步降壓轉換器。該器件不需要外部補償，因此易于使用并且僅需要很少的外部元件。該器件非常適合空間受限的數據中心應用。
TPS548B27 器件具有差分遙感功能和高性能集成 MOSFET，在整個工作結溫范圍具有高精度 (±1%) 0.6V 電壓基準。該器件具有快速負載瞬態響應、精確負載調節和線路調節、跳躍模式或 FCCM 運行以及可編程軟啟動功能。
TPS548B27 是一款無鉛器件，完全符合 RoHS 標準，無需豁免。
器件信息
| 器件型號 | 封裝(1) | 封裝尺寸（標稱值） |
|---|---|---|
| TPS548B27 | VQFN-FCRLF (19) | 4.00mm × 3.00mm |
(1) 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。

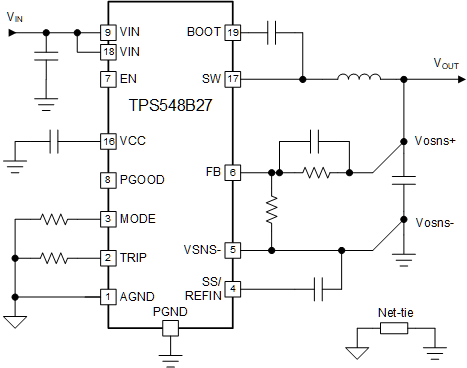

簡化版應用效率與輸出電流間的關系
