6.7 Typical Characteristics

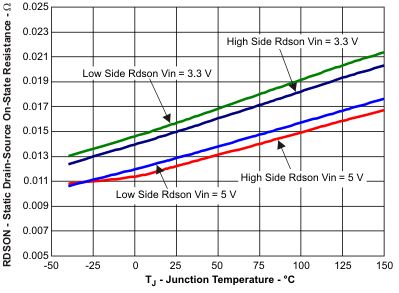

Figure 6-1 High-Side and Low-Side ON-Resistance vs Junction Temperature

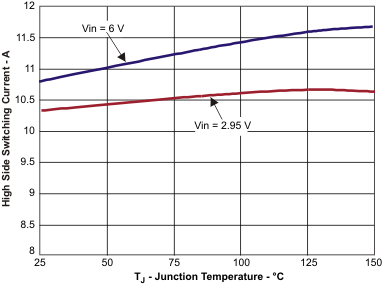

Figure 6-3 High-Side Current Limit vs Junction Temperature

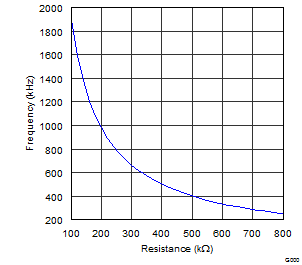

Figure 6-5 Switching Frequency vs RT Resistance Low Frequency Range

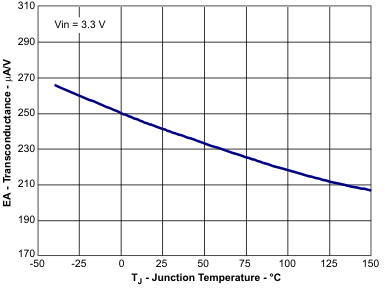

Figure 6-7 Transconductance vs Junction Temperature

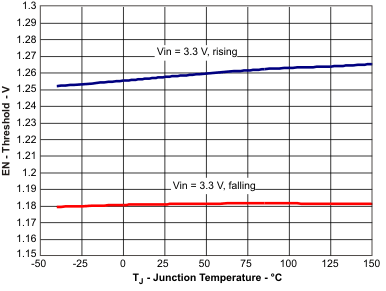

Figure 6-9 Enable Pin Voltage vs Junction Temperature

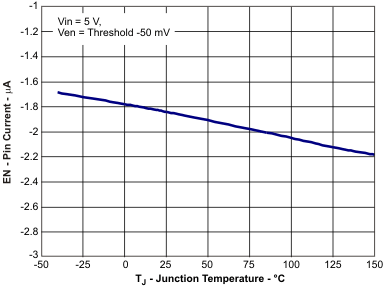

Figure 6-11 EN Pin Current vs Junction Temperature

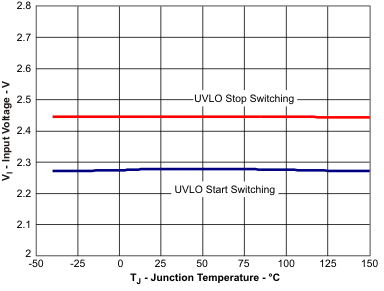

Figure 6-13 Input Voltage vs Junction Temperature

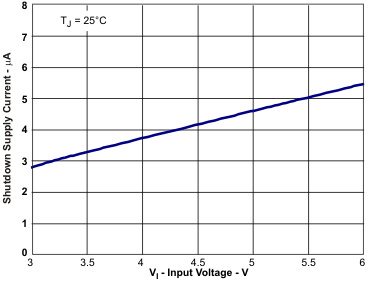

Figure 6-15 Shutdown Supply Current vs Input Voltage
Figure 6-17 Supply Current vs Input Voltage
Figure 6-19 PWRGD ON-Resistance vs Junction Temperature

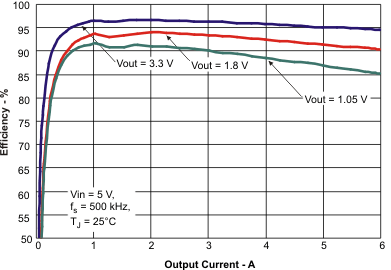

Figure 6-21 Efficiency vs Load Current

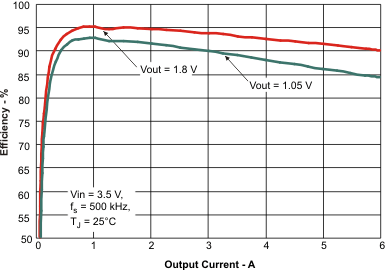

Figure 6-23 Efficiency vs Load Current

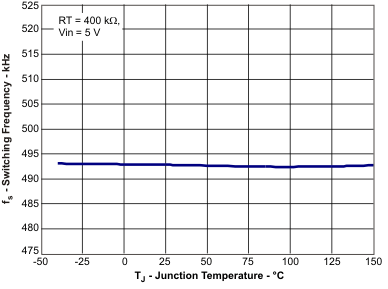

Figure 6-2 Switching Frequency vs Junction Temperature

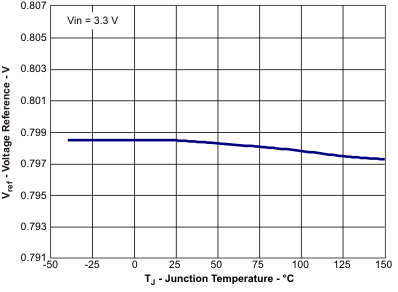

Figure 6-4 Voltage Reference vs Junction Temperature

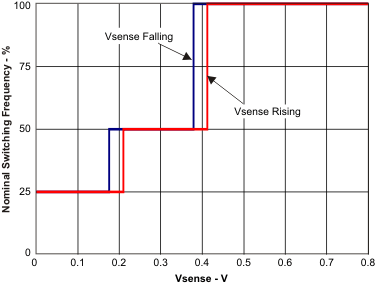

Figure 6-6 Switching Frequency vs Vsense

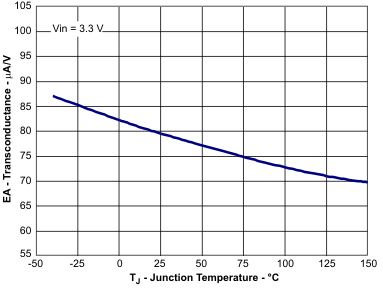

Figure 6-8 Transconductance (Soft-Start) vs Junction Temperature
Figure 6-10 EN Pin Current vs Junction Temperature

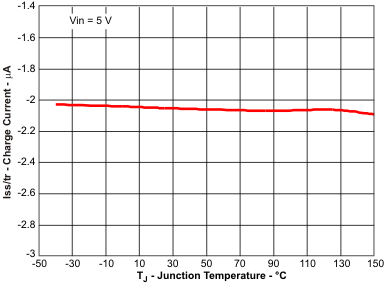

Figure 6-12 Charge Current vs Junction Temperature

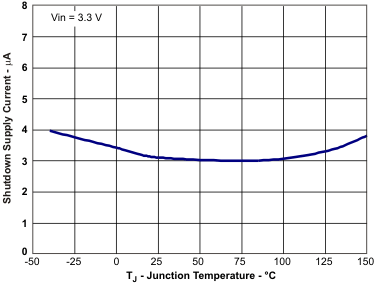

Figure 6-14 Shutdown Supply Current vs Junction Temperature

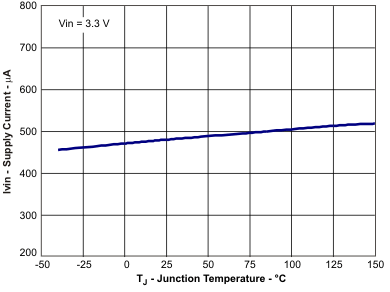

Figure 6-16 Supply Current vs Junction Temperature

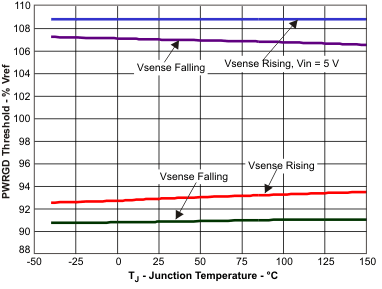

Figure 6-18 PWRGD Threshold vs Junction Temperature

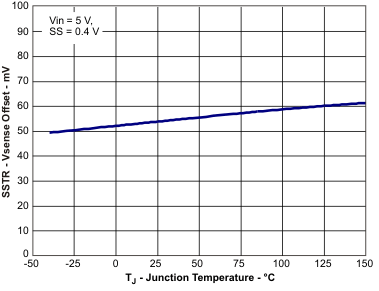

Figure 6-20 SS/TR to VSENSE Offset vs Junction Temperature

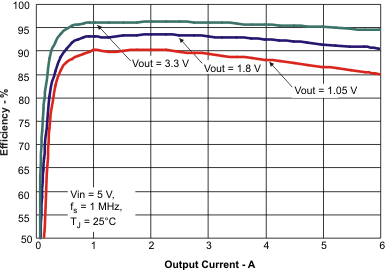

Figure 6-22 Efficiency vs Load Current

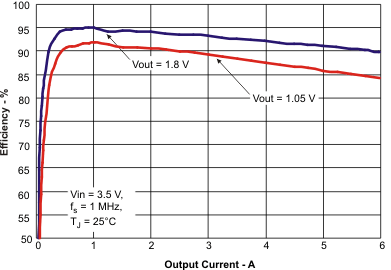

Figure 6-24 Efficiency vs Load Current
