8.2.1.3 Application Curves
Measurements are taken with standard EVM using a 12-V input, 5-V output, and 5-A load unless otherwise noted.
Figure 8-6 Load
Transient

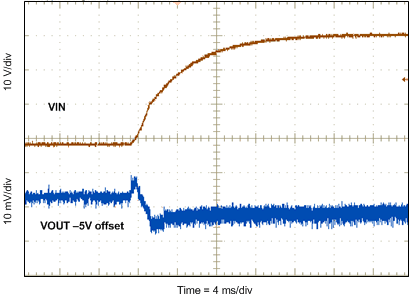

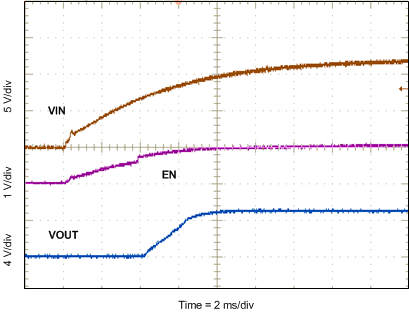

Figure 8-8 Start-up With VIN

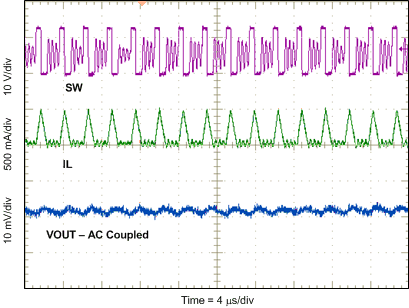

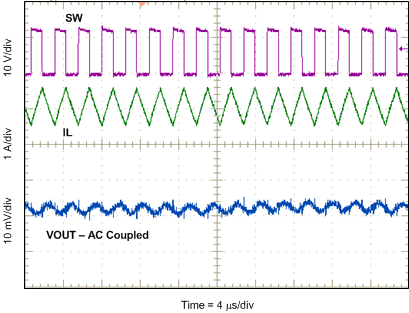

Figure 8-10 Output Ripple CCM

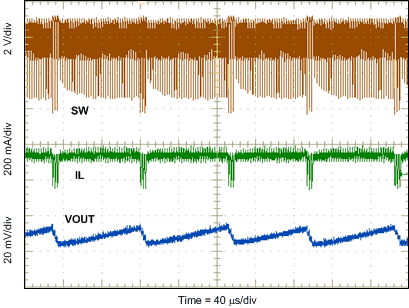

Figure 8-12 Output Ripple PSM
Figure 8-14 Input

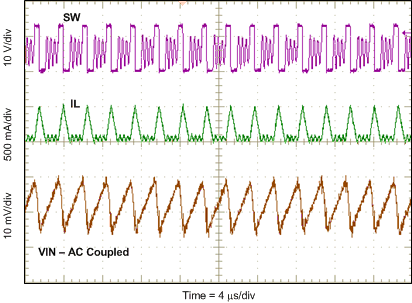

Ripple DCM
Figure 8-16 Low
Dropout Operation

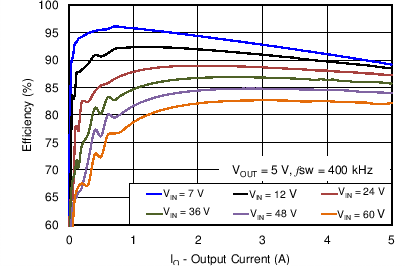

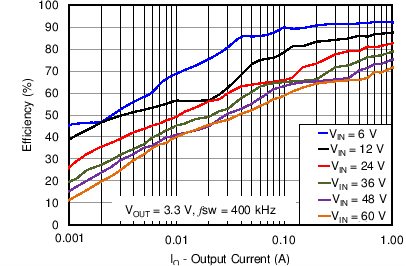

Figure 8-18 Efficiency vs Load Current

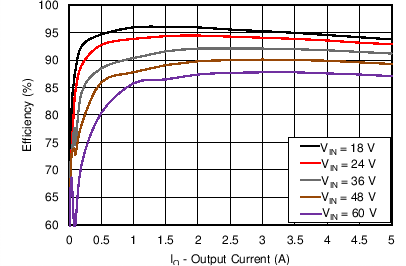

Figure 8-20 Efficiency vs Load Current
| VOUT = 12 V | fsw = 800 kHz |

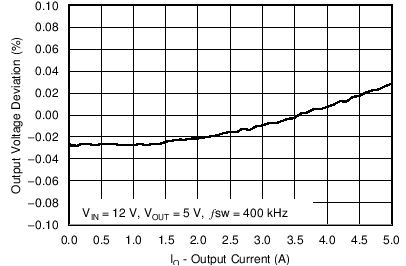

Figure 8-24 Regulation vs Load Current
Figure 8-7 Line
Transient (8 V to 40 V)

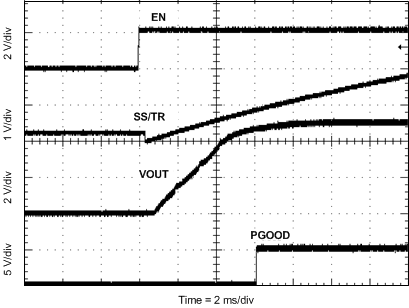

Figure 8-9 Start-up With EN

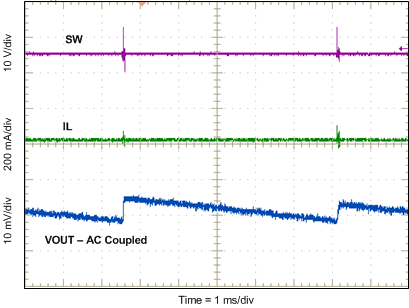

Figure 8-11 Output Ripple DCM
Figure 8-13 Input
Ripple CCM

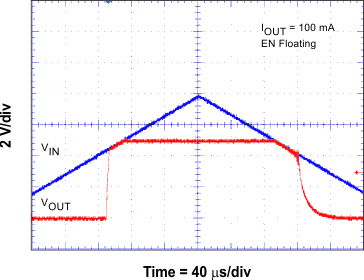

Figure 8-15 Low
Dropout Operation

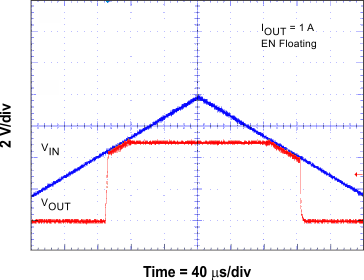

Figure 8-17 Low
Dropout Operation

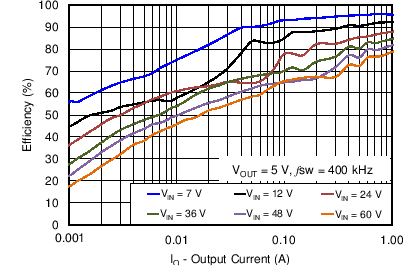

Figure 8-19 Light
Load Efficiency
Figure 8-21 Light
Load Efficiency

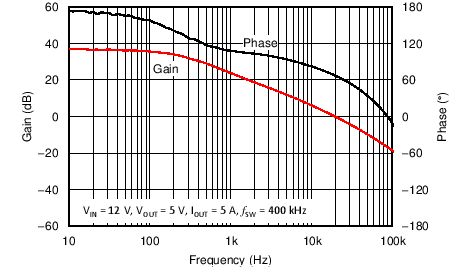

Figure 8-23 Overall Loop Frequency Response

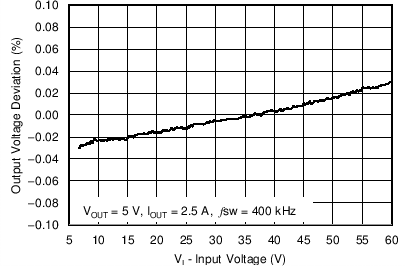

Figure 8-25 Regulation vs Input Voltage
