5 Pin Configuration and Functions

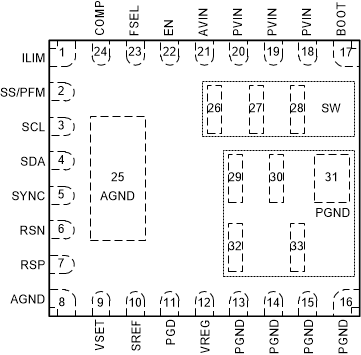

Figure 5-1 33-Pin VQFN RJM Package (Top
View)Table 5-1 Pin Functions
| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| AGND | 8, 25 | G | Ground of the internal analog and digital circuitry |
| AVIN | 21 | P | Power input to the controller. Tie this pin to PVIN. It is best to use an RC filter from PVIN such as 10 Ω and 100 nF to 1 μF. |
| BOOT | 17 | P | Gate drive voltage for high-side FET. Connect a bootstrap capacitor between this pin and SW. |
| COMP | 24 | I | A resistor to ground sets the I2C address and compensation network. This pin can be grounded to select the default compensation and reduce BOM count. |
| EN | 22 | I | Enable pin. Float to enable, enable/disable with an external signal, or adjust the input undervoltage lockout with a resistor divider. |
| FSEL | 23 | I | A resistor to ground sets the switching frequency of the converter. This pin can be grounded to select the default switching frequency to reduce BOM count. |
| ILIM | 1 | I | A resistor to ground sets the overcurrent protection limit. This pin can be grounded to select default settings and reduce BOM count. |
| PGD | 11 | O | Open-drain power good status |
| PGND | 13-16, 29-33 | G | Power ground. These pins are internally connected to the return of the internal low-side FET. |
| PVIN | 18-20 | P | Power inputs to the power stage. Low impedance bypassing of these pins to PGND is critical. At least 10 nF to 100 nF capacitor from PVIN to PGND is required. |
| RSN | 6 | I | Remote sense ground return |
| RSP | 7 | I | Remote sense connection to VOUT |
| SCL | 3 | I | Clock input for I2C programming |
| SDA | 4 | I/O | Data input for I2C programming |
| SREF | 10 | O | 1.2-V nominal system reference |
| SS/PFM | 2 | I | A resistor to ground sets the soft-start slew rate and PFM mode. To reduce BOM count this pin can be grounded to use the default soft-start rate and enable PFM mode. |
| SYNC | 5 | I | In shutdown mode, an active high puts the IC into programming mode. In operation, this pin is a clock input for synchronizing the oscillator. |
| SW | 26-28 | O | Switch node output of the converter. Connect this pin to the output inductor. |
| VREG | 12 | I/O | Bypass pin for the internal power stage LDO. It is recommended to use 4.7-μF ceramic capacitor to ground. |
| VSET | 9 | I | Output voltage reference for the control loop. This must be the mid-point of a resistive divider from SREF to AGND. Set this voltage to be 1/5 of the desired VOUT. |
