10.2 Layout Example

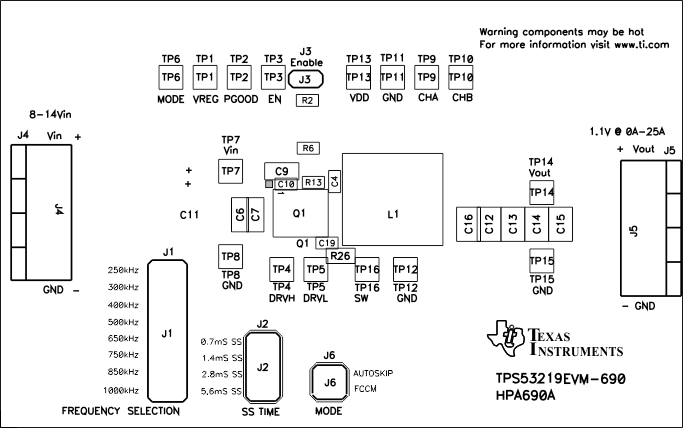

Figure 26. TPS53219EVM-690 Top Layer Assembly Drawing, Top View

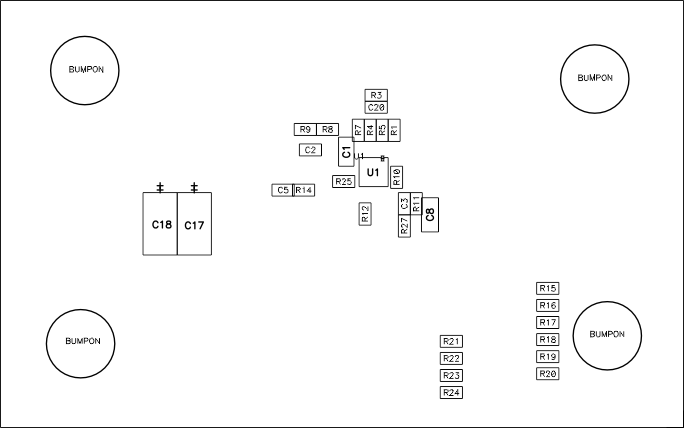

Figure 27. TPS53219EVM-690 Bottom Assembly Drawing, Bottom View

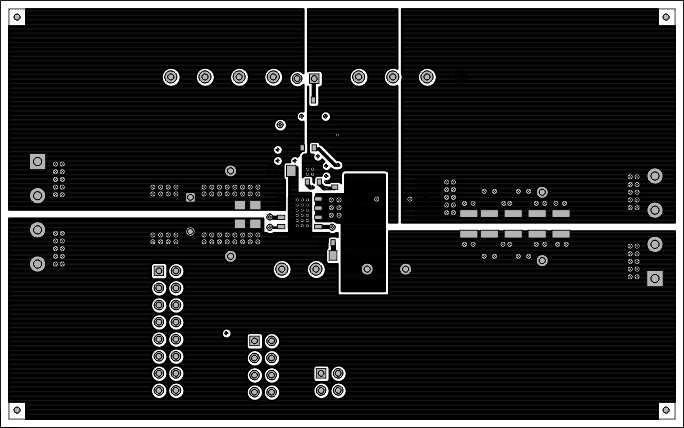

Figure 28. TPS53219EVM-690 Top Copper, Top View

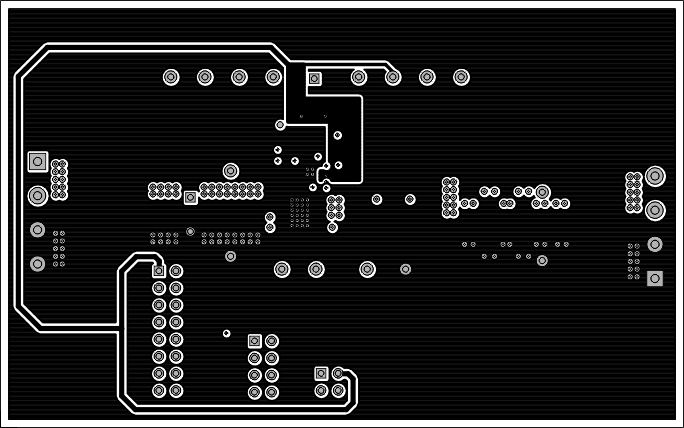

Figure 29. TPS53219EVM-690 Layer-2 Copper, Top View

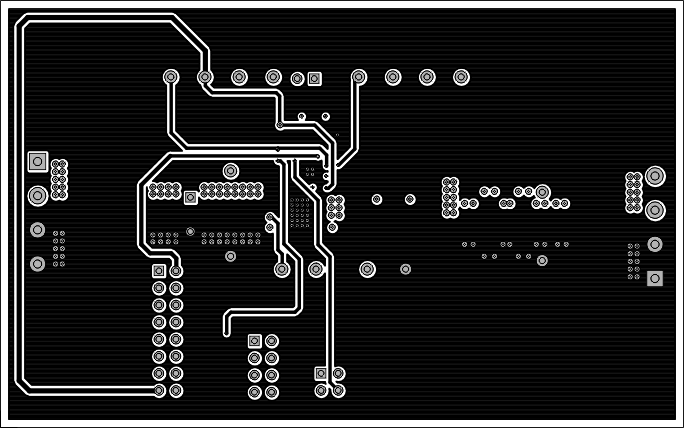

Figure 30. TPS53219EVM-690 Layer-3 Copper, Top View
Figure 31. TPS53219EVM-690 Layer-4 Copper, Top View

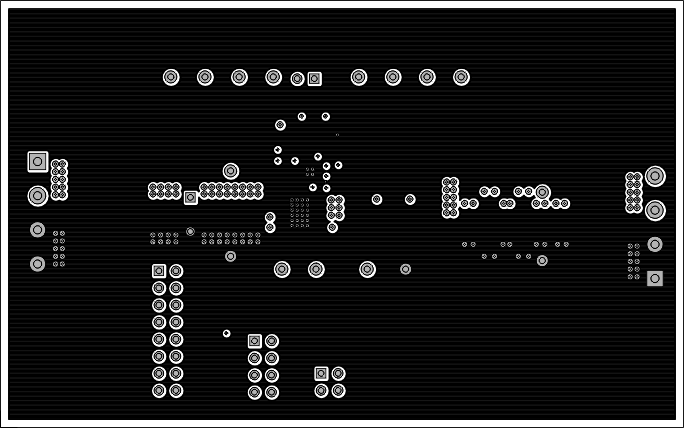

Figure 32. TPS53219EVM-690 Layer-5 Copper, Top View

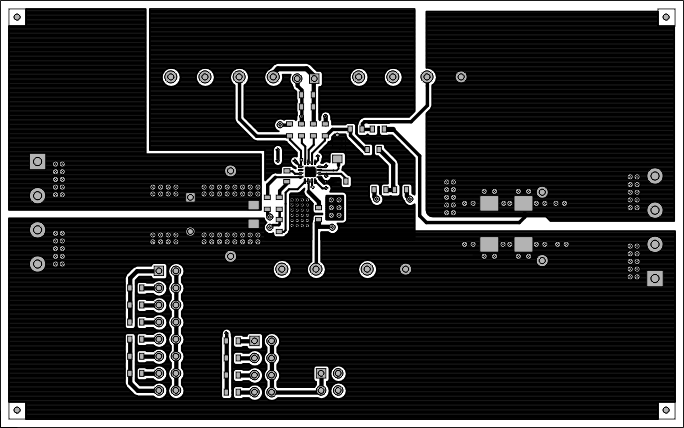

Figure 33. TPS53219EVM-690 Bottom Layer Copper, Top View
