9.2.4 Step Four: Set the Output Voltages
Set the output voltage levels. for V0, V1, V2 and V3 pins ).
- VID 00, V0 = VSET1 = 0 V
- VID 10, V2 = VSET2 = 1.1 V
- VID 01, V1 = VSET3 = 1.65 V
- VID 11, V3 = VSET4 = 1.8 V
The resistor value:
- VREF = 2 V
- R1 = 20 kΩ
- R2 = 15 kΩ
- R3 = 54.9 kΩ
- R4 = 110 kΩ
- R5 = 0Ω

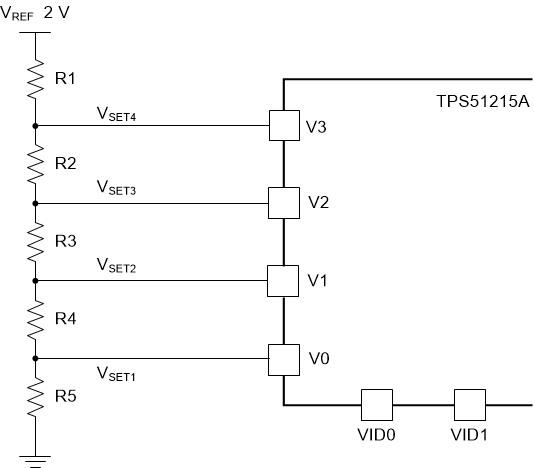

Figure 13. Setting the Output Voltage
