9.3.2 Design 2: 2-Bit VID, ICC(max) = 10 A, for VCCIO_1_2 in Intel RocketLake - S platform

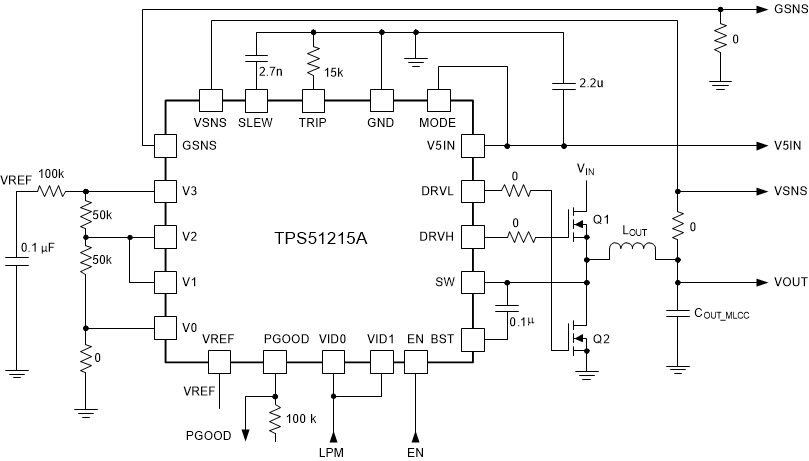

Figure 15. Application Circuit for Design 2 Table 3. VID Table for Design 2
| VID1 | VID0 | OUTPUT VOLTAGE (V) |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 1 | Not Used |
| 1 | 0 | Not Used |
| 1 | 1 | 1.0 |
Table 4. List of Materials for Design 2
| REFERENCE
DESIGNATOR |
QTY | SPECIFICATION | MANUFACTURER | PART
NUMBER |
|---|---|---|---|---|
| CIN (not shown) | 3 | 10 µF, 25 V | TDK | C3216X5R1V106M160AB |
| COUT_MLCC | 6 | 22 µF, 6.3 V | Murata | GRM21BR60J226ME39L |
| LOUT | 1 | 0.47 µH, 25 A,2.9 mΩ | Cyntec | CMLE063T-R47MS-68 |
| Q1 Q2 | 1 | 30 V, 45A | Texas Instruments | CSD87355Q5D |
