7.3.9 Gate Drive Circuit
Some applications benefit from the addition of a resistor connected between the GDRV pin and the gate of the switching MOSFET. In applications that have particularly stringent load regulation (under 0.75%) requirements and operate from input voltages above 5 V, or are sensitive to pulse jitter in the discontinuous conduction region, this resistor is recommended. The recommended starting point for the value of this resistor can be calculated from Equation 29.
Equation 29.
where
- QG is the MOSFET total gate charge at 8-V VGS in nC
- RG is the suggested starting point gate resistance in ?

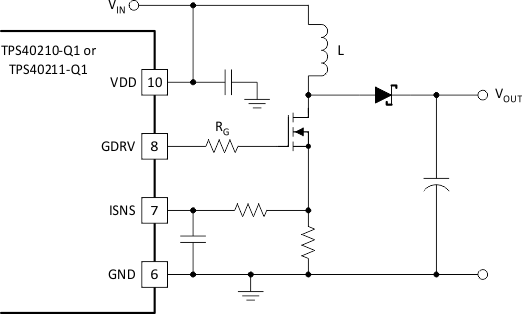

Figure 7-7 Gate Drive Resistor
