5.6 Typical Characteristics

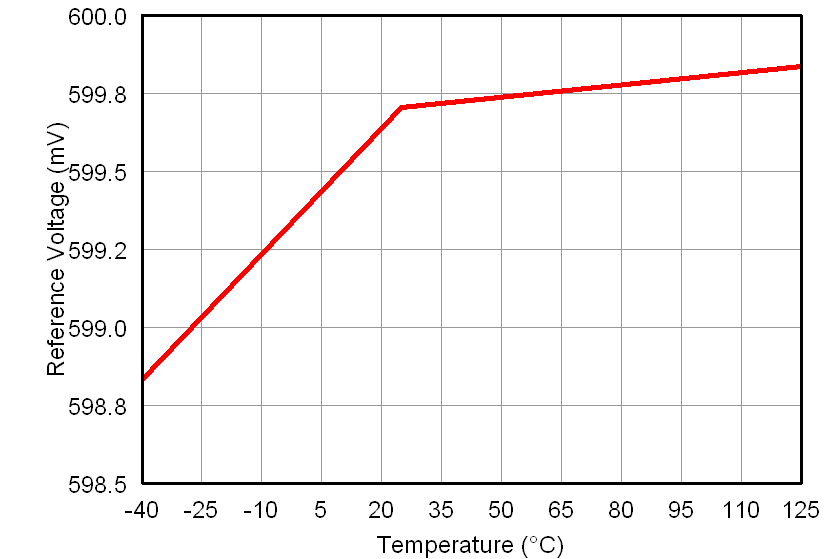

Figure 5-1 Reference Voltage vs. Junction Temperature

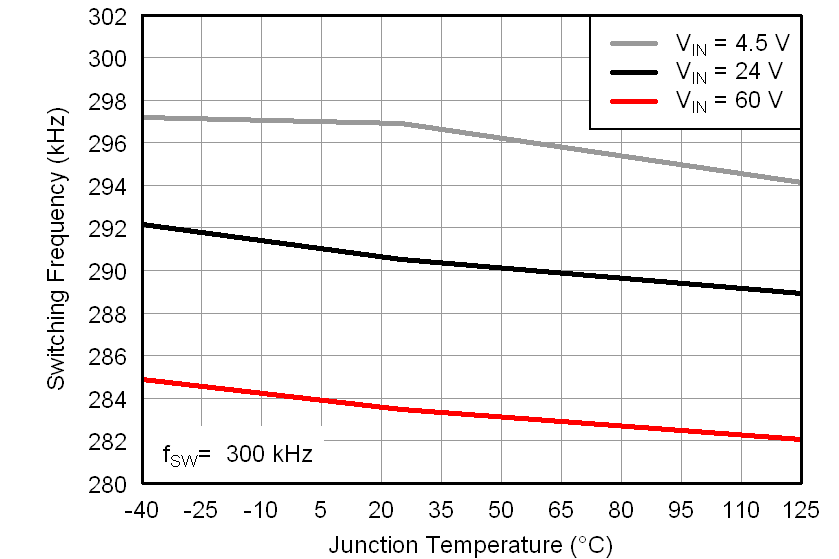

Figure 5-3 Switching Frequency vs. Junction Temperature (fSW = 300
kHz)

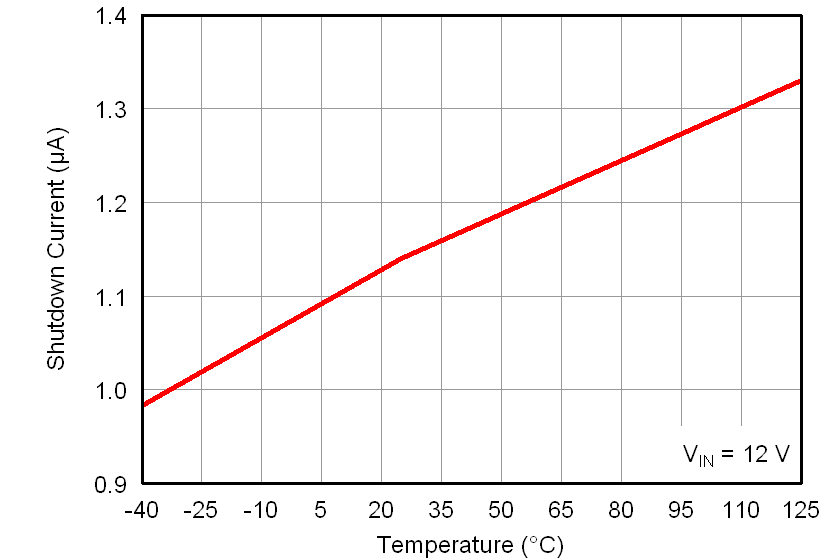

Figure 5-5 Shutdown Current vs. Junction Temperature

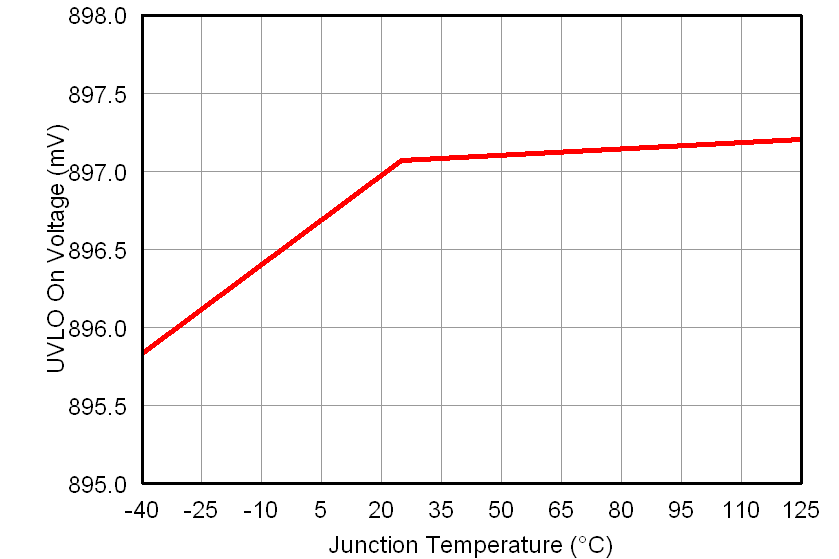

Figure 5-7 UVLO
Pin On Voltage vs. Junction Temperature
Figure 5-9 VBP
Turn-On Voltage vs. Junction Temperature
Figure 5-11 Soft-Start Source Current vs. Junction Temperature (VSS > 0.5
V)

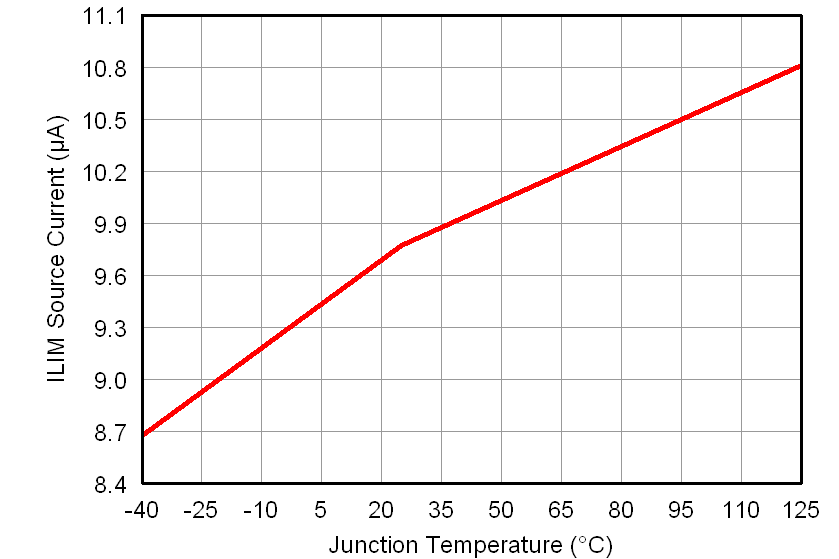

Figure 5-13 ILIM
Source Current vs. Junction Temperature

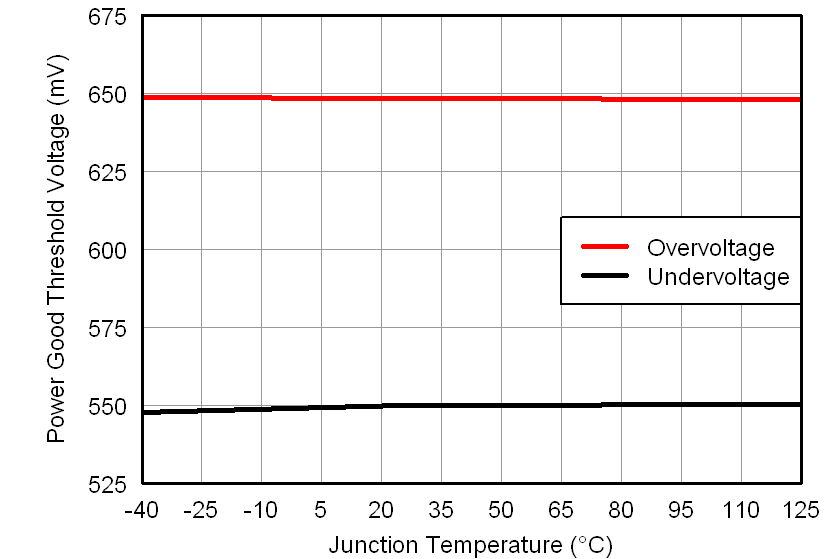

Figure 5-15 VOV/VUV Power Good Threshold Voltage

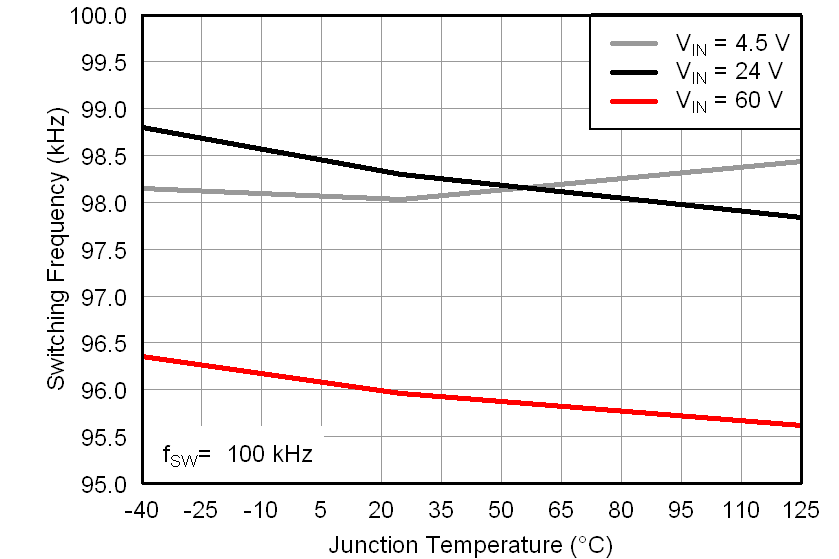

Figure 5-2 Switching Frequency vs. Junction Temperature (fSW = 100
kHz)
Figure 5-4 Switching Frequency vs. Junction Temperature (fSW = 600
kHz)

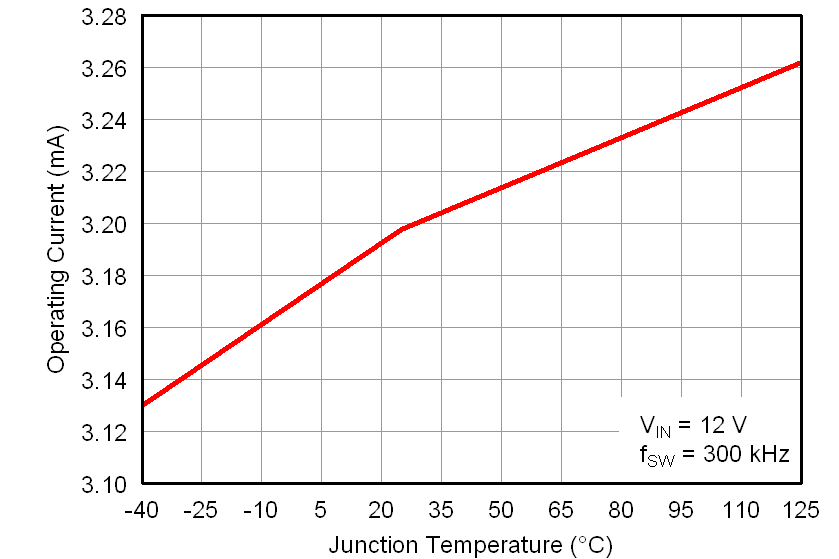

Figure 5-6 Operating Current vs. Junction Temperature

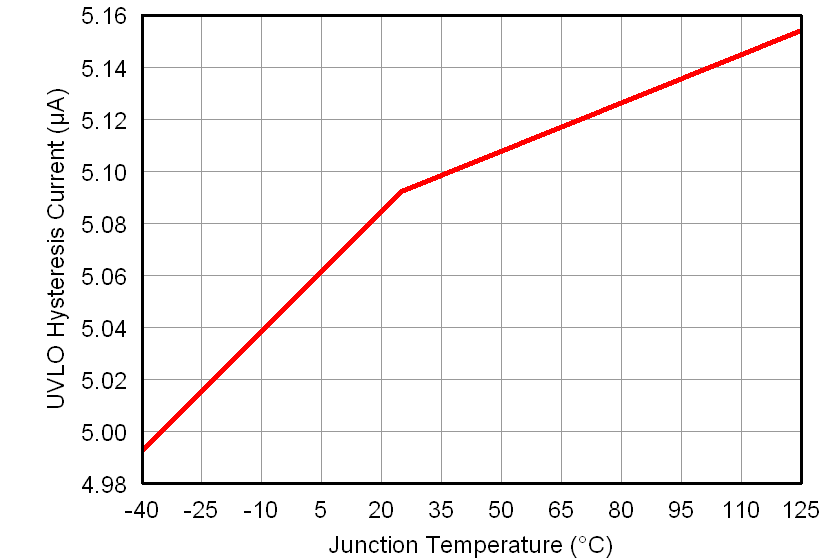

Figure 5-8 UVLO
Pin Hysteresis Current vs. Junction Temperature

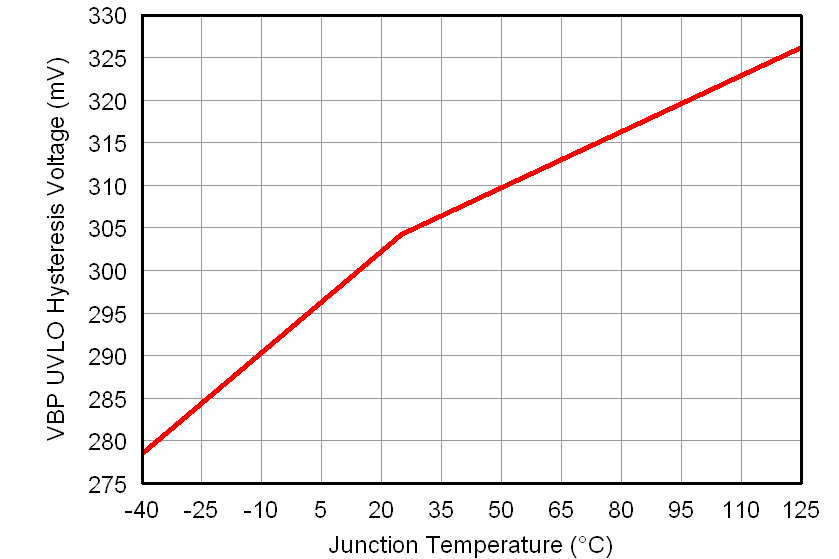

Figure 5-10 VBP
UVLO Hysteresis Voltage

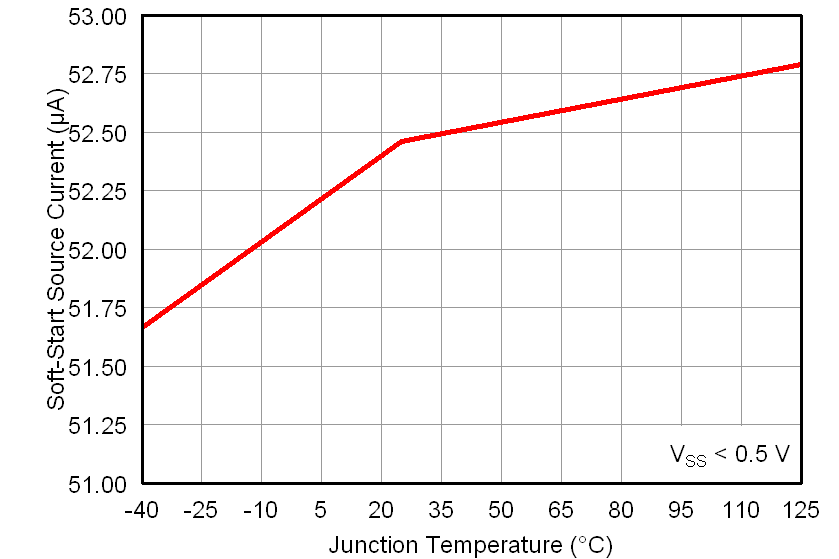

Figure 5-12 Soft-Start Source Current vs. Junction Temperature (VSS < 0.5
V)

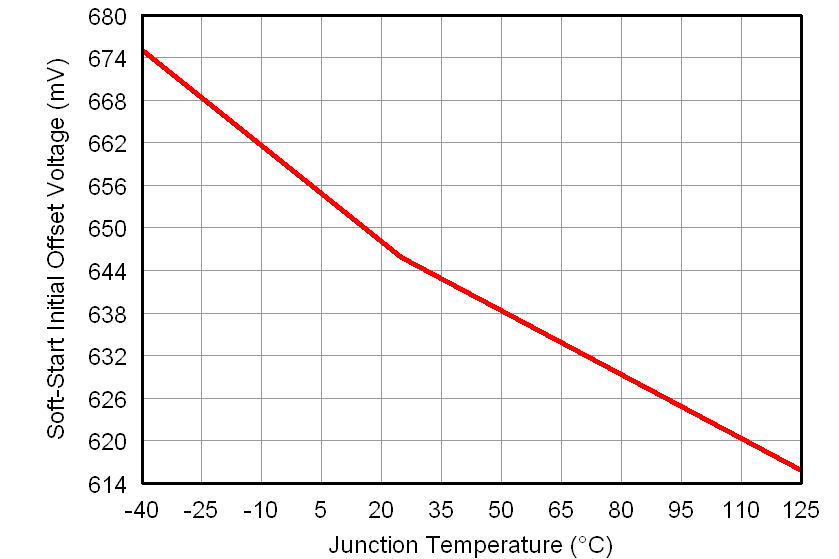

Figure 5-14 Soft-Start Initial Offset Voltage vs. Junction Temperature
