11 Layout
11.1 Layout Guidelines
Follow these guidelines to lay out the printed-circuit-board (PCB) that is used for the TPS310x and TPS3110x family of devices.
- Place the VDD decoupling capacitor close to the device.
- Avoid using long traces for the VCC supply node. The VCC capacitor (CVDD), along with parasitic inductance from the supply to the capacitor, can form an LC tank and create ringing with peak voltages above the maximum VDD voltage.
11.2 Layout Example

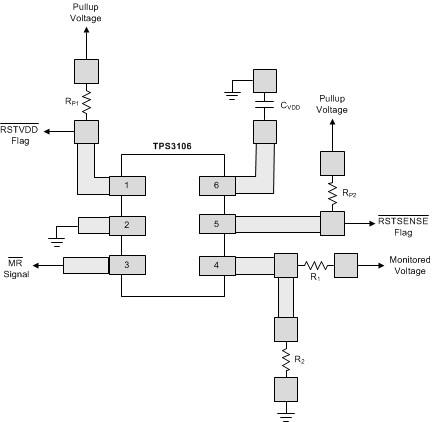

Figure 19. Example Layout (DBV Package)
