11.2.1 Without a GND Network
Without a GND network, tie the thermal pad directly to the board GND copper for better thermal performance.

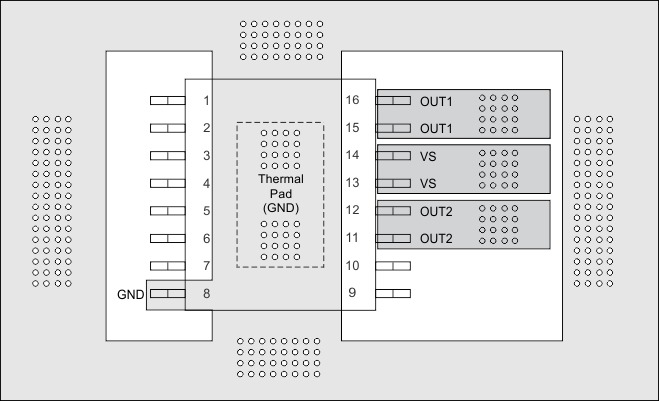

Figure 44. Layout Example Without a GND Network
