9.2.3 Application Curves

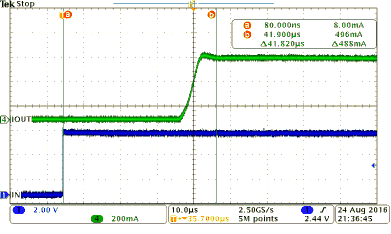

Figure 40 shows a test example of soft-start when driving a big capacitive load. Figure 41 shows an expanded waveform of the output current.
| Load current = 0.2 A | CH2 = FAULT | INx = ↑ |
| Current limit = 0.5 A | CH3 = output voltage | CH1 = INx |
| CL = 2.3 mF | CH4 = output current | VS = 12 V |
| Load current = 0.2 A | CH2 = FAULT | INx = ↑ |
| Current limit = 0.5 A | CH3 = output voltage | CH1 = INx |
| CL = 2.3 mF | CH4 = output current | VVS = 12 V |

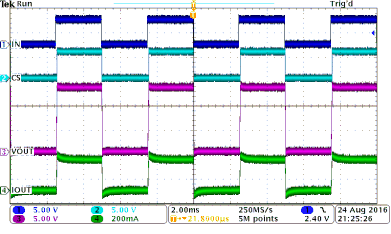

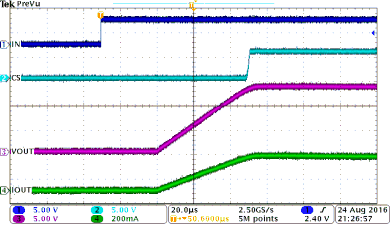

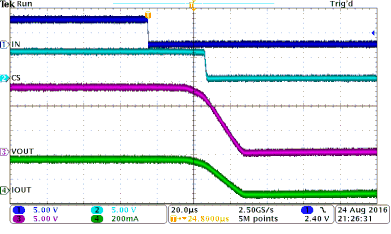

Figure 42 shows a test example of PWM-mode driving. Figure 43 shows the expanded waveform of the rising edge. Figure 44 shows the expanded waveform of the falling edge.
| INx = 200-Hz PWM, 50% duty cycle | CH2 = CS voltage | |
| VVS = 13.5 V | CH3 = output voltage | |
| CH1 = INx signal | CH4 = output current | |
| INx = 200-Hz PWM, 50% duty cycle | CH2 = CS voltage | |||
| VVS = 13.5 V | CH3 = output voltage | |||
| CH1 = INx signal | CH4 = output current | |||
| INx = 200-Hz PWM, 50% duty cycle | CH2 = CS voltage | |
| VVS = 13.5 V | CH3 = output voltage | |
| CH1 = INx signal | CH4 = output current | |
