7.4.1 Working Mode
The device has three working modes: the normal mode, the standby mode, and the standby mode with diagnostics.

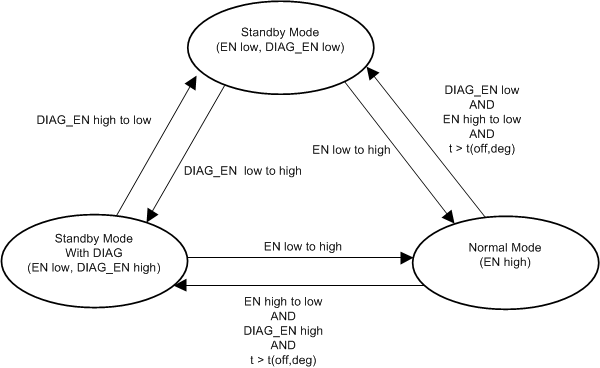

Figure 34. Working Modes
