6.7 Switching Characteristics
VIN = 24 V, Rload = 24 Ω, over operating free-air temperature range (unless otherwise noted)(1)| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|
| td(on) | Turn-on delay time | EN rising edge to VOUT = 10%, DIAG_EN high | 20 | 50 | µs | |
| td(off) | Turn-off delay time | EN falling edge to VOUT = 90%, DIAG_EN high | 40 | 80 | µs | |
| dV/dt(on) | Slew rate on | VOUT = 10% to 90%, DIAG_EN high | 0.1 | 0.5 | V/µs | |
| dV/dt(off) | Slew rate off | VOUT = 90% to 10%, DIAG_EN high | 0.1 | 0.5 | V/µs | |
(1) Value specified by design, not subject to production test.
Figure 1. Pin Current and Voltage Conventions

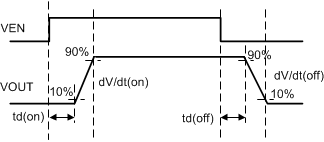

Figure 2. Output Delay Characteristics

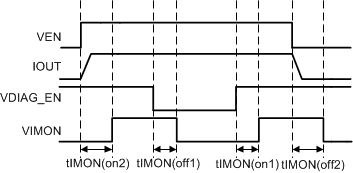

Figure 3. Current sense Delay Characteristics

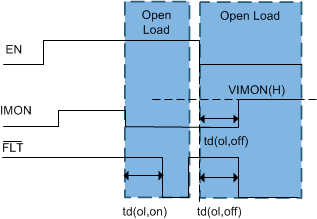

Figure 4. Open Load Blanking Time Characteristics
