10.4.4.3 Client Mode

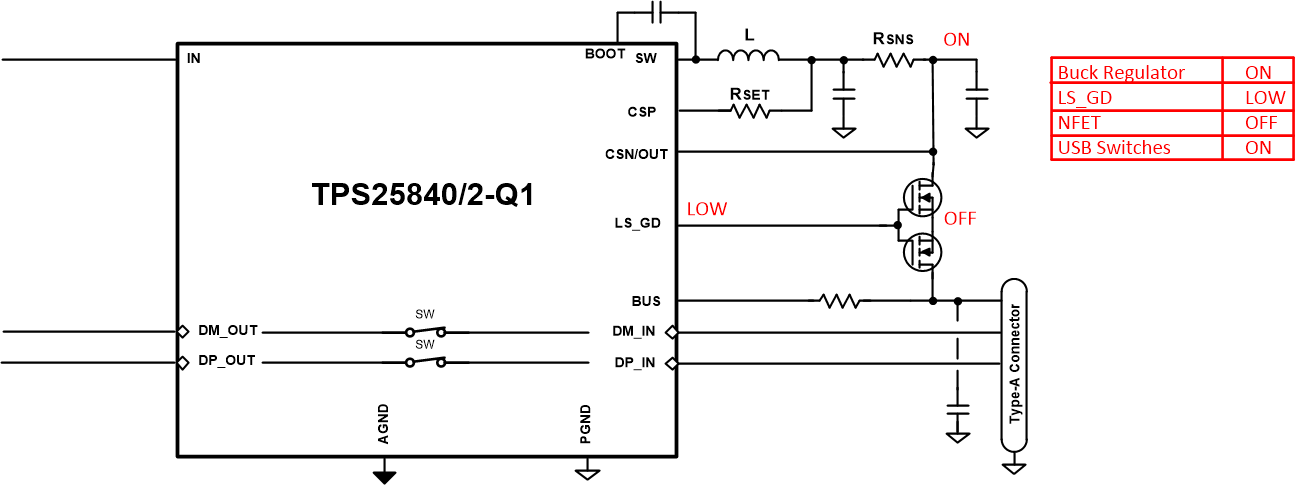

The TPS2584x-Q1 device integrates client mode as shown in Figure 10-21. The external MOSFET power switch is OFF and only the data analog switch is ON. This mode can be used by automotive USB system manufacturers and OEMs for factory-only software programming with the USB port.
Figure 10-21 Client-mode Equivalent
Circuit
