7.6 Typical Characteristics

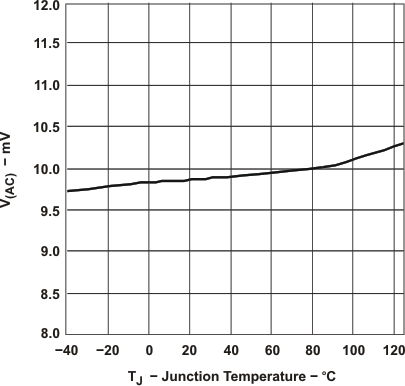

Figure 1. TPS2410 V(AC) Regulation Voltage vs Temperature

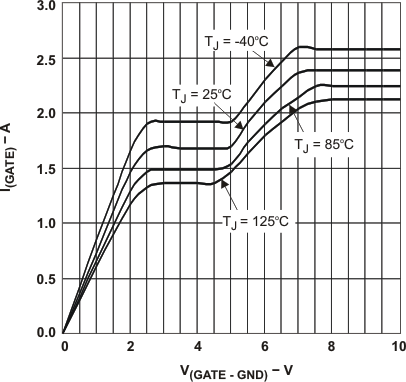

Figure 3. Pulsed Gate Sinking Current vs Gate Voltage

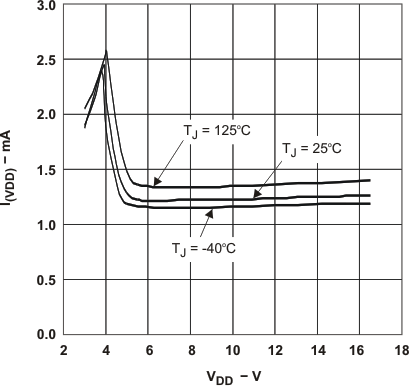

Figure 5. VDD Current vs VDD Voltage
(Gate Saturated High)

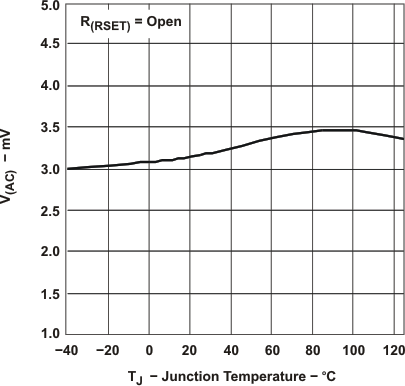

Figure 2. Fast Turnoff Threshold vs Temperature

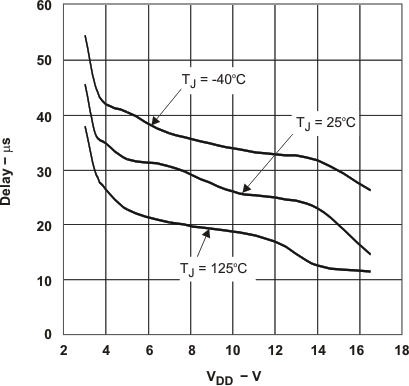

Figure 4. Turnon Delay vs VDD
(Power Applied Until Gate Is Active)
