ZHCSNB6A April 2021 – February 2022 TPS23882B
PRODUCTION DATA
- 1 特性
- 2 應用
- 3 說明
- 4 Revision History
- 5 Device Comparison Table
- 6 Pin Configuration and Functions
- 7 Specifications
- 8 Parameter Measurement Information
-
9 Detailed Description
- 9.1 Overview
- 9.2 Functional Block Diagram
- 9.3 Feature Description
- 9.4 Device Functional Modes
- 9.5 I2C Programming
- 9.6
Register Maps
- 9.6.1 Complete Register Set
- 9.6.2
Detailed Register Descriptions
- 9.6.2.1 INTERRUPT Register
- 9.6.2.2 INTERRUPT MASK Register
- 9.6.2.3 POWER EVENT Register
- 9.6.2.4 DETECTION EVENT Register
- 9.6.2.5 FAULT EVENT Register
- 9.6.2.6 START/ILIM EVENT Register
- 9.6.2.7 SUPPLY and FAULT EVENT Register
- 9.6.2.8 CHANNEL 1 DISCOVERY Register
- 9.6.2.9 CHANNEL 2 DISCOVERY Register
- 9.6.2.10 CHANNEL 3 DISCOVERY Register
- 9.6.2.11 CHANNEL 4 DISCOVERY Register
- 9.6.2.12 POWER STATUS Register
- 9.6.2.13 PIN STATUS Register
- 9.6.2.14 OPERATING MODE Register
- 9.6.2.15 DISCONNECT ENABLE Register
- 9.6.2.16 DETECT/CLASS ENABLE Register
- 9.6.2.17 Power Priority / 2Pair PCUT Disable Register Name
- 9.6.2.18 TIMING CONFIGURATION Register
- 9.6.2.19 GENERAL MASK Register
- 9.6.2.20 DETECT/CLASS RESTART Register
- 9.6.2.21 POWER ENABLE Register
- 9.6.2.22 RESET Register
- 9.6.2.23 ID Register
- 9.6.2.24 Connection Check and Auto Class Status Register
- 9.6.2.25 2-Pair Police Ch-1 Configuration Register
- 9.6.2.26 2-Pair Police Ch-2 Configuration Register
- 9.6.2.27 2-Pair Police Ch-3 Configuration Register
- 9.6.2.28 2-Pair Police Ch-4 Configuration Register
- 9.6.2.29 Capacitance (Legacy PD) Detection
- 9.6.2.30 Power-on Fault Register
- 9.6.2.31 PORT RE-MAPPING Register
- 9.6.2.32 Channels 1 and 2 Multi Bit Priority Register
- 9.6.2.33 Channels 3 and 4 Multi Bit Priority Register
- 9.6.2.34 Port Power Allocation Register
- 9.6.2.35 TEMPERATURE Register
- 9.6.2.36 INPUT VOLTAGE Register
- 9.6.2.37 CHANNEL 1 CURRENT Register
- 9.6.2.38 CHANNEL 2 CURRENT Register
- 9.6.2.39 CHANNEL 3 CURRENT Register
- 9.6.2.40 CHANNEL 4 CURRENT Register
- 9.6.2.41 CHANNEL 1 VOLTAGE Register
- 9.6.2.42 CHANNEL 2 VOLTAGE Register
- 9.6.2.43 CHANNEL 3 VOLTAGE Register
- 9.6.2.44 CHANNEL 4 VOLTAGE Register
- 9.6.2.45 2x FOLDBACK SELECTION Register
- 93
- 9.6.2.46 FIRMWARE REVISION Register
- 9.6.2.47 I2C WATCHDOG Register
- 9.6.2.48 DEVICE ID Register
- 9.6.2.49 CHANNEL 1 DETECT RESISTANCE Register
- 9.6.2.50 CHANNEL 2 DETECT RESISTANCE Register
- 9.6.2.51 CHANNEL 3 DETECT RESISTANCE Register
- 9.6.2.52 CHANNEL 4 DETECT RESISTANCE Register
- 9.6.2.53 CHANNEL 1 DETECT CAPACITANCE Register
- 9.6.2.54 CHANNEL 2 DETECT CAPACITANCE Register
- 9.6.2.55 CHANNEL 3 DETECT CAPACITANCE Register
- 9.6.2.56 CHANNEL 4 DETECT CAPACITANCE Register
- 9.6.2.57 CHANNEL 1 ASSIGNED CLASS Register
- 9.6.2.58 CHANNEL 2 ASSIGNED CLASS Register
- 9.6.2.59 CHANNEL 3 ASSIGNED CLASS Register
- 9.6.2.60 CHANNEL 4 ASSIGNED CLASS Register
- 9.6.2.61 AUTO CLASS CONTROL Register
- 9.6.2.62 CHANNEL 1 AUTO CLASS POWER Register
- 9.6.2.63 CHANNEL 2 AUTO CLASS POWER Register
- 9.6.2.64 CHANNEL 3 AUTO CLASS POWER Register
- 9.6.2.65 CHANNEL 4 AUTO CLASS POWER Register
- 9.6.2.66 ALTERNATIVE FOLDBACK Register
- 9.6.2.67 SRAM CONTROL Register
- 10Application and Implementation
- 11Power Supply Recommendations
- 12Layout
- 13Device and Documentation Support
- 14Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
- RTQ|56
散熱焊盤機械數據 (封裝 | 引腳)
- RTQ|56
訂購信息
10.2.3 Application Curves
Unless otherwise noted, measurements taken on the TPS23882B EVM and Sifos PSA-3000 PowerSync Analyzer with PSA3202 test cards. Test conditions are TJ = 25 °C, VVDD = 3.3 V, VVPWR = 54 V, VDGND = VAGND, DGND, KSENSA, KSENSB, KSENSC and KSENSD connected to AGND, and all outputs are unloaded, 2xFBn = 0. Positive currents are into pins. RS = 0.200 Ω, to KSENSA (SEN1 or SEN2), to KSENSB (SEN3 or SEN4), to KSENSC (SEN5 or SEN6) or to KSENSD (SEN7 or SEN8). All voltages are with respect to AGND unless otherwise noted. Operating registers loaded with default values unless otherwise noted.
Figure 10-3

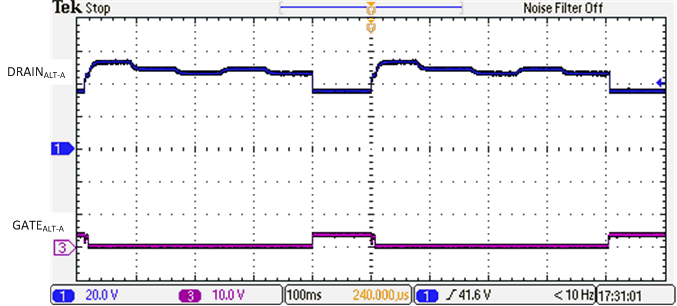

ILIM Foldback and Turn-Off

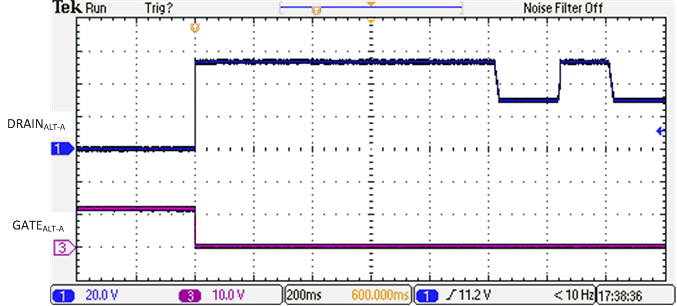

Figure 10-5 Open
Circuit Detection Signature

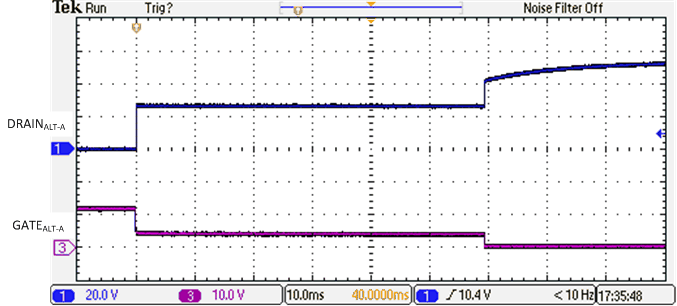

Figure 10-7 1-Finger
Classification and Turn-On

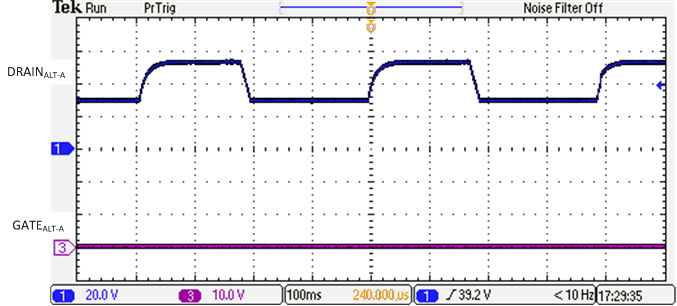

Figure 10-4 Backoff
Due to PCut Fault

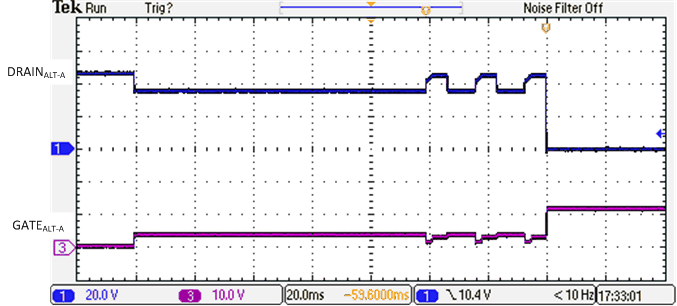

Figure 10-6
Semiauto Mode Discovery with a Valid Class 0-3 Load

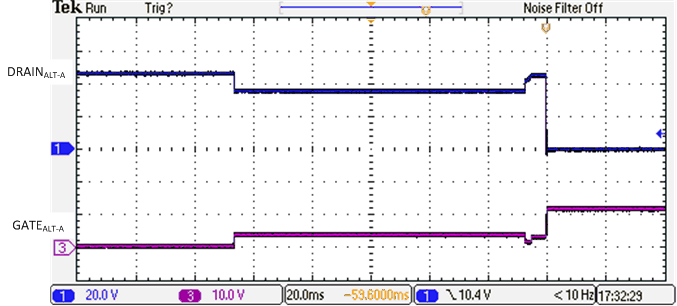

Figure 10-8 3-Finger
Classification and Turn-On
