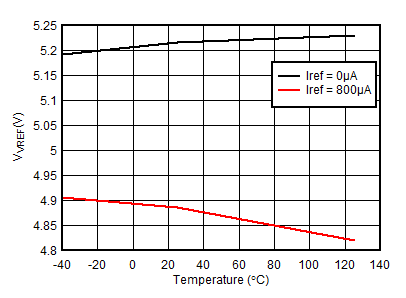

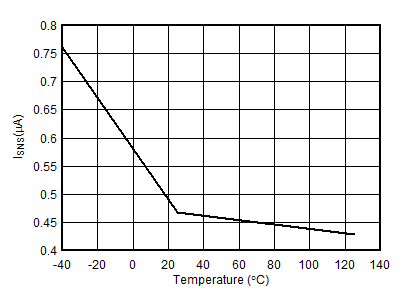

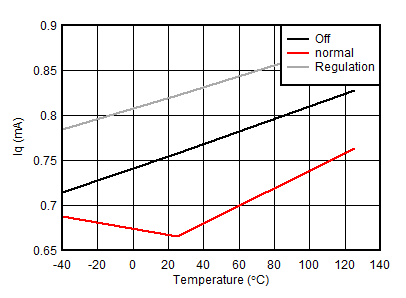

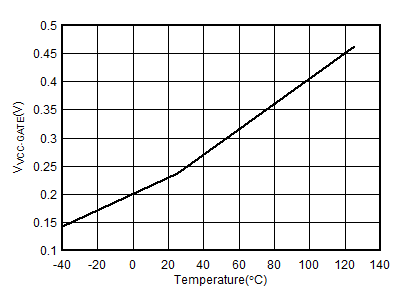

6.7 Typical Characteristics
Unless otherwise noted: –40°C ≤ TJ ≤125°C, 1.1 mA < IVCC< 10 mA, V(UVEN) = 2 V, V(OV) = V(SNS) = V(D) = 0 V, V(SS) = GATEx = Hi-Z , V(TMR) = 0 V, VVref/PG = VPROG = Hi-Z;

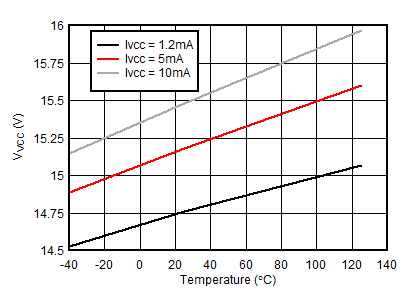

| Ivcc injected into VCC pin |
| VVCC = 10 V, Regulation is current limit |
