8 Parameter Measurement Information
A. Rise and fall times of the control signal are 100 ns.
B. Turnoff times and fall times are dependent on the time constant at the load. For the TPS22975, the internal pull-down resistance RPD is enabled when the switch is disabled. The time constant is (RPD || RL) × CL.
Figure 29. Test Circuit

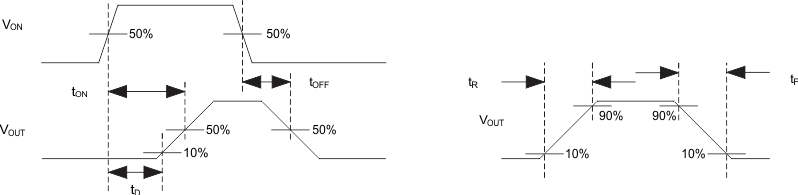

Figure 30. tON and tOFF Waveforms
