9.1.9 USB Power-distribution Requirements
USB can be implemented in several ways, and, regardless of the type of USB device being developed, several power-distribution features must be implemented.
- Hosts/SPHs must:
- Current-limit downstream ports
- Report overcurrent conditions on USB VBUS
- BPHs must:
- Enable/disable power to downstream ports
- Power up at <100 mA
- Limit inrush current (<44 ? and 10 μF)
- Functions must:
- Limit inrush currents
- Power up at <100 mA
The feature set of the TPS206x allows them to meet each of these requirements. The integrated current-limiting and overcurrent reporting is required by hosts and self-powered hubs. The logic-level enable and controlled rise times meet the need of both input and output ports on bus-powered hubs, as well as the input ports for bus-powered functions (see Figure 9-5).

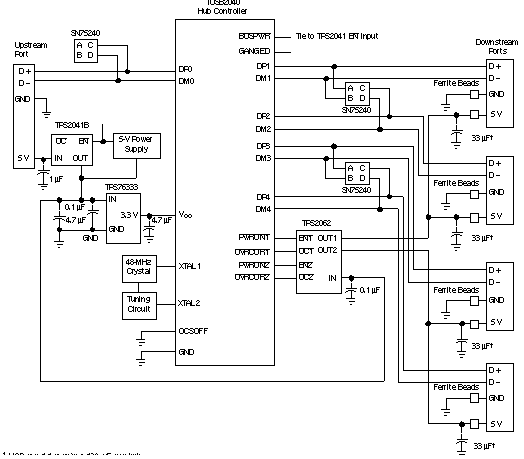

Figure 9-5 Hybrid Self / Bus-Powered Hub Implementation
