8.3.1 Input Voltage Protection at V_BUS from –7 V to 30 V

The V_BUS pin can handle continuous voltage ranging from –7 V to 30 V. The OVLO at the V_BUS pin ensures that if there is a fault condition at the V_BUS line, TPD4S214 is able to isolate the fault and protect the internal circuitry from damage.

8.3.2 IEC 61000-4-2 Level 4 ESD Protection

The I/O pins can withstand ESD events up to ±15-kV contact and air gap. An ESD clamp diverts the current to ground.

8.3.3 Low R_DS(ON) N-CH FET Switch for High Efficiency

A Low R_DS(ON) ensures there is minimal voltage loss when supplying high current to OTG devices.

8.3.4 Compliant with USB2.0 and USB3.0 OTG spec

The capability of TPD4S214 to supply greater than 1.2 A of current on V_BUS meets or exceeds the USB2.0 and USB3.0 OTG specification.

8.3.5 User Adjustable Current Limit From 250 mA to Beyond 1.2 A

The designer can select the over current protection level by selecting the proper R_ADJ.

8.3.6 Built-in Soft-start

The soft start feature waits 16 ms to turn on the OTG switch after all operating conditions are met.

8.3.7 Reverse Current Blocking

If V_BUS is greater than V_{OTG_IN} by 50 mV, the OTG switch is disabled in 17.5 ms.

8.3.8 Over Voltage Lock Out for V_BUS

OVLO ensures that an over voltage condition on V_BUS disables the OTG switch to protect the system.

8.3.9 Under Voltage Lock Out for V_{OTG_IN}

UVLO ensures that an under voltage condition on V_BUS disables the OTG switch to protect the system.

8.3.10 Thermal Shutdown and Short Circuit Protection

TPD4S214 has an over-temperature protection circuit to protect against system faults or improper use. The basic function of the thermal shutdown (TSD) circuit is to sense when the junction temperature has exceeded the absolute maximum rating and shut down the device until the junction temperature has cooled to a safe level. Short circuit protection prevents any damaging current demand from the system.

8.3.11 Auto Retry on any Fault; no Latching off States

In any fault condition, TPD4S214 will reassess V_BUS, V_{OTG_IN}, and thermal conditions until a safe state is reached and then enable the OTG switch, eliminating any latched off states.

8.3.12 Integrated V_BUS Detection Circuit

TPD4S214 has a V_BUS detection feature facilitating communication between the USB host and peripheral device. The use of this feature is optional.

8.3.13 Low Capacitance TVS ESD Clamp for USB2.0 High Speed Data Rate

The High Speed data lines have a capacitance less than 2 pF, supporting a bandwidth greater than 3 GHz. This easily accommodates the 480-Mbps data rate defined in the USB2.0 specification.

8.3.14 Internal 16ms Startup Delay

The built-in start up delay allows for voltages on V_BUS to reach a steady state after which a 1-μA trickle charge slowly turns on the main switch. During the inrush period, the peak inrush current will be limited to no more than the current limit set by the external resistor R_ADJ.

8.3.15 Space Saving WCSP (12-YFF) Package

The 1.69 mm × 1.39 mm (Max) WCSP package is valuable in space constrained designs.

8.3.16 Inrush Current Protection

As soon as TPD4S214 is enabled, its logic block detects the presence of any fault conditions highlighted in Table 2. In the absence of any fault condition, a counter waits for 16 ms, after which a 1-µA trickle charge slowly turns on the main switch. During the inrush period, the peak inrush current will be limited to no more than the current limit set by the external resistor R_ADJ.

8.3.17 Input Capacitor (Optional)

To limit the voltage drop on the input supply caused by transient in-rush currents when the switch turns on into a discharged load capacitor or short-circuit, a capacitor needs to be placed between V_{OTG_IN} and GND. A 10-μF ceramic capacitor, C_IN, placed close to the pins, is usually sufficient. Higher values of C_IN can be used to further reduce the voltage drop during high-current application. When switching heavy loads, it is recommended to have an input capacitor about 10 times higher than the output capacitor to avoid excessive voltage drop.

8.3.18 Output Capacitor (Optional)

Due to the integrated body diode in the NMOS switch, a C_IN greater than C_LOAD is highly recommended. A C_LOAD greater than C_IN can cause V_BUS to exceed V_{OTG_IN} when the system supply is removed. A C_IN to C_LOAD ratio of 10 to 1 is recommended for minimizing V_{OTG_IN} dip caused by inrush currents during startup.

8.3.19 Current Limit

The TPD4S214 provides current limiting protection, which is set by an external resistor connected from the ADJ pin to ground shown in Figure 18. The current limiting threshold I_OCP is set by the external resistor R_ADJ. Figure 19 shows the typical current limit for a corresponding R_ADJ value with ±1% tolerance across the operating temperature range.

Figure 18. Current Limit Diagram

Equation 1.

Where:

R_ADJ = external resistor used to set the current limit (kΩ)
I_OCP = current limit set by the external R_ADJ resistor (A)

R_ADJ is placed between the ADJ pin and ground, shown in Figure 18, providing a maximum current limit between 250 mA and 1.2 A.

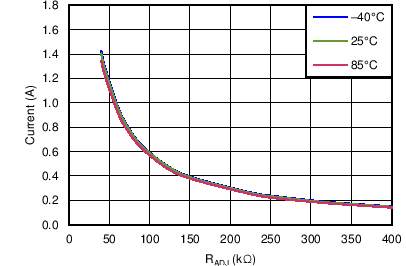

Figure 19. I_OCP versus R_ADJ

Figure 20. I_BUS Temperature Derating Curve

The temperature derating curve shown in Figure 20 graphs the line where TPD4S214 will have a Mean Time Before Failure (MTBF) of 5 years at a 100% duty cycle for a given junction temperature, T_j, and current on V_BUS, or I_BUS. MTBF of 5 years at a 100% duty cycle is equivalent to 7.5 years at a 75% duty cycle, or 10 years at a 50% duty cycle. See Equation 2 to calculate the junction temperature. If a current and junction temperature point lie below the curve on the graph then the MTBF will exceed 5 years at a 100% duty cycle, or its equivalent. If above the curve, the MTBF will be decreased.

8.3.20 Thermal Shutdown

When the device is ON, current flowing through the device will cause the device to heat up. Overheating can lead to permanent damage to the device. To prevent this, an over temperature protection has been designed into the device. Whenever the junction temperature exceeds 141ºC, the switch will turn off, thereby limiting the temperature. Once the device cools down to below 125ºC the switch will turn on if the EN is active and the V_BUS voltage is within the UVLO and OVP thresholds. While the over temperature protection in the device will not kick-in unless the die temperature reaches 141ºC, it is generally recommended that care is taken to keep the junction temperature below 125ºC. Operation of the device above 125ºC for extended periods of time can affect the long-term reliability of the part.

The junction temperature of the device can be calculated using the below formula:

Where:

Example

At 0.5 A, the continuous current power dissipation is given by:

If the ambient temperature is about 85 °C the junction temperature will be:

This implies that, at an ambient temperature of 85ºC, TPD4S214 can pass a continuous 0.5 A without sustaining damage. Conversely, the above calculation can also be used to calculate the total continuous current the TPD4S214 can handle at any given temperature.

The MTBF can be estimated by examining Figure 20. Locating 0.5 A and 91.7 °C, the point is below the curve. This implies that the MTBF for this calculation is longer than 5 years at a 100% duty cycle. If the duty cycle is 50% then MTBF exceeds 10 years.

8.3.21 V_BUS Detection

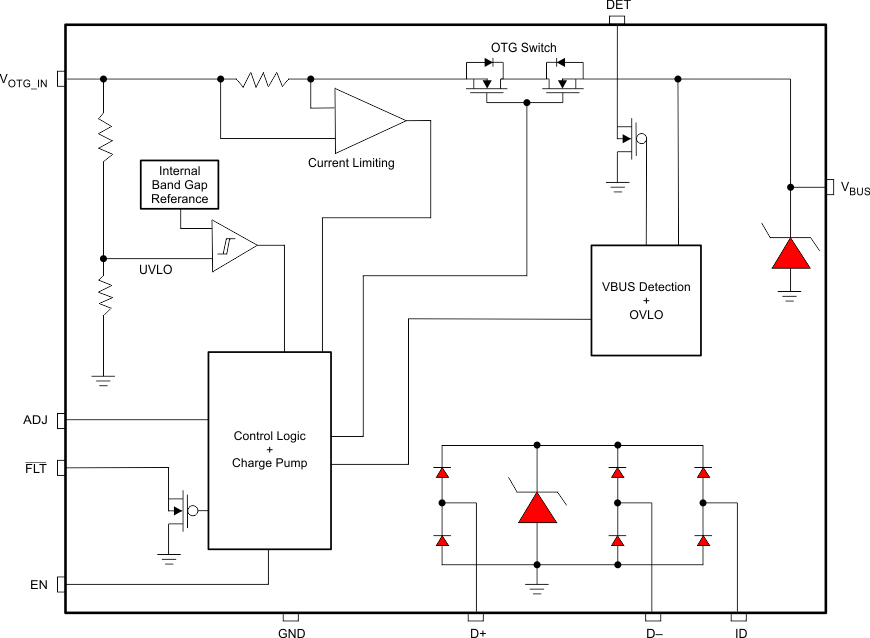

There are several important protocols defined in [OTG and EH Supplement] that governs communication between Targeted Hosts (A-device) and USB peripherals (B-device). Communication between host and peripheral is usually done on the ID pin only. In the case when two OTG devices that could both act as either host or peripheral are connected, measuring voltage level on V_BUS will aid in the handshaking process. If an embedded host instead of a USB peripheral is connected to the OTG device, OTG charging would not be required and the system’s OTG source should remain off to conserve power. The TPD4S214 V_BUS detection block aids power conservation and is powered from V_BUS. See Functional Block Diagram. The DET pin is an open drain PMOS output with default state low.

In the event when an A-plug is attached, the system detects ID pin as FALSE, in which case ID pin resistance to ground is less than 10 Ω. For a B-plug, the system detects ID pin as TRUE and ID pin resistance to ground is greater than 100 kΩ. For the system to power a USB device through OTG switch once it is connected, voltage on V_BUS should remain below V_{BUS_VALID MIN} within T_{A_VBUS_ATT} of the ID pin becoming FALSE. After this event, the system confirms that the USB device requires power and enables both TPD4S214 and OTG source. However, if V_{BUS_VALID} is detected on V_BUS within T_{A_VBUS_ATT} of the ID pin becoming FALSE, there is either a system error or the device connected does not require charging. OTG source remains switched off and the entire sequence would restart when the system detects another FALSE on the ID pin.

X = Don’t Care, H = Signal High, and L = Signal Low

Figure 21 and Figure 22 shows suggested system level timing diagrams for detecting V_BUS according to [OTG and EH Supplement]. Figure 28 shows the application diagram. In Figure 21, DET pin remains low after ID pin becomes FALSE, indicating there is not an active voltage source on V_BUS. The USB controller proceeds to turn on OTG 5-V source and the TPD4S214 respectively; this sequence is recommended because TPD4S214 is powered through the OTG source. After a period of t_ON, current starts to flow through the OTG switch and V_BUS is ramped to the voltage level of V_{OTG_IN}.

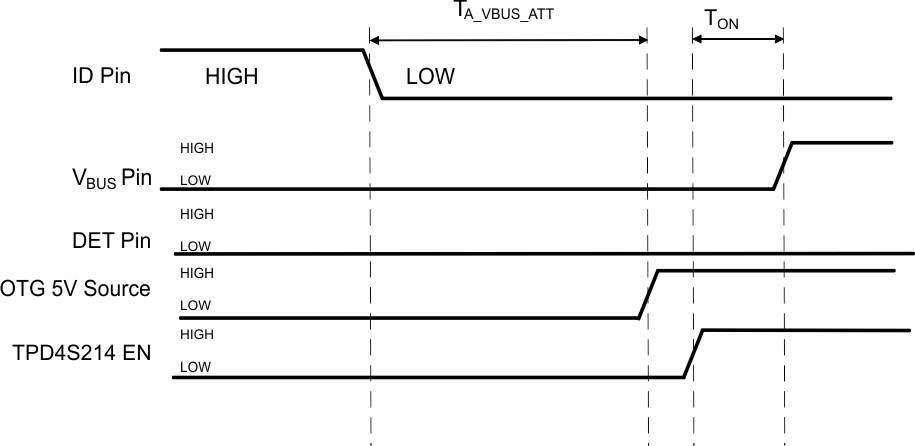

Figure 21. Timing Diagram for Valid USB Device

In Figure 22, DET pin toggles high after an active voltage is detected on V_BUS within T_{A_VBUS_ATT}. This indicates that the USB device attached is not suitable for OTG charging and both OTG 5-V source and TPD4S214 remain off.

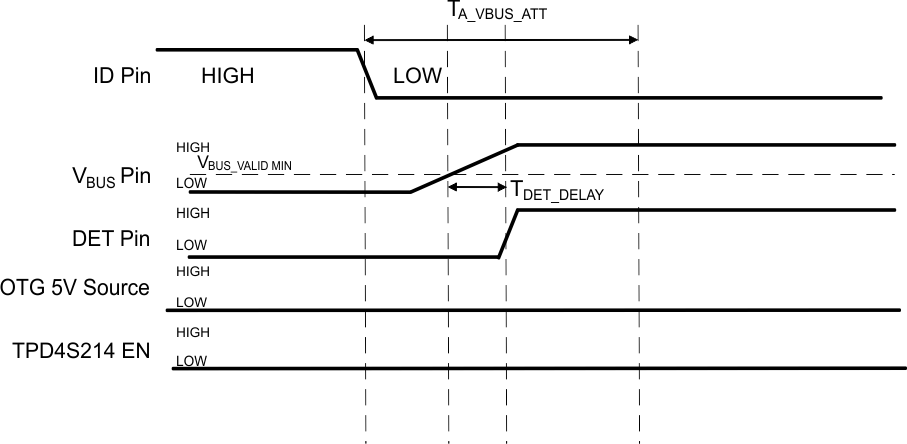

Figure 22. System Level Timing Diagram for invalid USB Device

8.3.22 Test Configuration

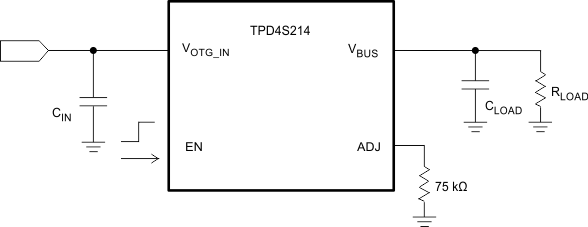

Figure 23. Inrush Current Test Configuration.

Enable is toggled from low to high. See the Application Information section for C_IN and C_LOAD value recommendations.

Table 2. Device Operation
