8.2 Typical Application

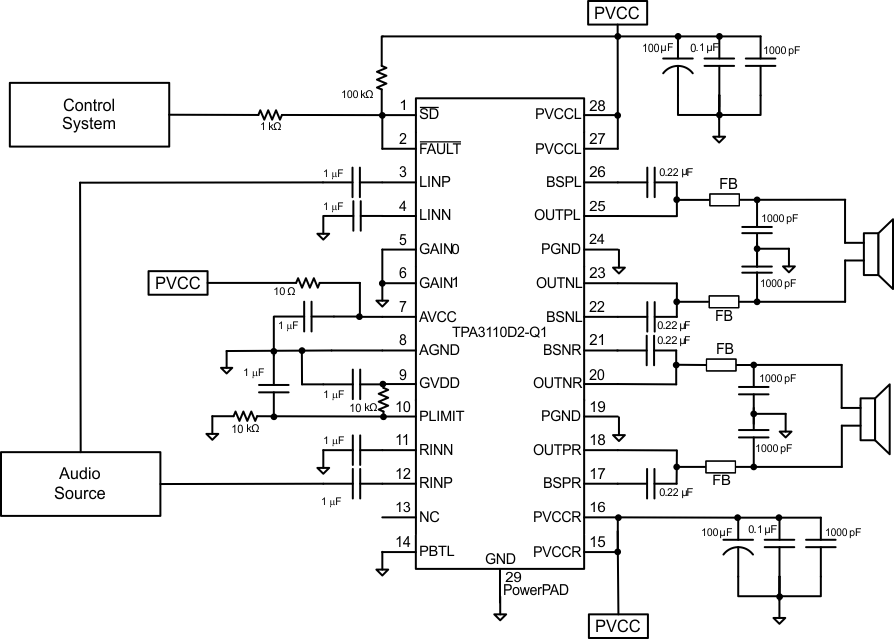

Figure 36. Stereo Class-D Amplifier With BTL Output and Single-Ended Inputs With Power Limiting
1. A 100-kΩ resistor is needed if the PVCC slew rate is more than 10 V/ms.

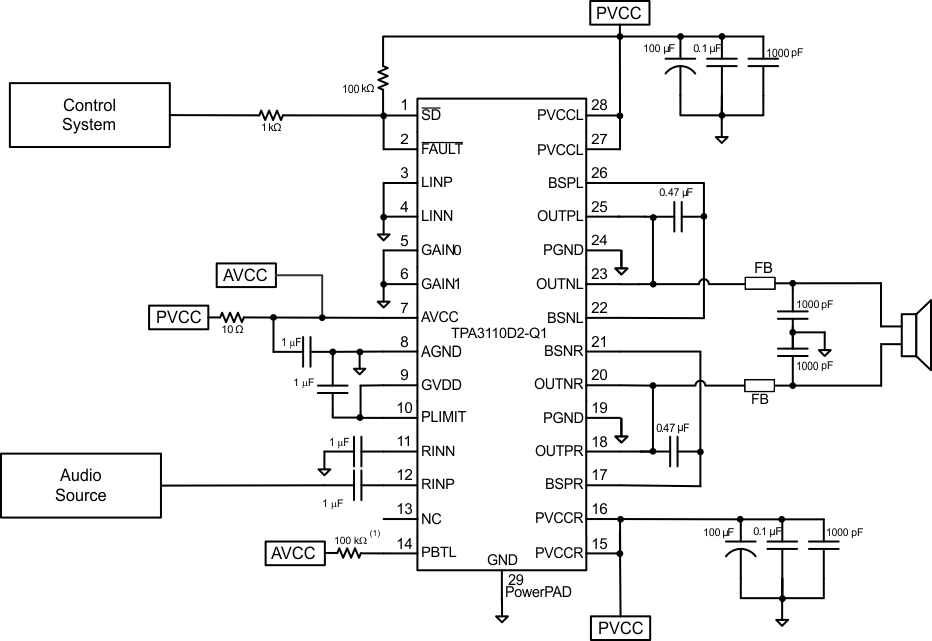

Figure 37. Stereo Class-D Amplifier With PBTL Output and Single-Ended Input
