5 Pin Configuration and Functions
RSW Package
10-PIN UQFN
Top View

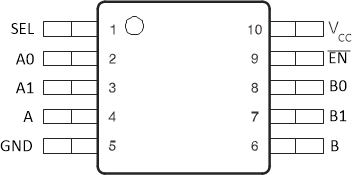

DGS Package
10-PIN VSSOP
Top View
Pin Functions
| PIN | I/O | DESCRIPTION | ||
|---|---|---|---|---|
| NAME | UQFN | VSSOP | ||
| A0 | 1 | 2 | I/O | signal path port 0 |
| B0 | 7 | 8 | I/O | |
| A | 3 | 4 | I/O | Common signal path |
| B | 5 | 6 | I/O | |
| A1 | 2 | 3 | I/O | signal path port 1 |
| B1 | 6 | 7 | I/O | |
| EN | 8 | 9 | I | EN = 0 Enable
EN = 1 Disable |
| SEL | 10 | 1 | I | Select input:
SEL = 0 A,B to A0,B0 SEL = 1 A,B to A1,B1 |
| GND | 4 | 5 | — | Ground |
| VCC | 9 | 10 | — | Voltage supply |
