8.11 Injection Current Control

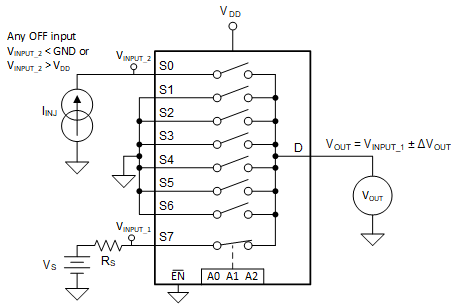

Injection current is measured at the change in output of the enabled signal path when a current is injected into a disabled signal path. Figure 8-11 shows the setup used to measure injection current control.
Figure 8-11 Injection Current
Measurement Setup
