6.1.9 Crosstalk
Crosstalk is defined as the ratio of the signal at the drain pin (D) of a different channel, when a signal is applied at the source pin (Sx) of an on-channel. Figure 6-9 shows the setup used to measure, and the equation used to compute crosstalk.

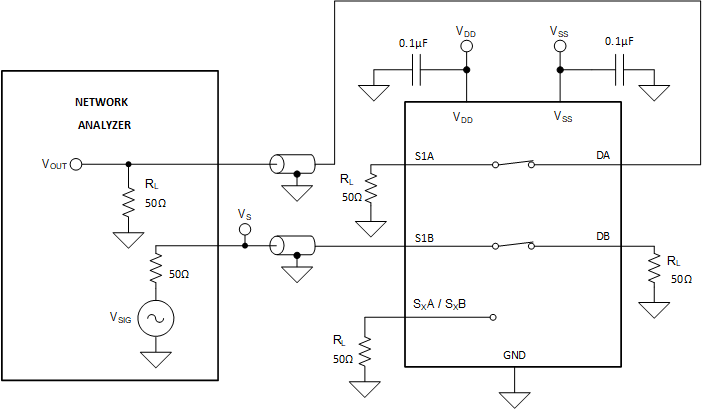

Figure 6-9 Crosstalk Measurement SetupEquation 2.
