8.3.1 Field Direction Definition
The TMAG5123-Q1 is sensitive to both south and north poles in the same plane as the die as shown Figure 8-2.

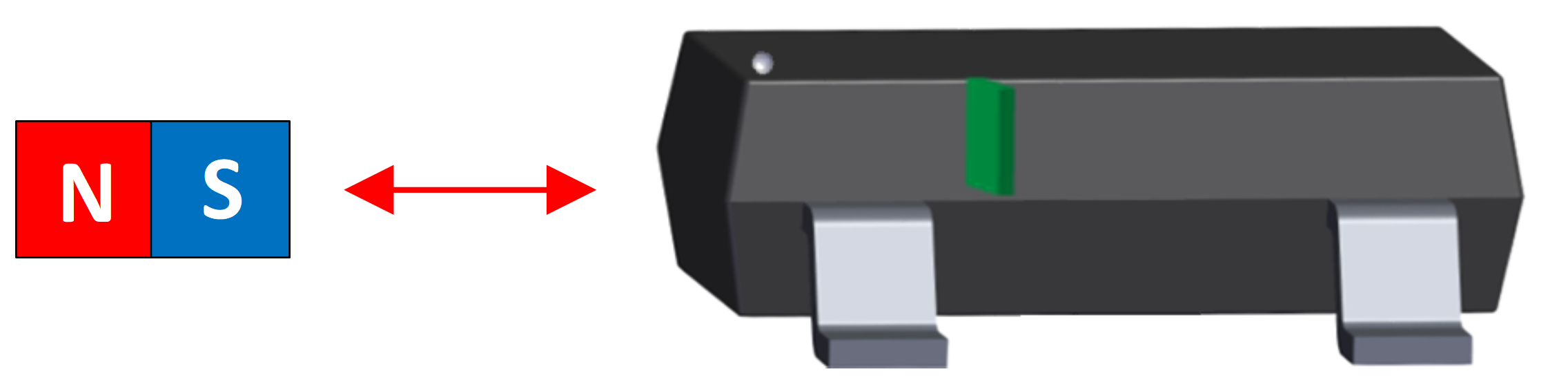

Figure 8-2 Field Direction Definition
