9.1 Application Information
Figure 28 shows the TLVH431B-EP used in a 3.3-V isolated flyback supply. Output voltage VO can be as low as reference voltage VREF (1.24 V ± 1%). The output of the regulator, plus the forward voltage drop of the optocoupler LED (1.24 + 1.4 = 2.64 V), determine the minimum voltage that can be regulated in an isolated supply configuration. Regulated voltage as low as 2.7 Vdc is possible in the topology shown in Figure 28.
The TLVH431B-EP family of devices are prevalent in these applications, being designers go to choice for secondary side regulation. Due to this prevalence, this section explains operation and design in both states of TLVH431B-EP that this application will see, open loop (Comparator + VREF) and closed loop (Shunt Regulator).
Further information about system stability and using a TLVH431B-EP device for compensation see Compensation Design With TL431 for UCC28600, SLUA671.

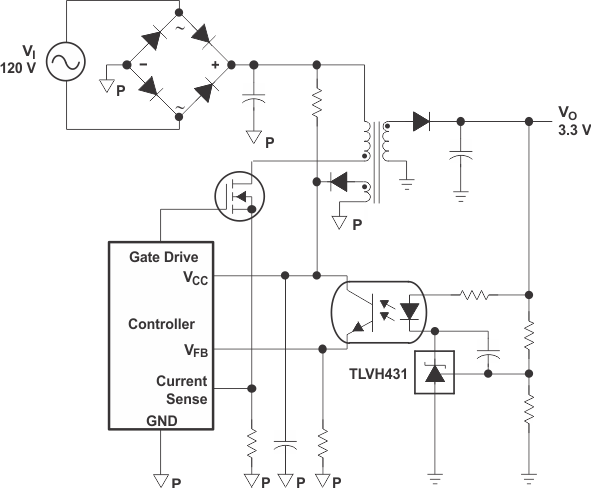

Figure 28. Flyback With Isolation Using TLVH431B-EP
as Voltage Reference and Error Amplifier
