7.2.3.3 Application Curve
Figure 7-9 shows the simulated results of an oscillator using the following component values:
- R1 = R2 = R3 = R4 = 100kΩ
- C1 = 100pF, CL = 20pF
- V+ = 5V, V– = GND
- Cstray (not shown) from VA to GND = 10pF

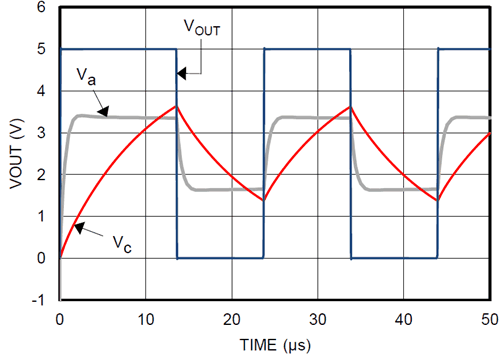

Figure 7-9 Square-Wave Oscillator Output Waveform
