9.1.1 VPULLUP to a Voltage Other Than VDD
The outputs are often tied to VDD through a resistor. However, some applications may require the outputs to be pulled up to a higher or lower voltage than VDD to correctly interface with the input terminals of other devices.

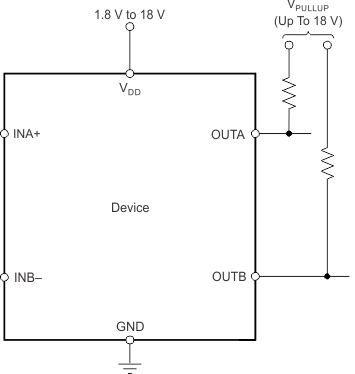

Figure 16. Interfacing to Voltages Other Than VDD
